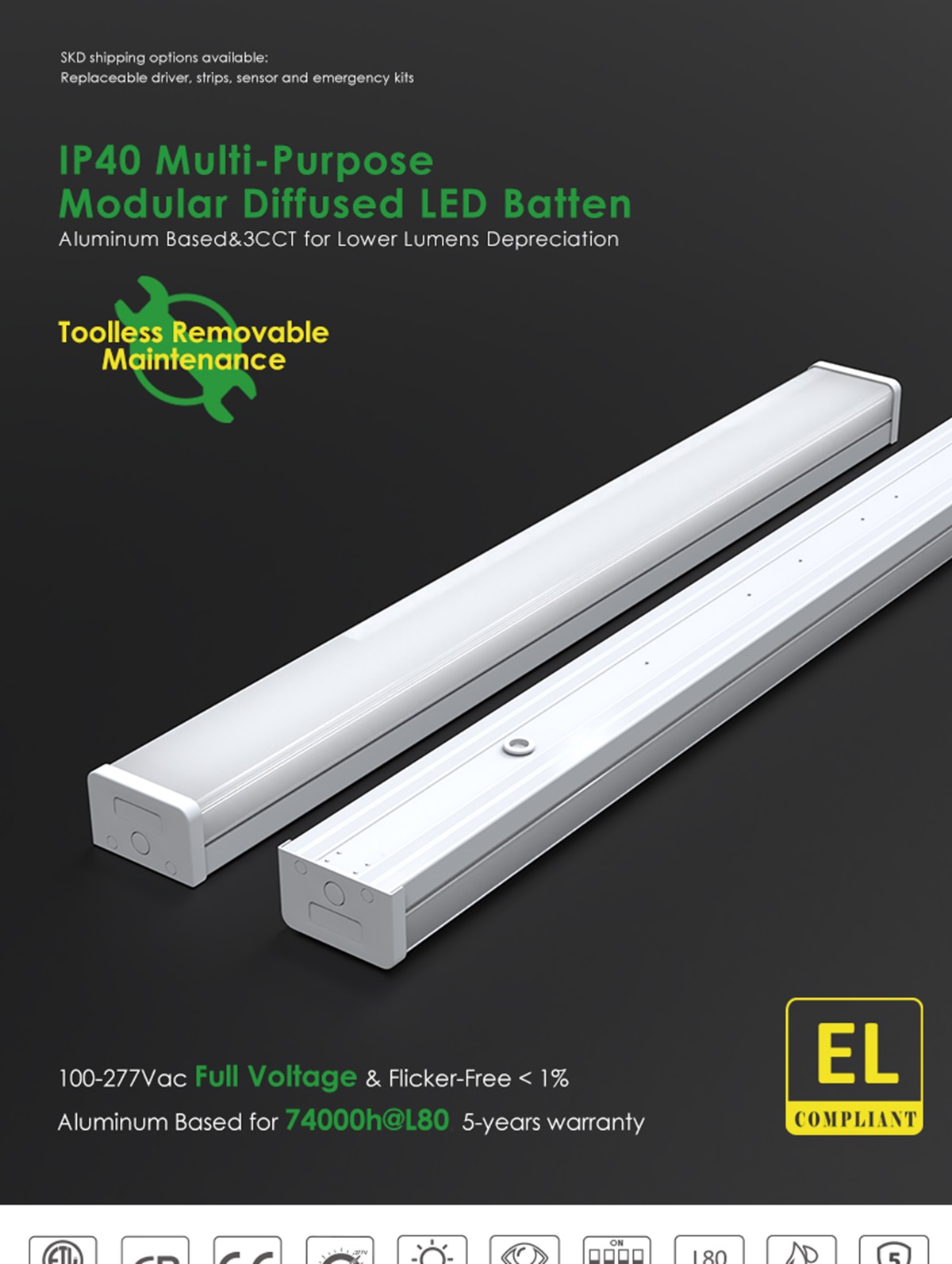

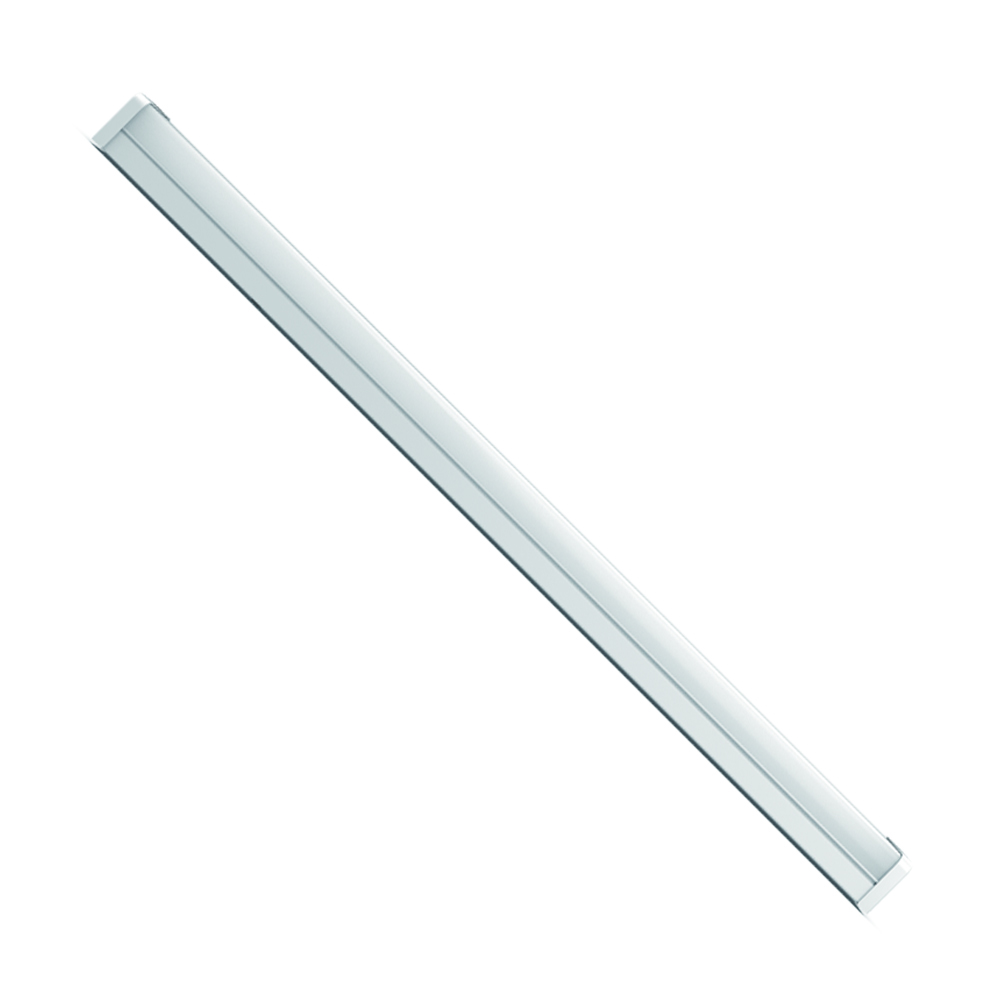

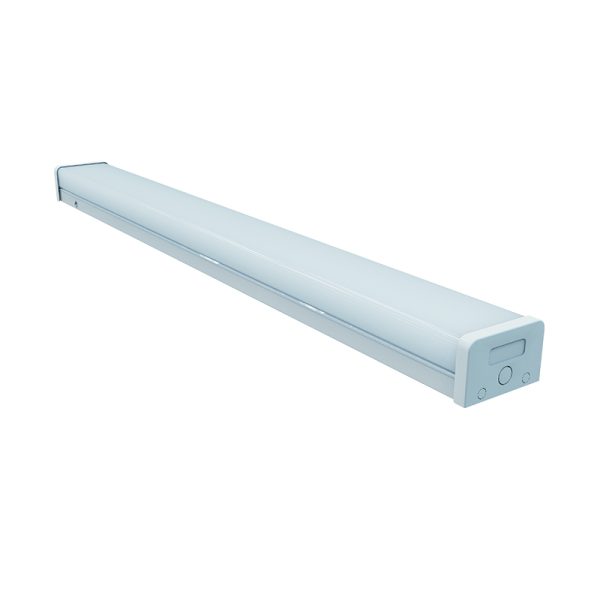

Best Partner For Weatherproof Splice System IP40 Full Voltage LED Battens Batman B1

Key Features and Benefits

  • Unique design for No shadow without light lens
  • 118mm width, instead of T5/T8 fluorescent double-tubes
  • IP40 protection, effectively prevent mosquitoes from entering
  • PA14/923 Terminal blocks, series connection according to project needs

FANXSTAR LED Batten Fixtures Batman B1GU Specification

LED Batten Specifications data with 600mm length

  Version Item No. Description MM=Color temp. Luminous flux
□ Normal B1-2FT20-MMK-N 2’ Diffused LED Batten light,

Voltage100-277V 50/60Hz,

Power 20W, 80CRI, 20-65K

LED Qty 90pcs

 2700-6500K 120 lm/W

LED Batten Specifications data with 1200mm length

  Version Item No. Description MM=Color temp. Luminous flux
□ Normal B1-4FT40-MMK-N 4’ Diffused LED Batten light,

Voltage100-277V 50/60Hz,

Power 40W, 80CRI, 20-65K

LED Qty 180pcs

 2700-6500K 120 lm/W

LED Batten Specifications data with 1500mm length

  Version Item No. Description MM=Color temp. Luminous flux
□ Normal B1-5FT60-MMK-N 5’ Diffused LED Batten light,

Voltage100-277V 50/60Hz,

Power 60W, 80CRI, 20-65K

LED Qty 220pcs

 2700-6500K 120 lm/W
