| Item | Part Number | B1-2FT20-MMK-S | B1-4FT40-MMK-S | B1-5FT60-MMK-S |

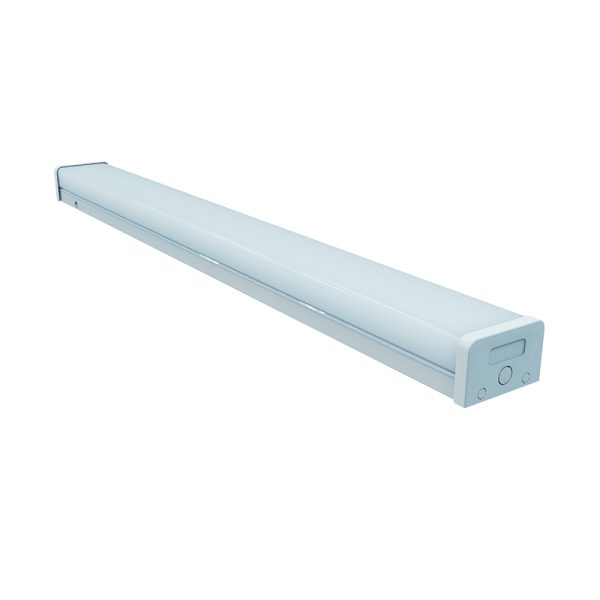

| Description | Dual PD build-in Dimmable Microwave Sensor Batten | |||
| Working | Mode of Operation | 0-10V/ 10VPWM | ||
| Input | Voltage&Frequency | 220-240Vac, 50/60Hz | ||

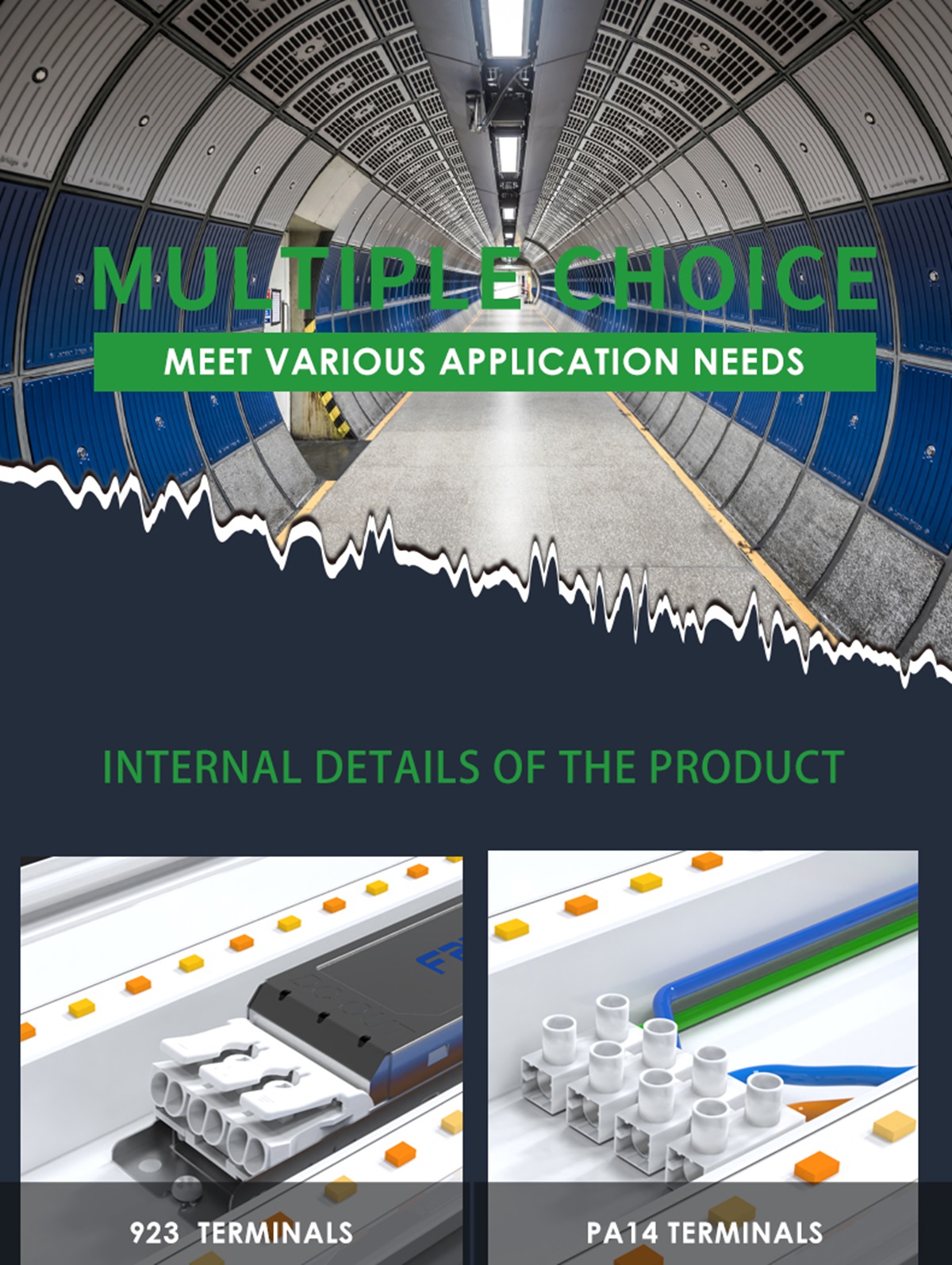

| Wiring Connection | PA14/PA16/923 Terminal blocks for Series connection | |||
| Output | Light Source | High lumens SMD2835 | ||
| Color Temperature | MM=27-65 stands for 2700-6500K | |||
| Luminous Flux | 120lm/w±10% | |||
| Power Consumption | 20W | 40W | 60W | |
| Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | ||
| Multimode | On/off, Brightness Contro0 | |||
| Physical | Construction | Diffuser – high transmission opal polycarbonate, chassis – polycarbonate | ||
| Mounting | Surface mounted – ceiling/wall/suspend | |||
| Colour | White RAL9010 | |||
| Dimensions L x W x H(mm) | 600x118x72 | 1200x118x72 | 1500x118x72 | |
| IP/IK Rating | IP40 & IK08 | |||
| Weight | 1.5kg | 2.4kg | 2.9kg | |
| Warranty | 5 years on product | |||
| Environment | Operating Temperature | -30°to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CE/UKCA/RCM | ||
| Accessories | Dimmable Sensor | P/N: B1S: MS001E/MS011/MS011E | ||
| Remote Control | MR003 or MR004 | |||
