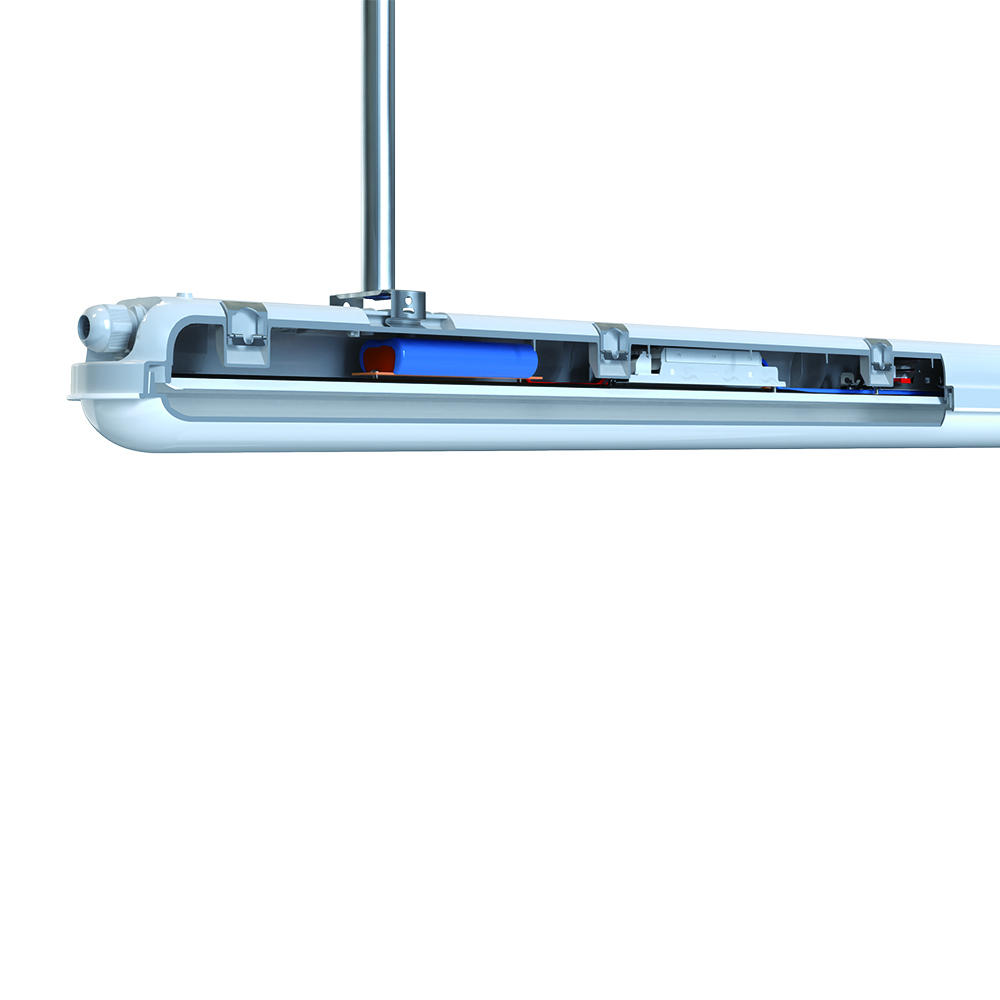

Tri Proof luminaire 0.01-100% Professional Dimming Waterproof Light Trilamp A4

Colour temperature 2,700-6,500 K
Standard Colour rendering index Ra80, Ra90 as options
Flexible installation through sliding mounting bracket. Ideal for luminaire replacement
Φ5-2.5㎡ Through-wiring as standard for further luminaires
Mounting Height: Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted)

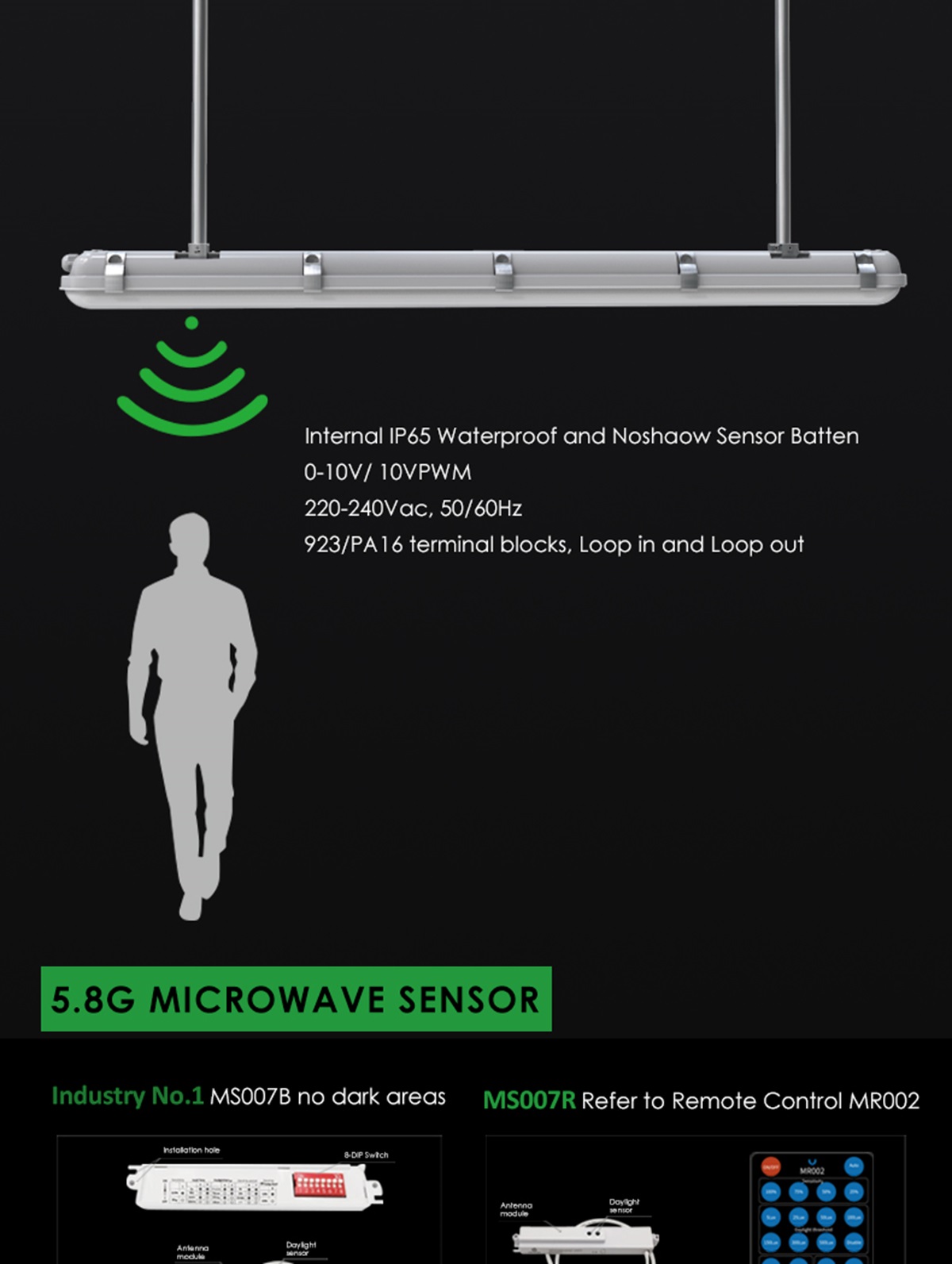

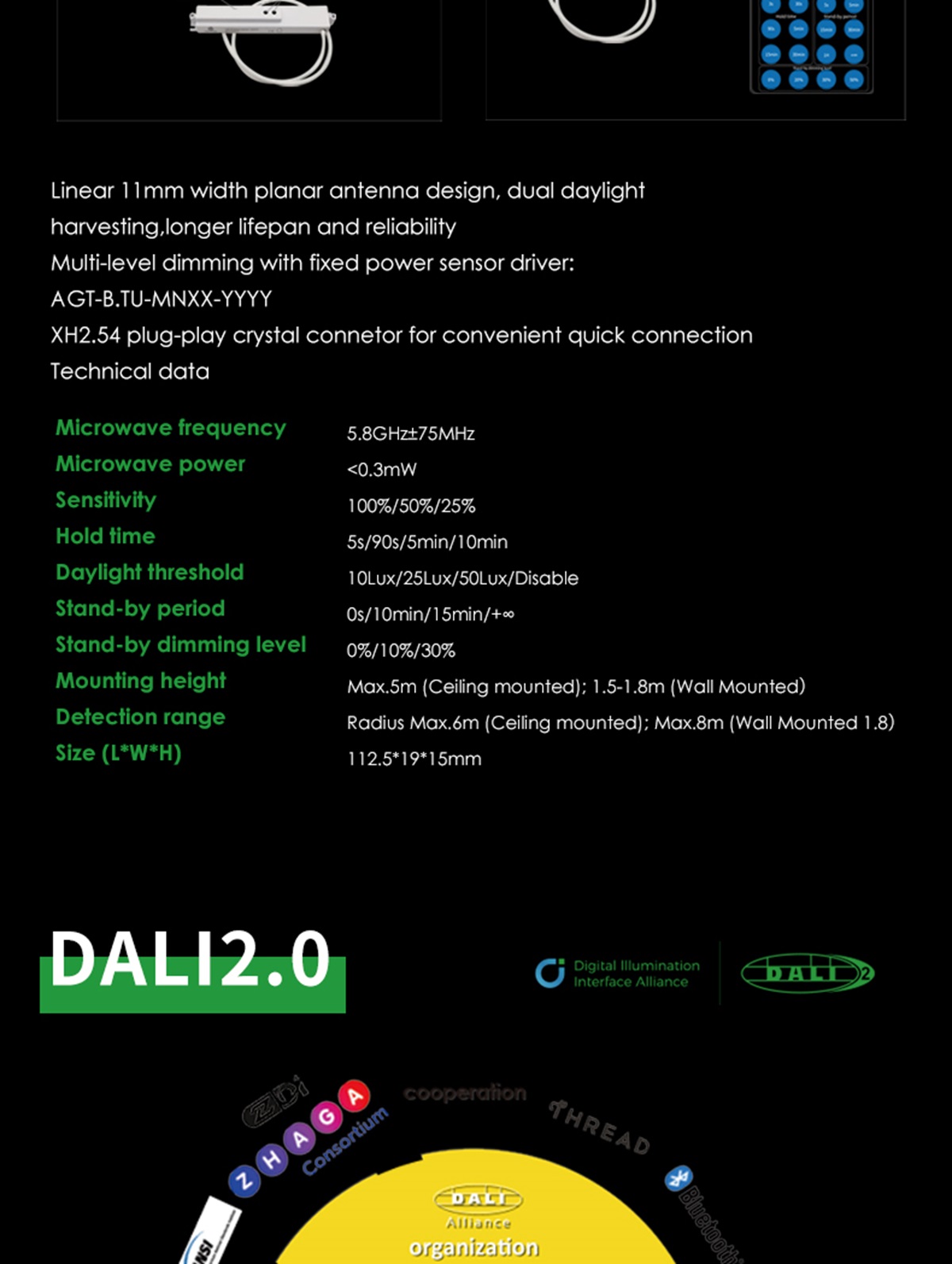

0 5.8G Microwave & PIR Sensor as Opitons

Item	Part Number	A4-2FT20-MMK-DA		A4-4FT40-MMK-DA	A4-5FT60-MMK-DA
	Description	Professional Dimming LED Weatherproof Batten
Working	Mode of Operation	DALI2.0, 0.01-100% Dimming
Input	Voltage&Frequency	220-240Vac, 50/60Hz

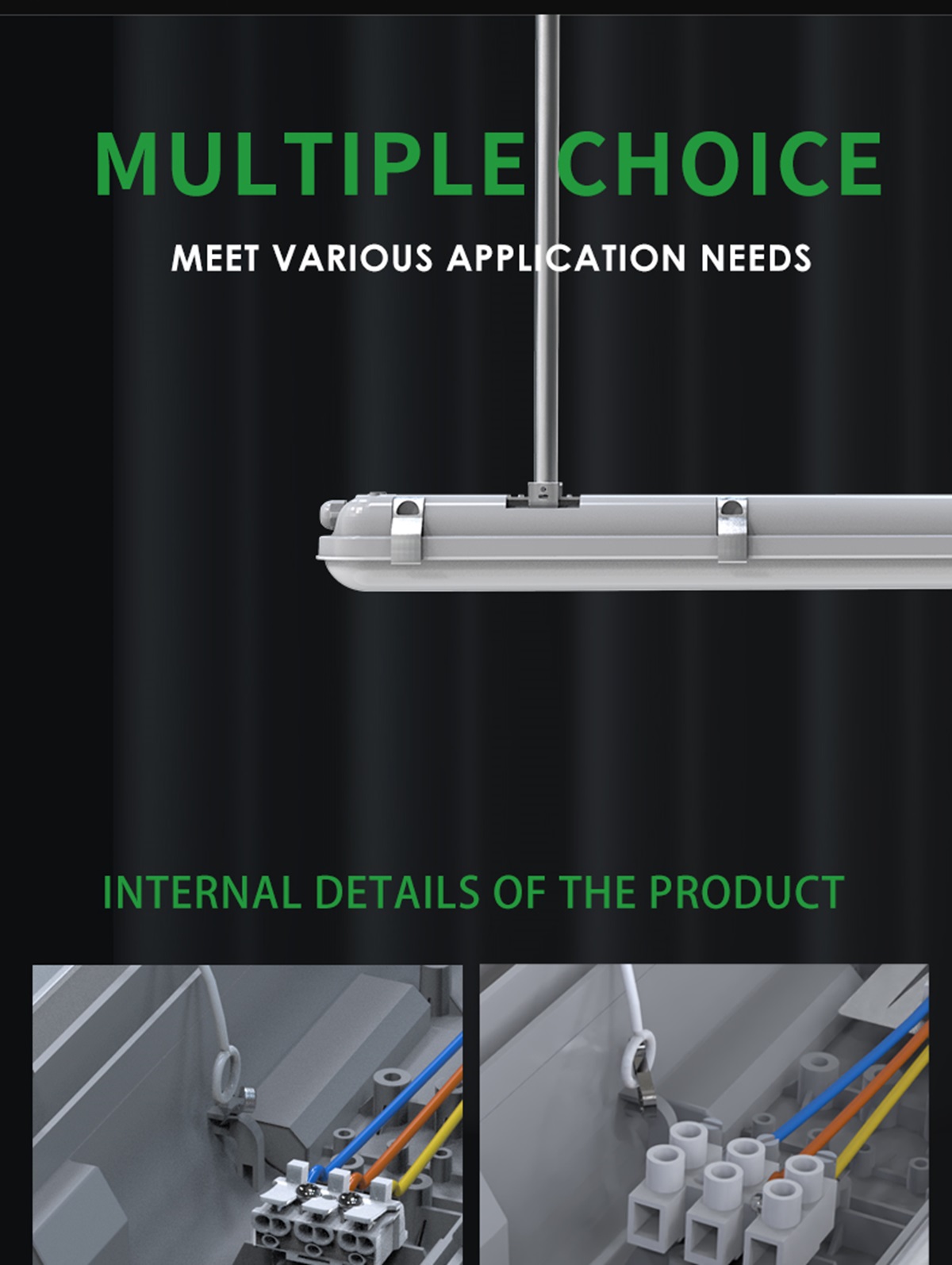

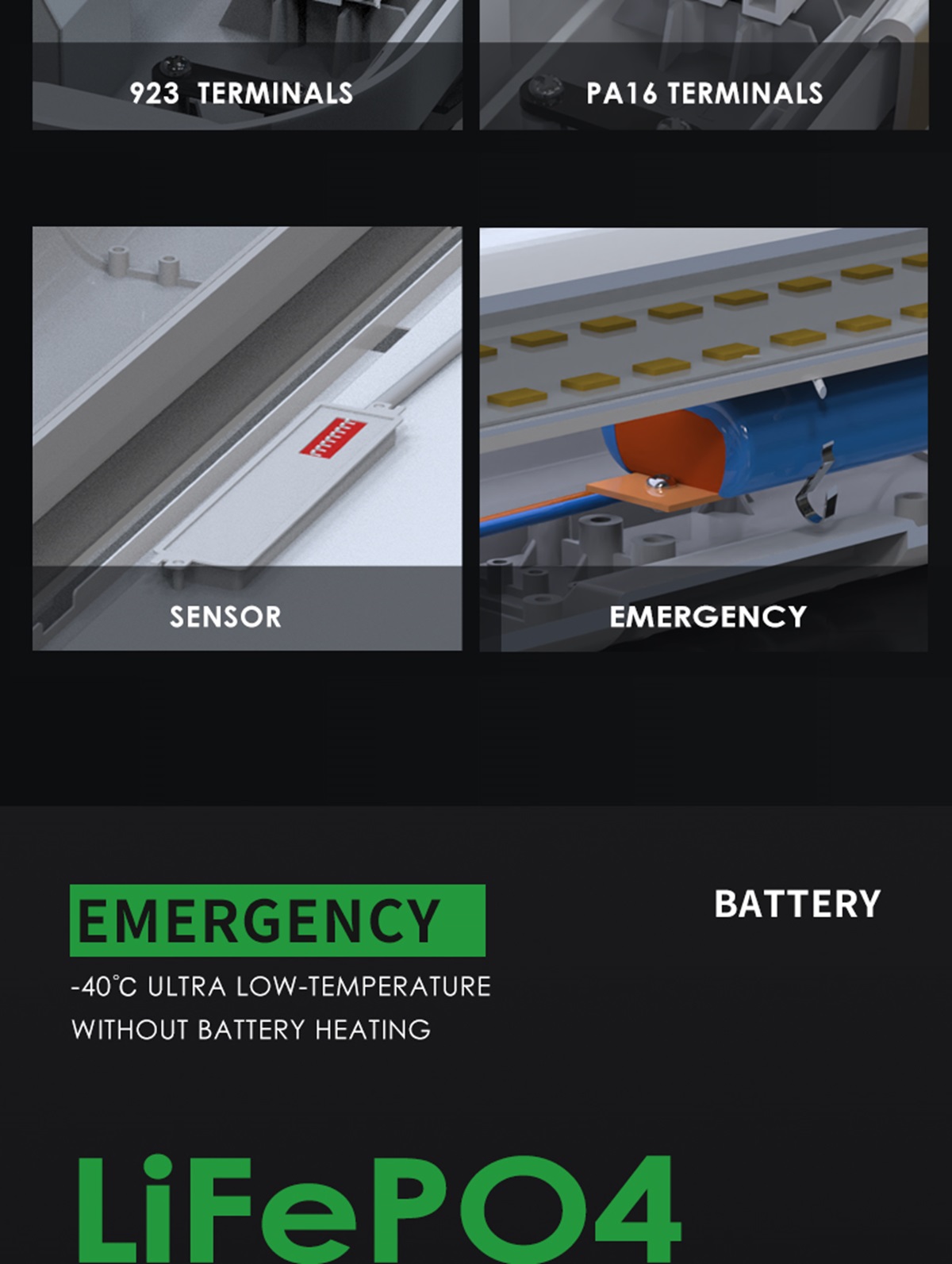

	Wiring Connection	923 terminal blocks, Loop in and Loop out
Output	Light Source	High lumens SMD2835
	Color Temperature	MM=27-65 stands for 2700-6500K
	Luminous Flux	140lm/w±10%
	Power Consumption	20W		40W	60W
Controls	Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
	Multimode	DALI2.0 Sensor, Brightness Control, 0-10V Dimmable as options
Physical	Construction	Diffuser – high transmission opal polycarbonate, chassis -polycarbonate
	Mounting	Surface mounted – ceiling / wall /suspend
	Colour	Gray RAL7035
	Dimensions L x W x H(mm)	600x95x82	1200x95x82		1500x95x82
	IP/IK Rating	IP65 & IK10
	Weight	1.0kg	2.0kg			2.6kg
	Warranty	5 years on product
Environment	Operating Temperature	-30° to 50°C
	Relative Humidity	-10 to 95%
Compliance	Standards	CE/UKCA/RCM
Accessories	Dimming Sensor	P/N: A4-DAS: DA9033A
	Remote Control	NON
