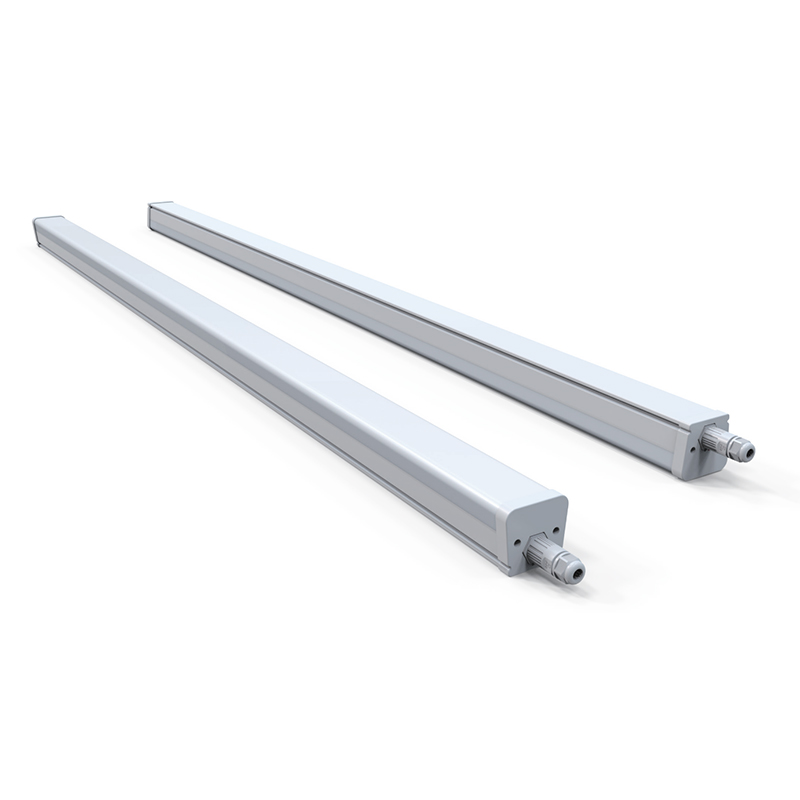

Tool-free & End to End Fast Connection IP65&IK08 Linkable LED Waterproof Batten Trilamp A16

Key Features and Benefits

  • Extra High Output Lumens 140Lm/w
  • 4FT-36W/pc Connect up to 20 strips (230V)
  • wattage per run of connected fixtures is 500W

FANXSTAR LED Tri-proof luminaires Trilamp A16 Specification

LED Tri-proof luminaires Specifications data with 600mm length

  Version Item No. Description MM=Color temp. Luminous flux
□ Extra A16-2FT18-MMK-X 2’ IP65 Waterproof Linkable Batten, Voltage 200-240V 50/60Hz,

Power 18W, 80CRI, 27-65K

LED Qty 96pcs, varies by driver

 2700-6500K 140 lm/W

 LED Tri-proof luminaires Specifications data with 1200mm length

  Version Item No. Description MM=Color temp. Luminous flux
□ Extra A16-4FT36-MMK-X 4’ IP65 Waterproof Linkable Batten, Voltage 200-240V 50/60Hz,

Power 36W, 80CRI, 27-65K

LED Qty 198pcs, varies by driver

 2700-6500K 140 lm/W

LED Tri-proof luminaires Specifications data with 1500mm length

  Version Item No. Description MM=Color temp. Luminous flux
□ Extra A16-5FT54-MMK-X 5’ IP65 Waterproof Linkable Batten, Voltage 200-240V 50/60Hz,

Power 54W, 80CRI, 27-65K

LED Qty 288pcs, varies by driver

 2700-6500K 140 lm/W
