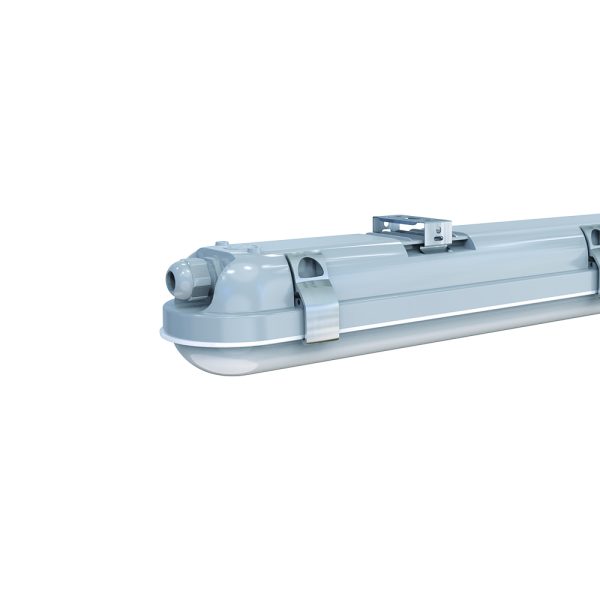

Full Voltage&Flicker-Free Tri Proof luminaire LED IP65&IK10 Weatherproof Batten Trilamp A4

Key Features and Benefits

  • 100-277Vac Full Voltage & Flicker-Free < 1%
  • Standard Colour rendering index Ra80 Ra90 as options

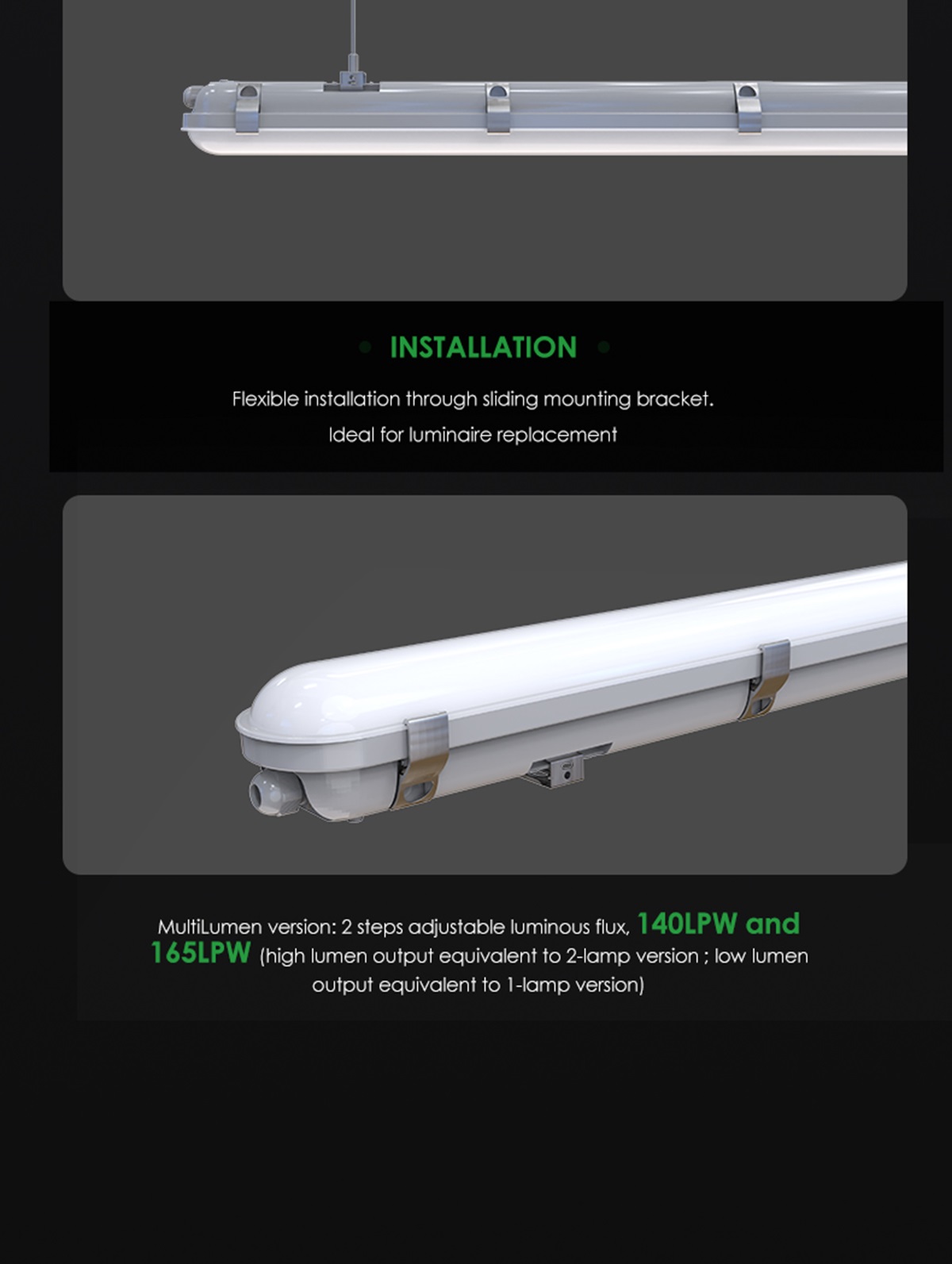

  • Flexible installation through sliding mounting bracket. Ideal for luminaire replacement
  • Φ5-2.5㎡ Through-wiring as standard for further luminaires
  • Mounting Height: Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted)

FANXSTAR LED Tri-proof luminaires Trilamp A4 GU Specification

LED Tri Proof luminaires Specifications data with 600mm length

  Version Item No. Description MM=Color temp. Luminous flux
□ Extra A4-2FT20-MMK-X 2’ LED Weatherproof Batten light,

Voltage100-277V 50/60Hz,

Power 20W, 80CRI, 27-65K

LED Qty 171pcs

 2700-6500K 140 lm/W

 LED Tri Proof luminaires Specifications data with 1200mm length

  Version Item No. Description MM=Color temp. Luminous flux
□ Extra A4-4FT40-MMK-X 4’ LED Weatherproof Batten light,

Voltage100-277V 50/60Hz,

Power 40W, 80CRI, 27-65K

LED Qty 266pcs

 2700-6500K 140 lm/W

LED Tri Proof luminaires Specifications data with 1500mm length

  Version Item No. Description MM=Color temp. Luminous flux
□ Extra A4-5FT60-MMK-X 5’ LED Weatherproof Batten light,

Voltage100-277V 50/60Hz,

Power 65W, 80CRI, 27-65K

LED Qty 464pcs

 2700-6500K 140 lm/W

 LED Tri Proof luminaires Specifications data with 2400mm length

  Version Item No. Description MM=Color temp. Luminous flux
□ Extra A4-8FT65-MMK-X 8’ LED Weatherproof Batten light,

Voltage100-277V 50/60Hz,

Power 65W, 80CRI, 27-65K

LED Qty 464pcs

 2700-6500K 140 lm/W

Key Features and Benefits

  • 100-277Vac Full Voltage & Flicker-Free < 1%
  • Standard Colour rendering index Ra80 Ra90 as options
  • Flexible installation through sliding mounting bracket. Ideal for luminaire replacement
  • Φ5-2.5㎡ Through-wiring as standard for further luminaires
  • Mounting Height: Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted)
