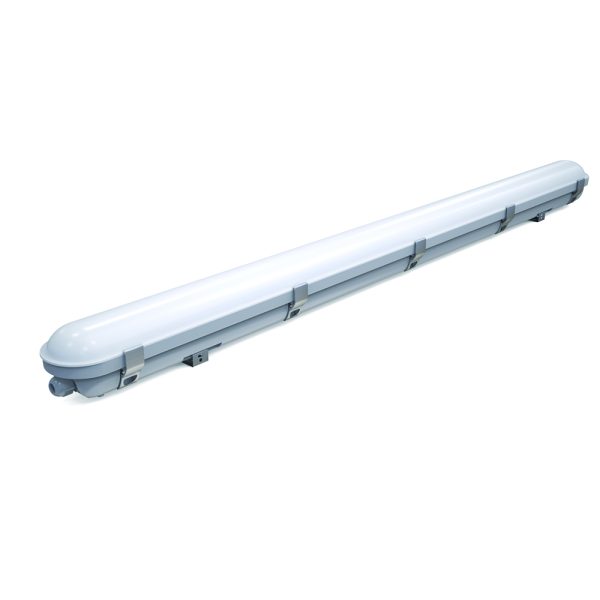

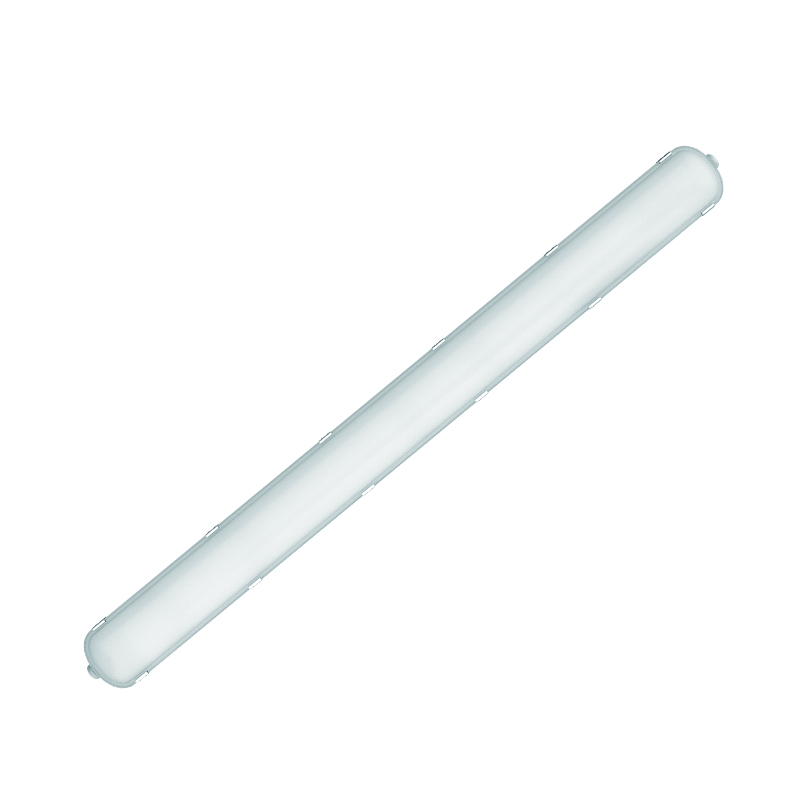

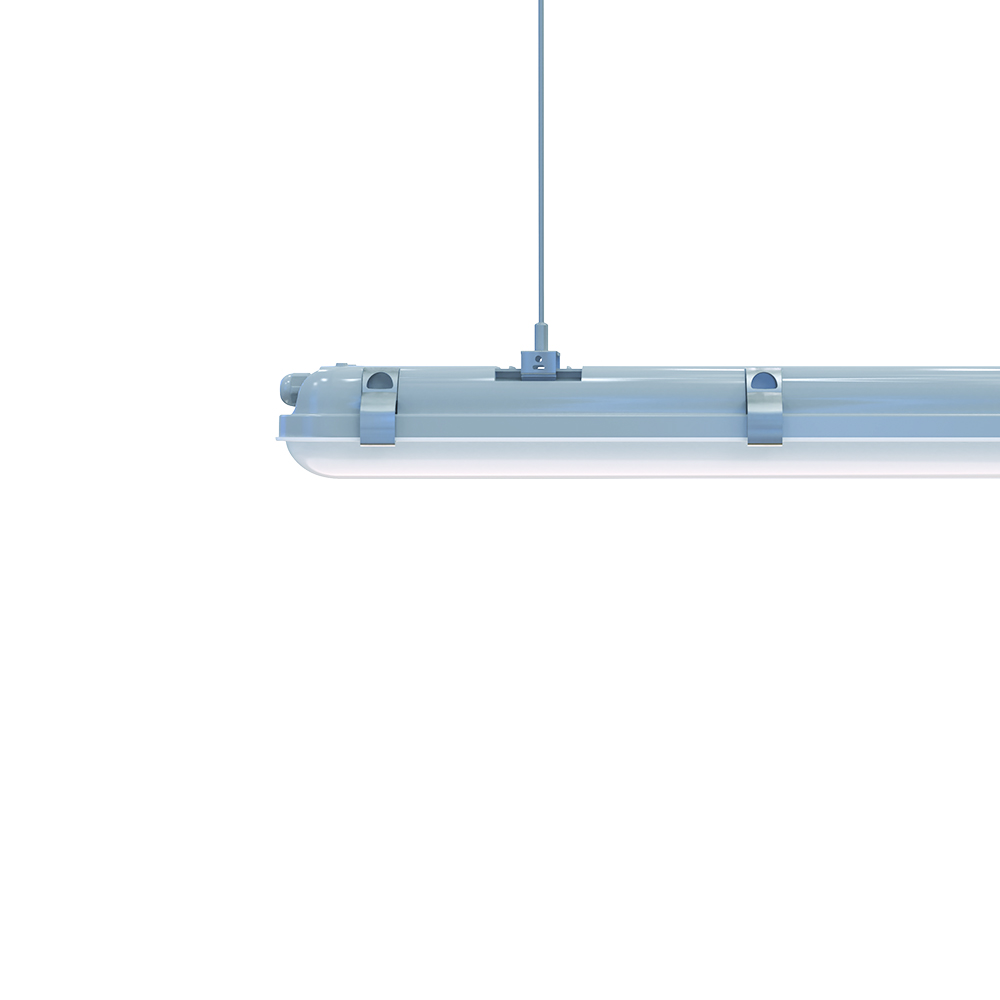

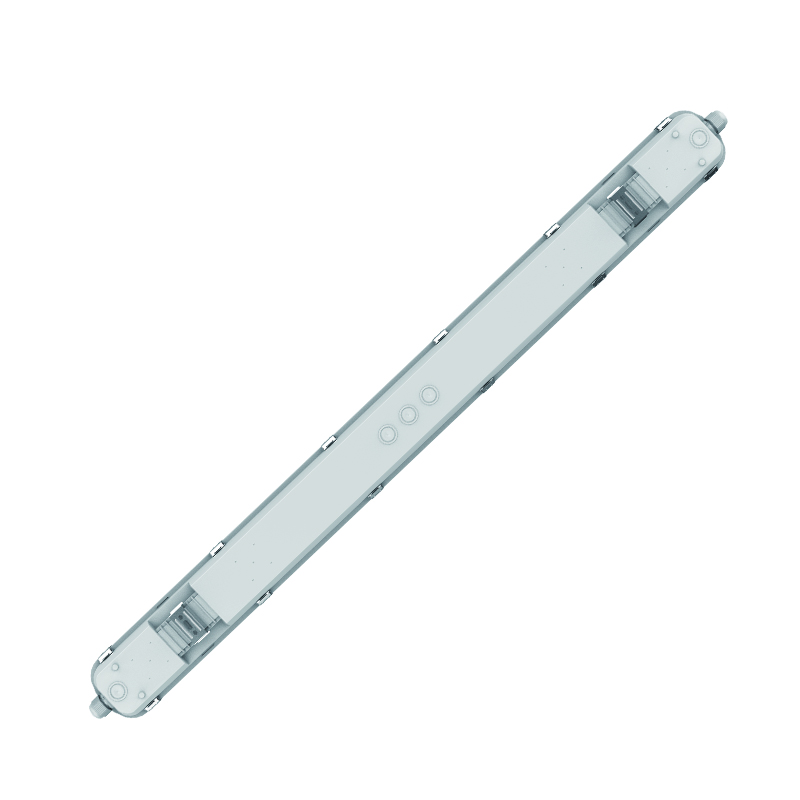

Super Terminator of fluorescent 2-tubes Enhanced IP65&IK10 Weatherproof Vapor Tight Light Trilamp A4

Key Features and Benefits

0/1-10V Consistent dimming to 60 Meters
Extra Output Lumens: 140lm/W
Dual DIP-Switcher for CCT & Power
Full voltage: 100-277Vac

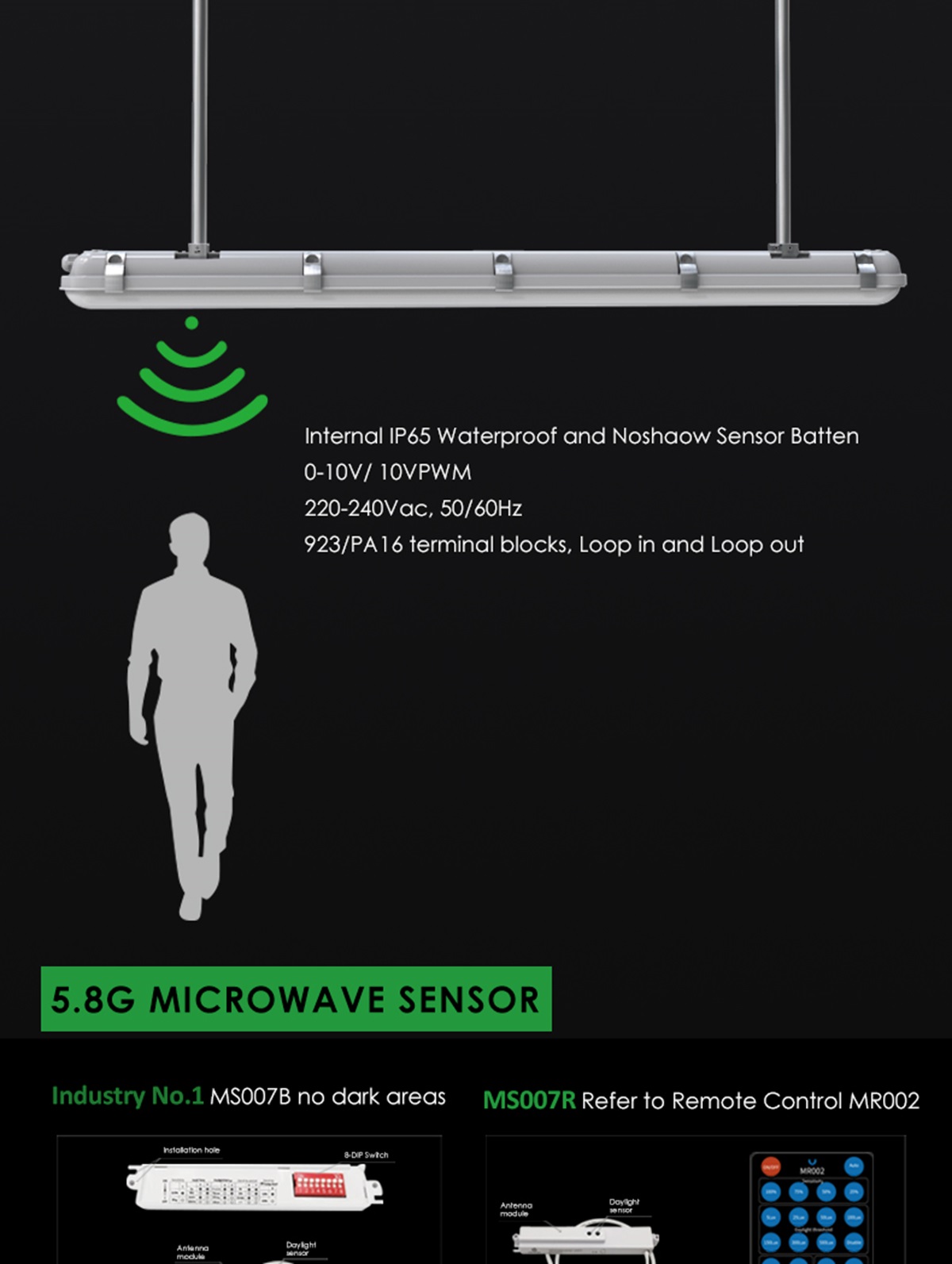

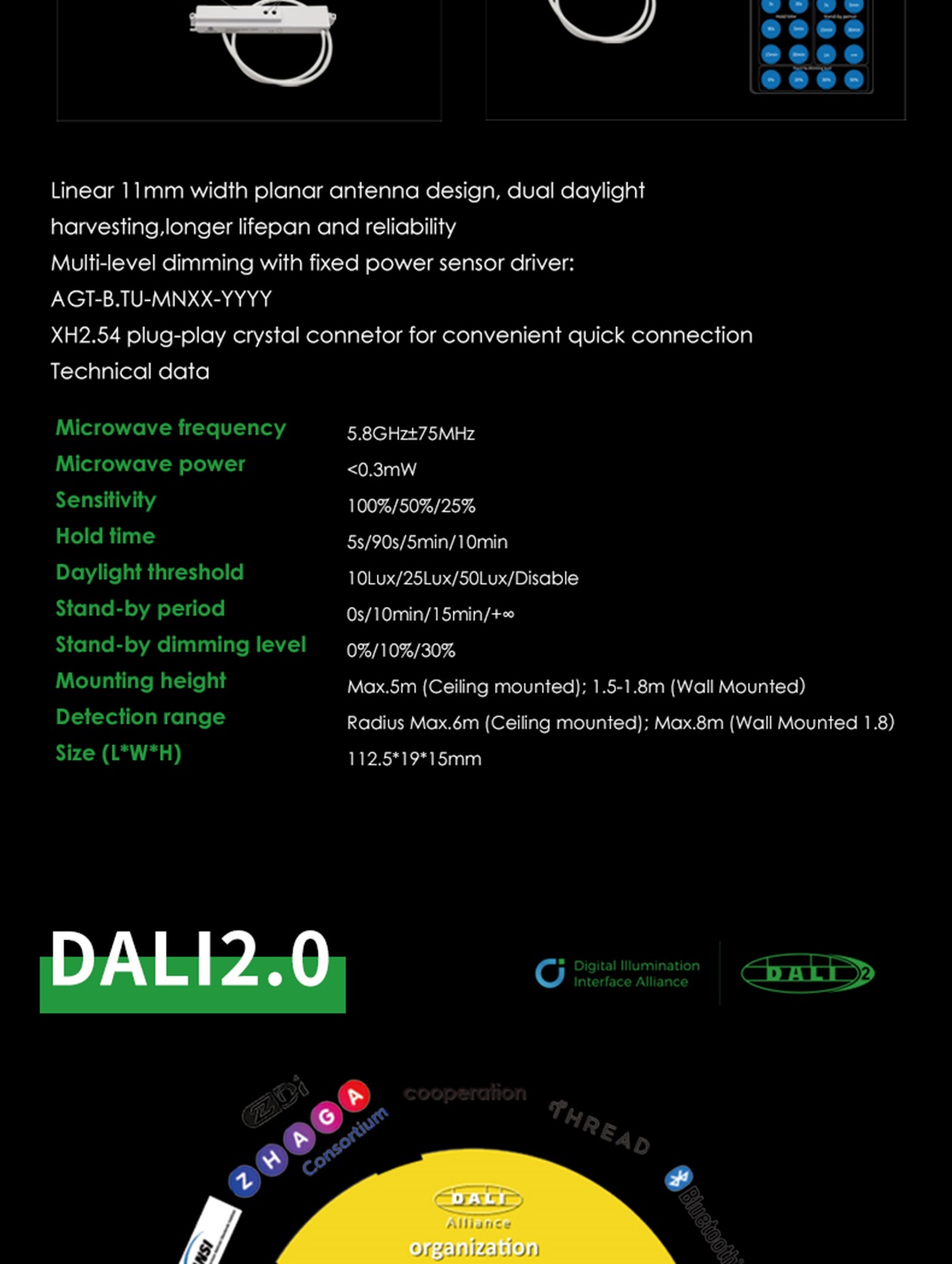

Mounting Height: Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted)

FANXSTAR LED Tri-proof luminaires Trilamp A4 AP Specification

LED Tri Proof luminaires Specifications data with 600mm length

Version

Item No.

Description

MM=Color temp.

Luminous flux

□

Extra

A4-LD2FT20-MMK-XD

2’ LED Weatherproof Batten light

Full Voltage100-277V 50/60Hz

Tri-Power: 12W-16W-20W

3CCT: 3500K-4000K-5000K

0-10V Dimming

3000K

4000K

5000K

133m/w 150lm/w 142lm/w

LED Tri Proof luminaires Specifications data with 1200mm length

Version

Item No.

Description

MM=Color temp.

Luminous flux

□

Extra

A4-LD4FT40-MMK-XD

4’ LED Weatherproof Batten light Full Voltage100-277V 50/60Hz

Tri-Power: 28W-36W-40W

3CCT: 3500K-4000K-5000K

0-10V Dimming

3000K

4000K

5000K

133m/w 150lm/w 142lm/w

LED Tri Proof luminaires Specifications data with 1800mm length

Version

Item No.

Description

MM=Color temp.

Luminous flux

□

Extra

A4-LD8FT75-MMK-XD

8’ LED Weatherprof Batten light Full Voltage100-277V 50/60Hz

Tri-Power: 53W-63W-75W

3CCT: 3500K-4000K-5000K

0-10V Dimming

3000K

4000K

5000K

133m/w 150lm/w 142lm/w

Accessories for seamless Standard LED Tri proof A4 luminaires
