| Item | Part Number | A3-2FT18-MMK-DA | A3-4FT36-MMK-DA | A3-5FT54-MMK-DA |
| Description | Professional Dimming LED Waterproof Seamless Splice Battens | |||
| Working | Mode of Operation | DALI2.0, 0.01-100% Dimming | ||
| Input | Voltage&Frequency | 220-240Vac, 50/60Hz | ||

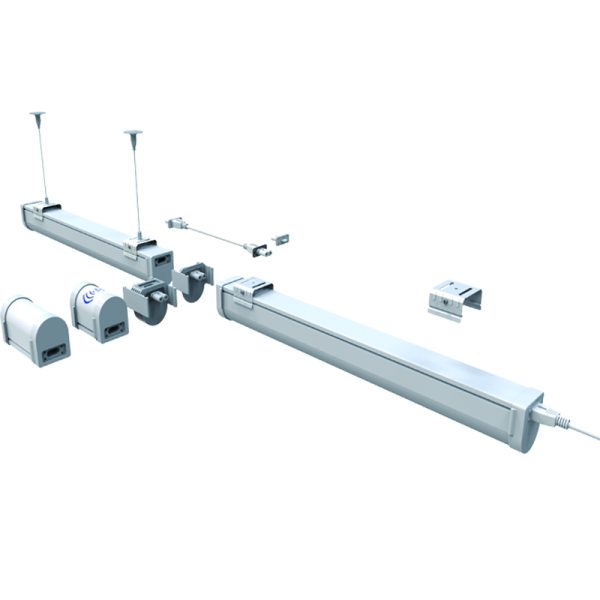

| Wiring Connection | Input Power Cable, Seamless Connector, Jumping Connector | |||
| Output | Light Source | High lumens SMD2835 | ||
| Color Temperature | MM=27-65 stands for 2700-6500K | |||
| Luminous Flux | 140lm/w±10% | |||
| Power Consumption | 18W | 36W | 54W | |
| Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | ||
| Multimode | DALI2.0 Sensor, Brightness Control, 0-10V Dimmable as options | |||
| Physical | Construction | Diffuser – high transmission opal polycarbonate, chassis – polycarbonate | ||

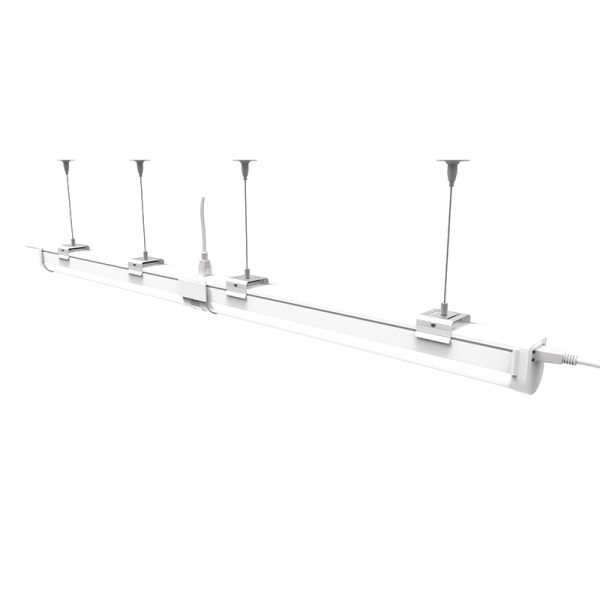

| Mounting | Surface mounted – ceiling / wall / Suspend | |||
| Colour | White RAL9016 | |||
| Dimensions L x W x H(mm) | 600x68x68 | 1200x68x68 | 1500x68x68 | |
| IP/IK Rating | IP66 & IK08 | |||
| Weight | 0.75kg | 1.28kg | 1.54kg | |
| Warranty | 5 years on product | |||
| Environment | Operating Temperature | -30° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CE/UKCA/RCM | ||

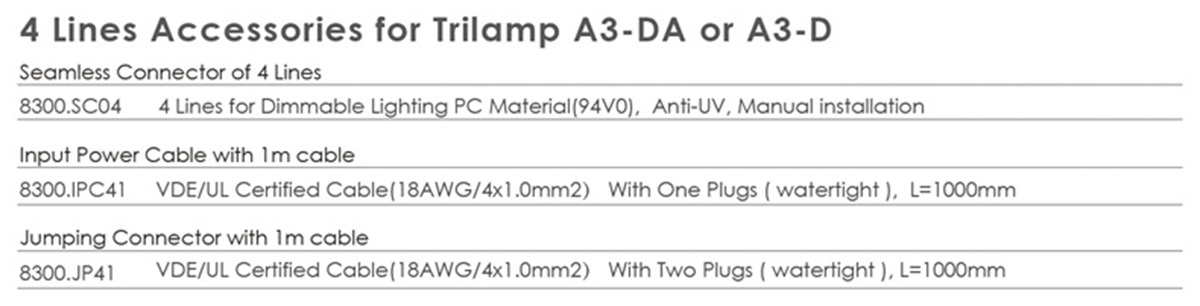

| Accessories | Microwave Dimming Sensor | P/N: A3-DAS: DA9033A | ||
| Replacement Battery | Non | |||
