| Item | Part Number | A7-2FT20-MMK-LS | A7-4FT30-MMK-LS | A7-5FT40-MMK-LS | ||

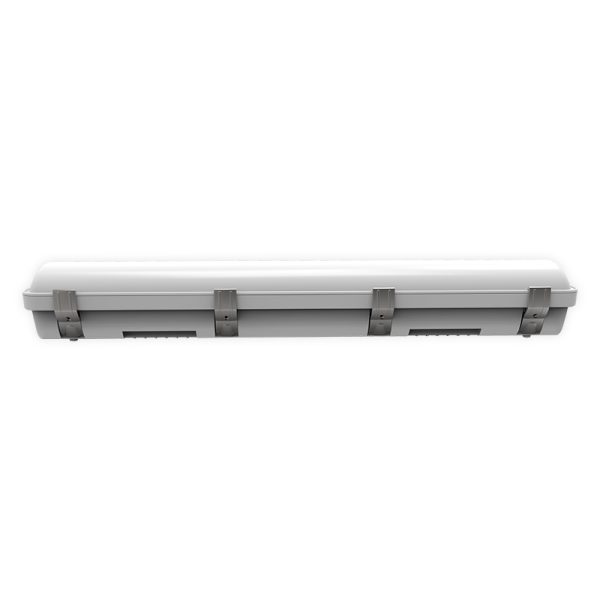

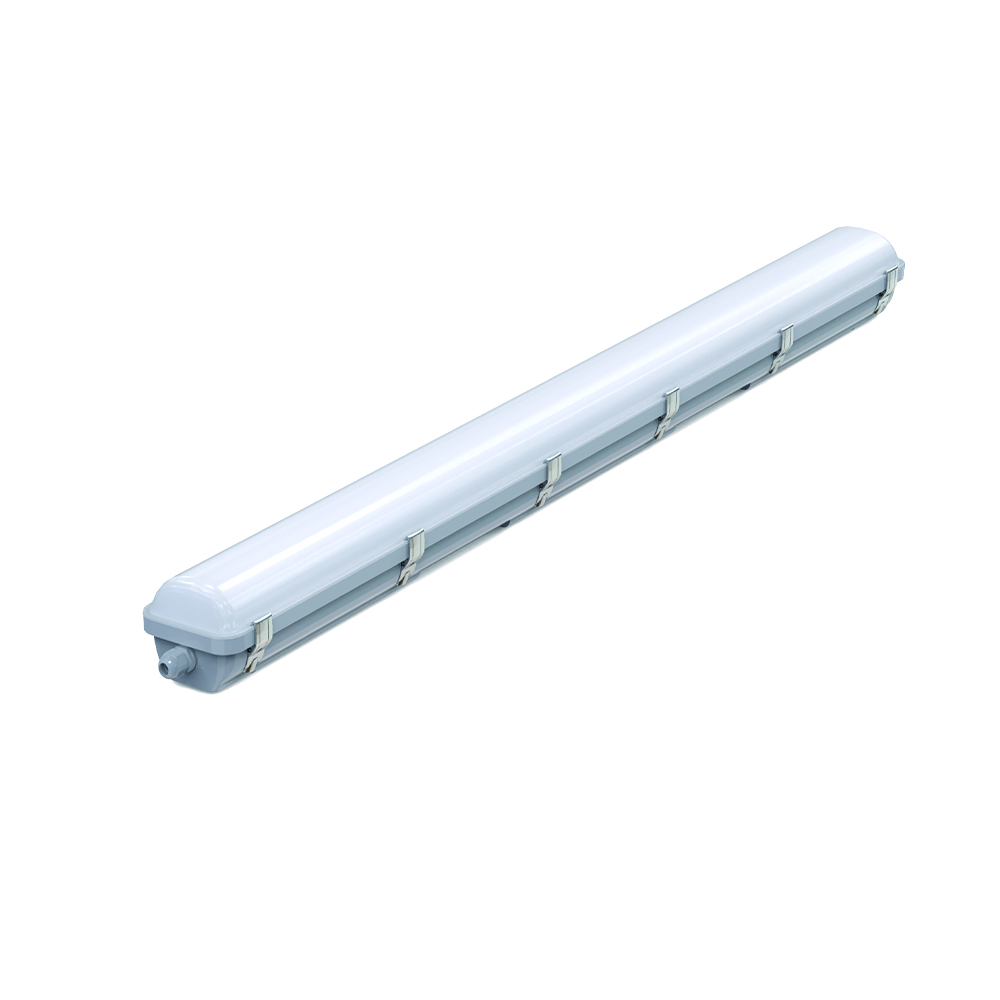

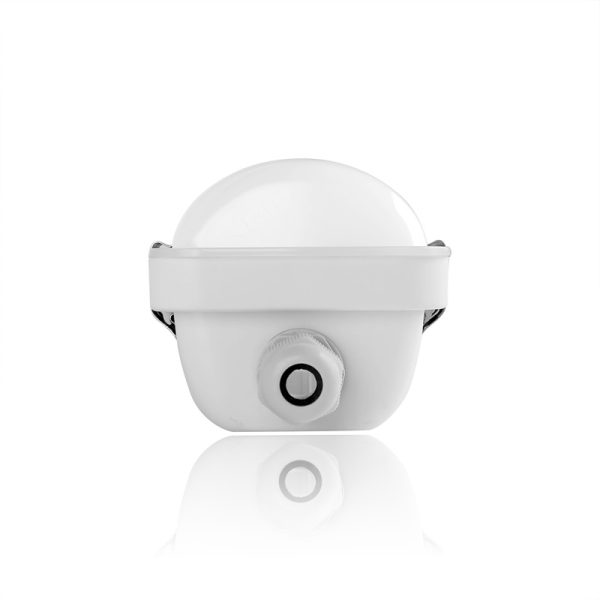

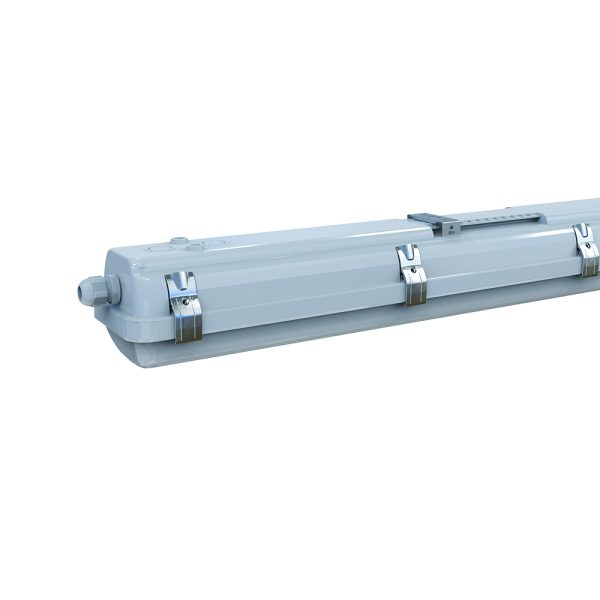

| Description | Low-voltage LED weatherproof Batten Light | |||||
| Working | Mode of Operation | Low-voltage, 10VPWM | ||||
| Input | Voltage&Frequency | 24-36-48Vac/dc , 60Hz | ||||

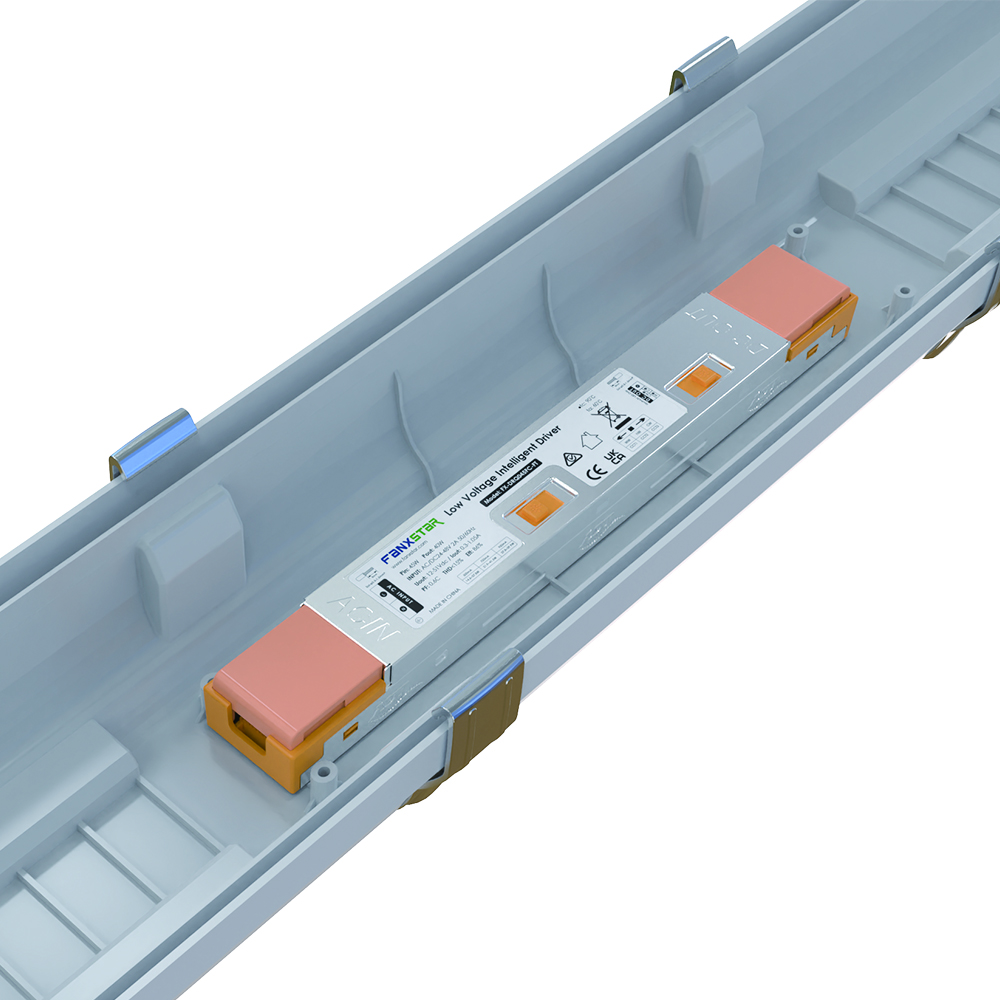

| Wiring Connection | 923 terminal blocks, Loop in and Loop out | |||||
| Output | Light Source | High lumens SMD2835 | ||||
| Color Temperature | MM=27-65 stands for 2700-6500K orTri-CCT(3000K/4000K/5700K) | |||||
| Luminous Flux | 140lm/w±10% | |||||
| Power Consumption | 20W | 30W | 40W | |||
| Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | ||||
| Multimode | Brightness Control | |||||
| Physical | Construction | Diffuser – high transmission opal polycarbonate, chassis -polycarbonate | ||||
| Mounting | Surface mounted – ceiling / wall /suspend | |||||
| Colour | Gray RAL7035 | |||||
| Dimensions L x W x H(mm) | 600x95x83 | 1200x95x83 | 1500x95x83 | |||
| IP/IK Rating | IP66 & IK10 | |||||
| Weight | 1.2kg | 2.2kg | 2.8kg | |||
| Warranty | 5 years on product | |||||
| Environment | Operating Temperature | -30° to 50°C | ||||
| Relative Humidity | -10 to 95% | |||||
| Compliance | Standards | CE/UKCA/RCM | ||||
| Accessories | Dimming Sensor | P/N: A7-LS: MS010/MS010R/MS010ER | ||||
| Remote Control | MR002 | |||||
