Professional emergency lighting China Manufactuer
- 5/7-year warranty
- 50,000-hour lifespan
- High output to 650lm/W
- Manual test, slef-test, mantained and non-manintained
- TUV, SAA, UL, DLC, UKCA, ERP, CE, RoHS certified
Emergency Lighting Series
Our Custom LED Emergency Luminaires are engineered exclusively for critical industrial and commercial facilities, boasting fail-safe operational reliability and cutting-edge compliance-certified technology. In the event of power outages, these luminaires deliver uninterrupted, code-compliant illumination that maximizes on-site safety and enables swift, orderly evacuation. We also provide one-stop OEM/ODM emergency lighting solutions, fully tailored to meet your project-specific requirements
LiFePO4 Battery Technology:
Say goodbye to traditional Ni-Cd/Ni-MH batteries. Fanxstar utilizes Lithium Iron Phosphate (LiFePO4) batteries, which offer double the lifespan, faster charging, and lower standby power consumption. They are also cadmium-free, making them an eco-friendly choice for sustainable buildings.
Smart Testing Options:
Maintenance of emergency lighting is mandatory but costly. We offer three testing levels to suit your budget and facility management needs:
– Manual Test: Standard push-button testing.
– Self-Test: The fixture automatically performs monthly/annual functional tests and indicates faults via an LED indicator.
– DALI 2.0: Fully addressable systems for centralized monitoring and reporting on BMS (Building Management Systems).
Emergency Lighting Critical Application
Our commercial emergency luminaires deliver 90+ minutes of EN 1838-compliant illumination with glare-free uniformity, featuring IP20-IP65-rated enclosures for dust/moisture resistance and integrated manual test or self-test systems for automated compliance reporting. Engineered for indoor and outdoor emergency scenarios.

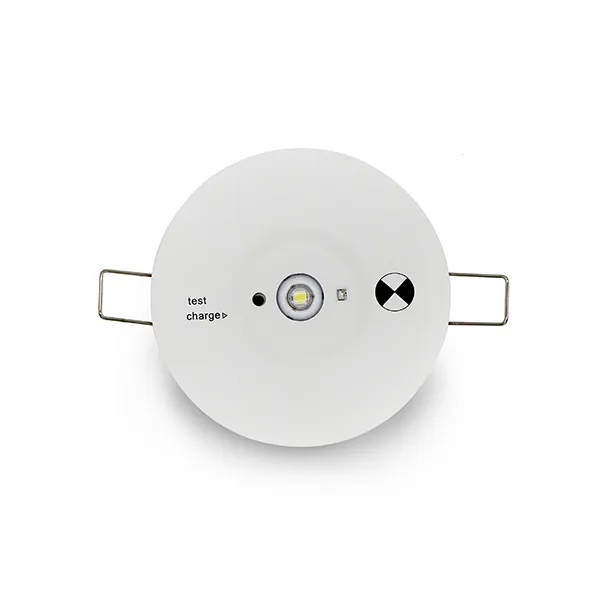

Discreet recessed spitfires that blend into ceilings

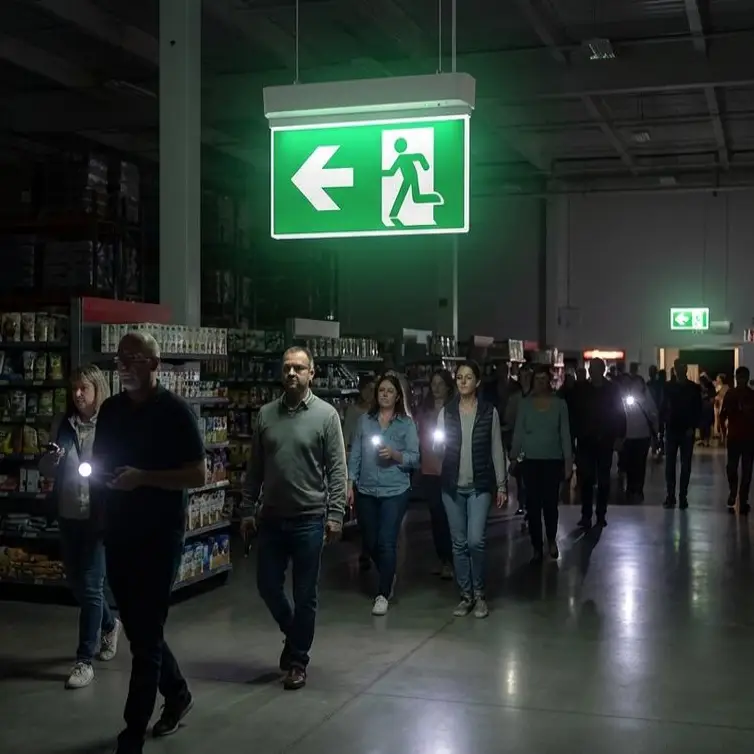

Reliable exit signage for high-traffic public areas

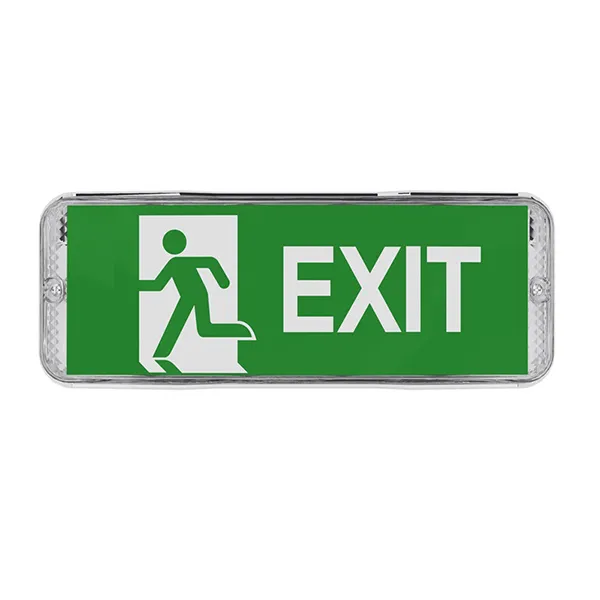

High-output Bulkhead for high-bay emergency coverage.
Professional LED Emergency Luminaire
Engineered for universal compliance across offices, schools, libraries, and hospitals. Delivers 90-minute emergency lighting, complies with the standard of IEC 60598-1: 2014+A1:2017, IEC 60598-2-22: 2014+A1:2017, AS/NZS60598.1: 2017+A1:2017+A2:2020, AS 60598.2.22: 2019, AS/NZS 2293.3: 2018+A1:2021 illumination. Ensures safety in outages in diverse public environments.
How much lux in emergency light？
BS 5266 recommends the provision of horizontal ilumination at floor level along the centre line of a defined escape
route (permanently unobstructed) not less than 1 lux, and 0,5 lux for anti-panic areas. to exclude a 0.5m border
around the route. In addition, for escape routes of up to 2m wide, 50% of the route width should be lit to a minimum
of 1.0 lux. Wider escape routes can be treated as a number of 2m wide bands.
The actual degree of illumination should be closely related to the nature of both the premises and its occupants, with
special consideration being given to care homes for the elderly, hospitals, crowded venues such as pubs, nightclubs
and supermarkets, and to whether or not the premises have overnight accommodation, e.g. hotels.
The level of illumination in certain rooms and areas within a building will vary depending on their use; all this
information is contained in the appendices to BS 5266-1: 2011. N.B: The above is a brief summary and we
recommend that the appropriate standard is studied to gain a full understanding of what is involved.
