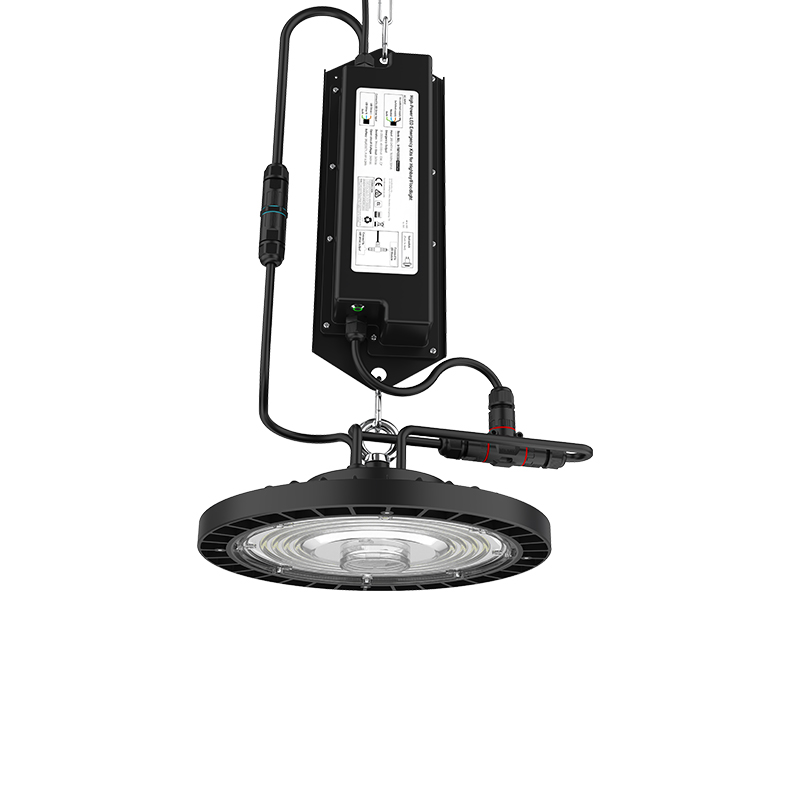

10W Emergency Kits H1 for High Bays
10W Emergency Kits H1 for High Bays are produced with CRCA + PC housing and designed for high bay and floodlight applications. Fanxstar provides reliable quality, stable emergency performance, flexible customization, long-life battery solutions, and professional project support for industrial lighting applications.
Industrial Emergency Backup Pack Key Feautres and Benefits:
- IP65 Waterproof
- Manual Test and Self-Test
- Certifated by CB/CE/SAA
- Plug-in Emergency Modules with Connector
- 5W/10W 3 hours Duration with LiFeO4 Battery
Waterproof Emergency Pack for Industrial Lights Description
10W Emergency Kits H1 for High Bays is a professional emergency power solution developed by Fanxstar for high bay and industrial luminaires used in factories, warehouses, and logistics facilities. Delivering a 5W/10W emergency output, it ensures sufficient and stable illumination during power failures, supporting safe evacuation and continued visibility in large, high-ceiling spaces. Designed for high bay lights and floodlights, the system is compatible with both maintained and non-maintained emergency operation, allowing flexible configuration to meet different project specifications and regional emergency lighting standards. With a high IP65 waterproof rating, it performs reliably in dusty, humid, and demanding industrial environments, making it ideal for heavy-duty applications where safety and durability are critical.
The emergency module features a plug-in design with connectors, enabling fast installation, easy integration, and efficient retrofit for new or existing lighting systems. Available in 5W or 10W emergency output with a 3-hour duration, it is powered by a high-quality LiFePO4 battery that ensures long life, stable performance, and reduced maintenance. Manual Test and Self-Test options simplify commissioning, inspection, and ongoing maintenance, helping facility managers and contractors reduce operational costs. Supporting external suspended or surface-mounted installation, this solution offers maximum flexibility for diverse project layouts. Backed by Fanxstar’s expertise in emergency lighting, customization capability, and professional globe project support, it provides a reliable, compliant, and cost-effective emergency backup solution for industrial and commercial lighting projects.
IP65 Emergency Power Pack Specifications
| Item No. | H1M503W | H1M1003W |
| Output Wattage | 5W | 10W |
| Input Voltage | 200-240Vac, 50/60Hz | |
| Input Current*(max) | 30mA | 50mA |
| Output Voltage | 30-250Vdc | |
| Output Current | 20-167mA | 40-333mA |
| Open Circuit Voltage | 260Vdc | |
| Working Voltage*(max) | 260Vdc | |
| IP Rating | IP65, Class II, Independent Electronic Converter | |
| Input to Output Protection | Double Insulation | |
| Emergency Operation Time | >3 Hours | |
| Emergency Conversion Time | <1S | |
| Test Function(M/S) | Manual / Self test | |
| Input Connection | Wiring leads | |
| Output Connection | Wiring leads with connector | |
| Maximum Case Temp. | 70°C | |
| Ambient Temp. Rang | 0° to 50°C | |
| Construction | CRCA+PC | |
| Mounting | Suspending/wall mounted | |
| Colour | Black | |
| Dimensions L x W x H | 380mm x 123mm x 57 mm | |
| Weight | 1.7kg | 2.3kg |
| Wanrranty | 5 years on product, 4 years on battery | |
| Standards | CB/CE/SAA | |
| Replacement Battery Bodofor® LiFePO4 NTC | P/N: 2140-03|LiFePO4 2IFpR27/66, 6.4V 4.0Ah | P/N: 2160-03|LiFePO4 3IFpR27/66, 6.4V 6.0Ah |
Looking for a Emergency Solution for High Bay Lighting Projects?
Tell us your project details and our team will help you select a reliable, compliant emergency backup solution for your high bay lighting — quickly and efficiently.

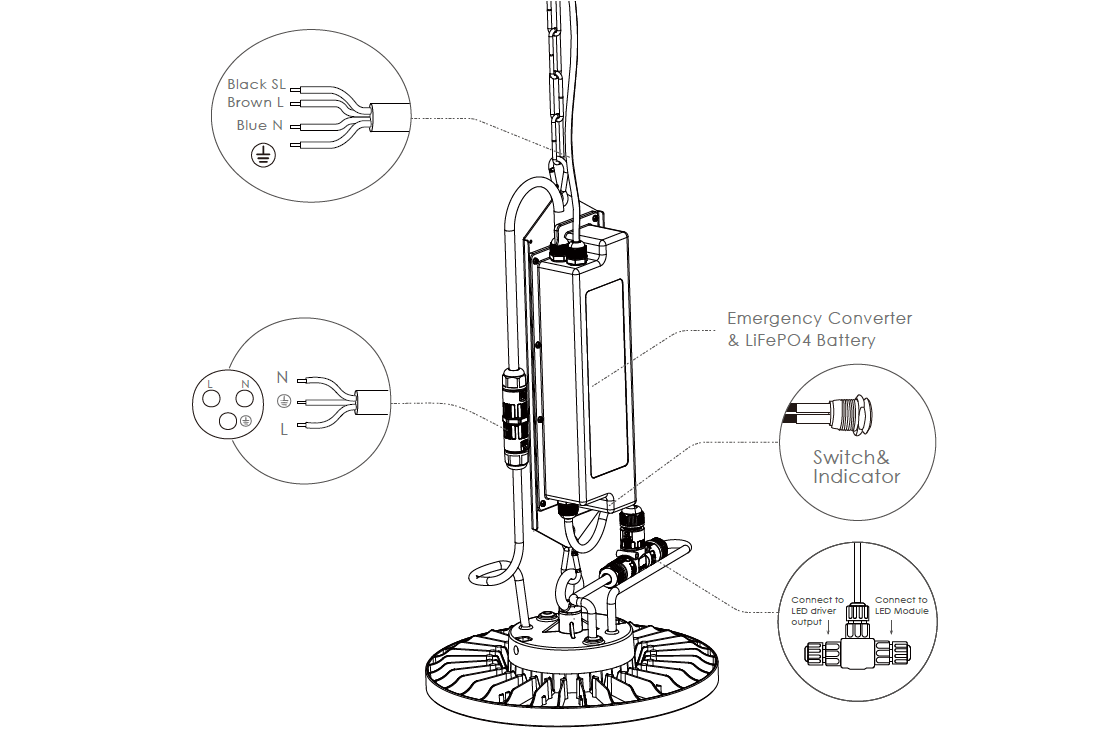

IP65 Emergency Kits Wiring Diagram

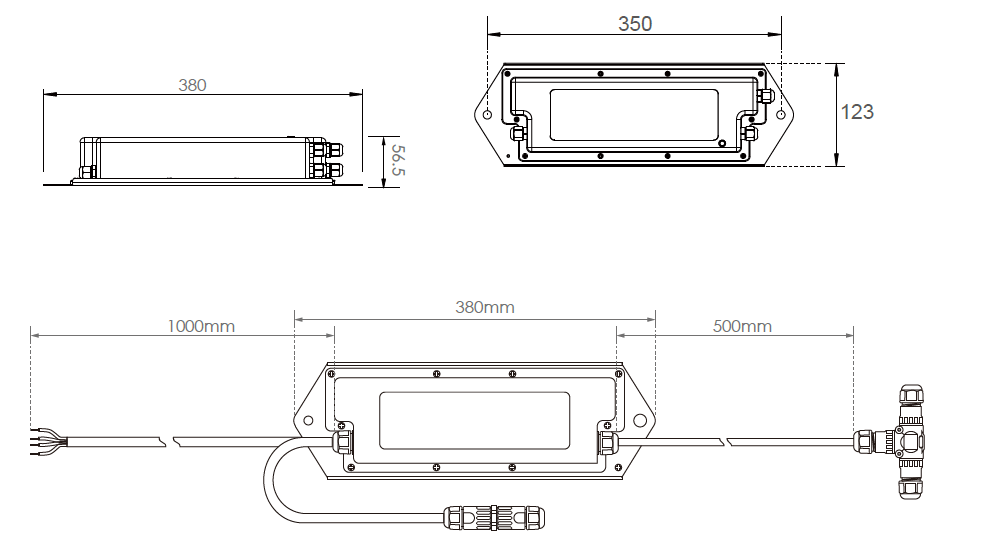

Industrial Lights Emergency Backup Dimension
Emergency Power Pack Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 380×123×56.5mm | 1.7kg | 400×140×65mm | 445x435x260mm | 9pcs | 17.5kg |
