Cleanroom Teardrop Lighting Amber C2
Cleanroom Teardrop Lighting Amber C2 are produced with high-strength PC and a specialized amber cover, and applications are critical environments such as semiconductor manufacturing, printing plate development, and any workspace requiring protection from UV and blue light. Fanxstar provides engineered lighting solutions that safeguard sensitive processes, ensure operational safety, and support a contamination-controlled environment, backed by full OEM/ODM support to meet exact project specifications.
Cleanroom Led Lighting Key Features and Benefits:
- 2″ Wide Teardrop cleanroom design
- High lumen leds up to 54,000-hours lifespan (L80B54)
- PC extrusion housing, anti-ultraviolet PC light shield
- Waterproof (IP65) & Impact-resistant (IK05)
- 0-10V dimming and Dali2.0 Dimming option
- Emergency Backup battery and Motion Sensor Option
- Ceiling and ceiling mounting, suitable for class 10-10,000 cleanrooms
Teardrop Cleanroom Luminaire Description
As a professional cleanroom lighting manufacturer, supplier, and exporter, Fanxstar presents the Amber C2— a 2-inch wide teardrop cleanroom luminaire engineered for high-efficiency lighting in controlled environments, ideal for bulk orders and B-end project collaborations.
Boasting a sleek antimicrobial finish, it supports universal voltage (120-277V), 0-10V dimming, DALI2.0 dimming, motion sensor, and an emergency backup battery for enhanced reliability.
A core advantage of the Amber C2 is its ability to super-effectively filter out spectral lines below 500nm, delivering exceptional UV-blocking performance. It is particularly suited for UV and blue light-sensitive workplaces like integrated circuit manufacturing workshops.
With an extra-long service life and high luminous efficacy, this luminaire provides cost-effective, energy-saving yellow light illumination. Fanxstar offers flexible OEM/ODM support for bulk orders, reinforcing our reputation as a trusted partner for cleanroom lighting solutions.
Cleanroom Waterproof Luminarie Specification
Specifications Data
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| UV | C2-2FTZZ-YC | 2′ LED Waterproof Batten light, Voltage220-240Vac /120-277Vac,50/60Hz, ZZ=10-20W, Spectrum>520nm | Yellow | 100lm/w |
| UV | C2-4FTZZ-YC | 4′ LED Waterproof Batten light, Voltage220-240Vac /120-277Vac,50/60Hz, ZZ=20-40W, Spectrum>520nm | Yellow | 100lm/w |
| UV | C2-5FTZZ-YC | 5′ LED Waterproof Batten light, Voltage220-240Vac /120-277Vac,50/60Hz, ZZ=40-60W, Spectrum>520nm | Yellow | 100lm/w |
Semiconductor-Grade Amber Lighting: Get Your Custom C2 Solution Today

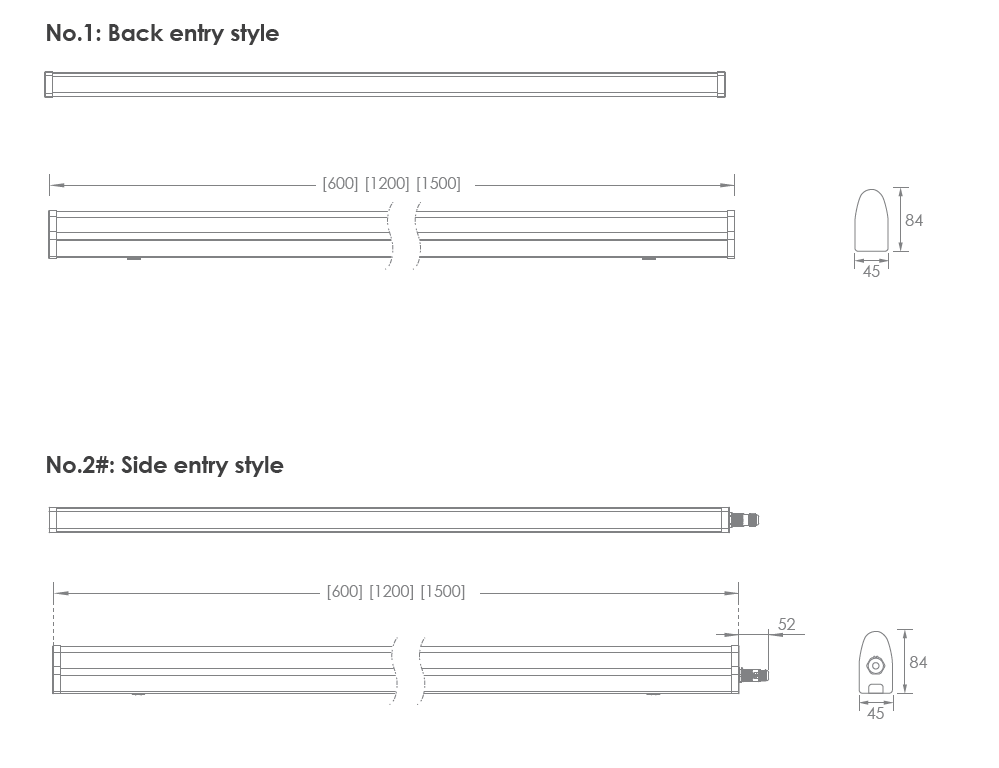

Clean-room Led Light Fittingst Dimensions
Cleanroom Teardrop Light Fixtures Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600×45×84mm | 0.6kg | 620x50x90mm | 660x255x365mm | 25pcs | 8.8kg |
| 1200×45×84mm | 0.9kg | 1220x50x90mm | 1260x255x365mm | 25pcs | 15.3kg |
| 1500×45×84mm | 1.2kg | 1520x50x90mm | 1560x255x365mm | 25pcs | 18.9kg |
