D63 Premium Recessed Round Emergency Lamp X2
The Fanxstar D63 Premium Recessed Round Emergency Lamp X2 features durable PC material construction, ensuring impact resistance and reliable performance. Ideal for commercial buildings, hospitals, hotels, and public spaces, it combines elegant design with emergency functionality. Fanxstar offers certified safety (CE, RoHS), energy efficiency, and expert technical support for seamless integration.
Emergency Spotlights Key Feautres and Benefits:
- SAA and AS/NZS2293 verified
- 3W D63 360lm LiFePO4 6.4V 1600mA
- 2-in-1 cutout size for 75mm & 125mm
- LED emergency converter with 1.2m AC plugs
- Used with Lithium iron phosphate (LiFePO4) battery
- IP20 protection, relies on end-product enclosure protectionagainst accidental contact live parts.
Recessed Emergency Downlights X2 Description
The Premium Recessed Round Emergency Lamp X2 holds the SAA and AS/NZ2293 certificates and with its high-quality Bridgelux SMD LED chip 5w, the optical lenses 3W D63 can achieve 400lm and 4W D80 can reach 475lm, ensuring stable performance and a sleek, premium appearance. This award-winning product comes in an architecturally-pleasing compact design that can either be
surface mounted onto a solid surface or easily retrofitted into an existing luminaire.
It is widely applicable to high-end B-end scenarios such as: luxury commercial complexes, corporate headquarters, premium healthcare facilities, and modern office buildings—meeting both emergency lighting requirements during power outages and aesthetic needs for high-end interior spaces.
Fanxstar, as a professional emergency lighting supplier, provides Strict quality control, Customizable options, Comprehensive after-sales support and Integration with high-performance battery solutions for extended emergency runtime and stable power supply
Non-maintained Fitting Specifications
| Item | Part Number | X2M33& | X2M43& |
| Description | D40/D50/D63/D80 4-in-1 LED Recessed Non-Maintained Emergency Spitfire | ||
| Working | Mode of Operation | Non-Maintained | |
| Input | Voltage&Frequency | 220-240Vac, 30mA|50/60Hz | |
| Installation | Complete with 1.2m flex cable & AC plugs | ||
| Output | Light Source | Birdgelux SMD5050 1x5W | |
| Luminous Flux | 400lm | 475lm | |
| Power Consumption | 3.0W(Standy), 2.4W(Emergency) | 4.0W(Standy), 3.6W(Emergency) | |
| Emergency Duration | ＞ 180minutes | ||
| Controls | Charger | 16hrs intelligent 3-stage charger with battery management system | |
| Emergency | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | |
| Testing Facility | Manual test | ||
| Indicators | Battery charger green LED, Function failure through red LED. | ||
| Physical | Material | 850℃ Glow wire test Flame-retardant polycarbonate | |
| Mounting | Recessed – ceiling, 75 – 125mm cut-out | ||
| Finishing Color | &=W/B/G, W: white, B: black, G: Grey | ||
| Dimensions LxWxH | Disc: 95mm or 145mm diameter, Height: 26mm | ||
| IP Rating | IP20 | ||
| Weight | 0.36kg | ||
| Warranty | 5 years on product, 4 years on battery | ||
| Environment | Operating Temperature | 0° to 50°C | |
| Relative Humidity | 0 to 95% | ||
| Compliance | Standards | CB/CE/SAA, AS/NZS 2293.3 | |
| AS/NZS 2293 Classification | C0: D63, C90: D63 | C0: D80, C90: D80 | |
| Accessories | Replaceable Battery | P/N: 2116-04 for SAA|Bodofor® 18650 LiFePO4 6.4V 1600mA 04 P/N: 2120-04 for CB/CE|Bodofor® 18650 LiFePO4 6.4V 2000mA 04 |
|
Integrate Lighting & Safety: Get a Quote for the D63 2-in-1 Emergency Lighting

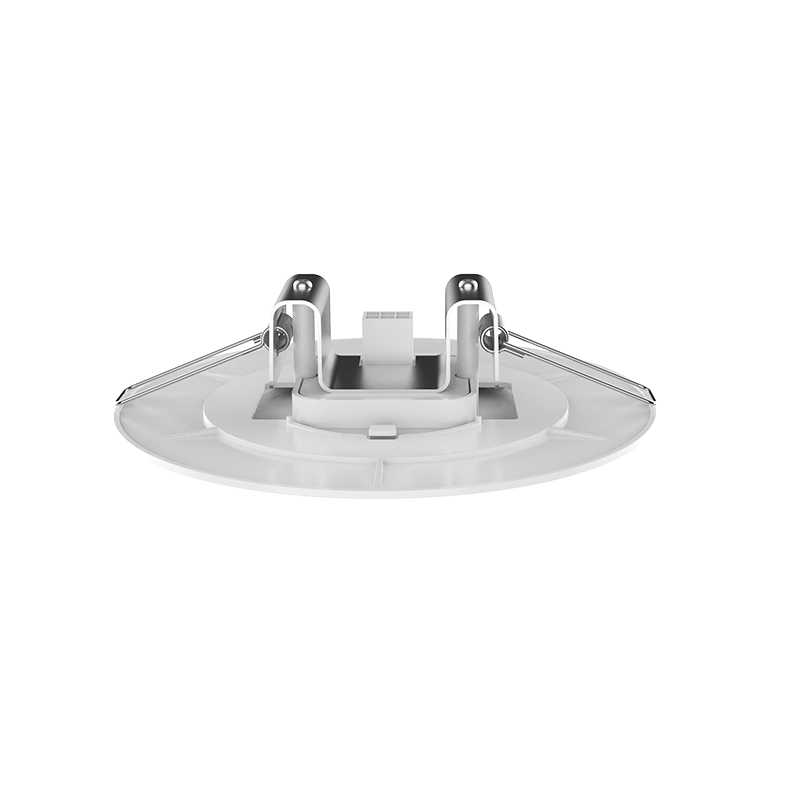

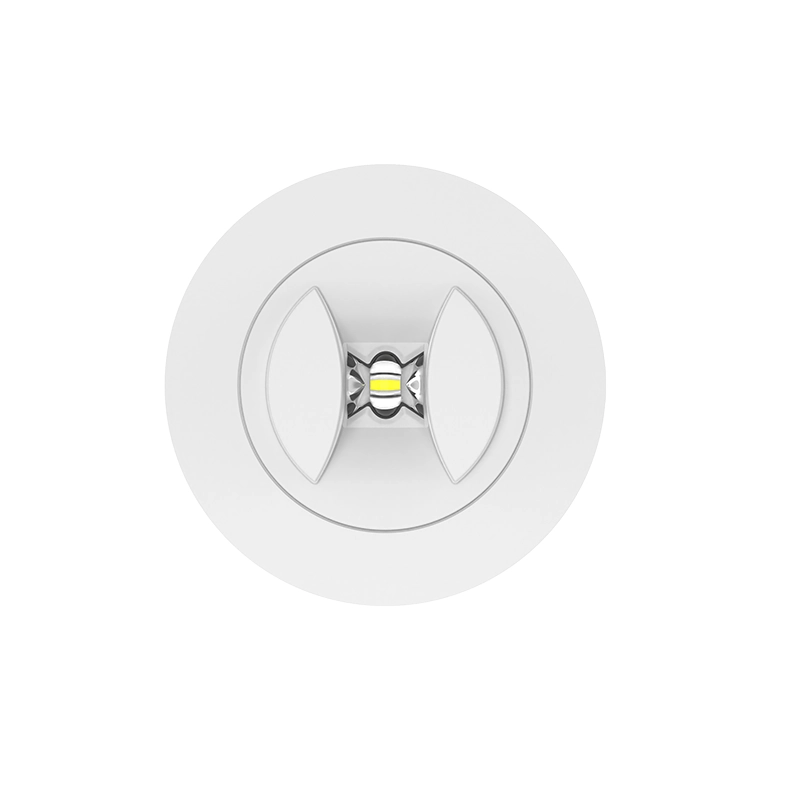

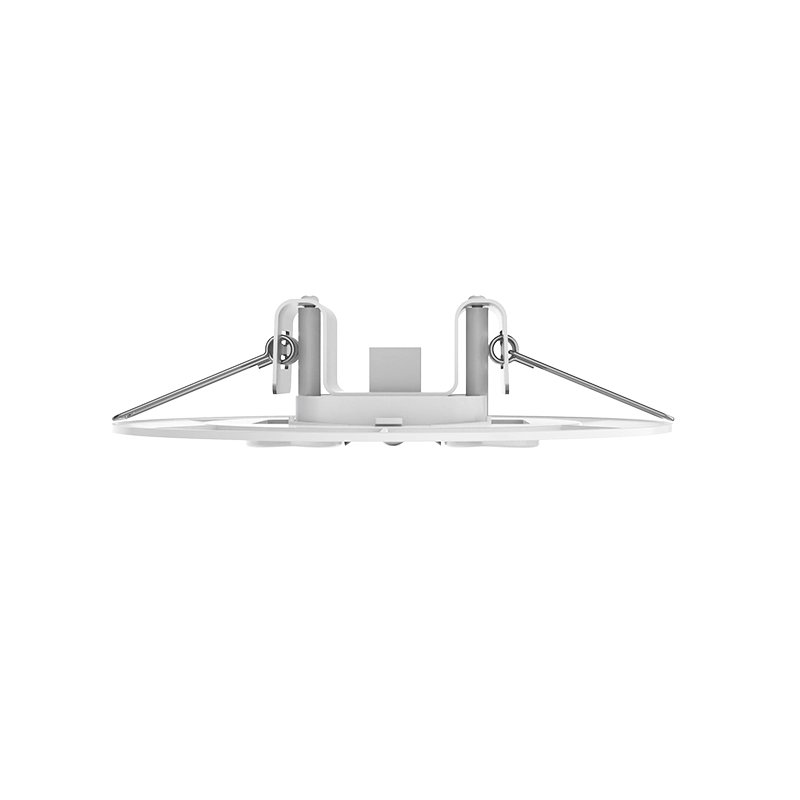

Manual Test Emergency Lamp Xlite X2 Detail Display

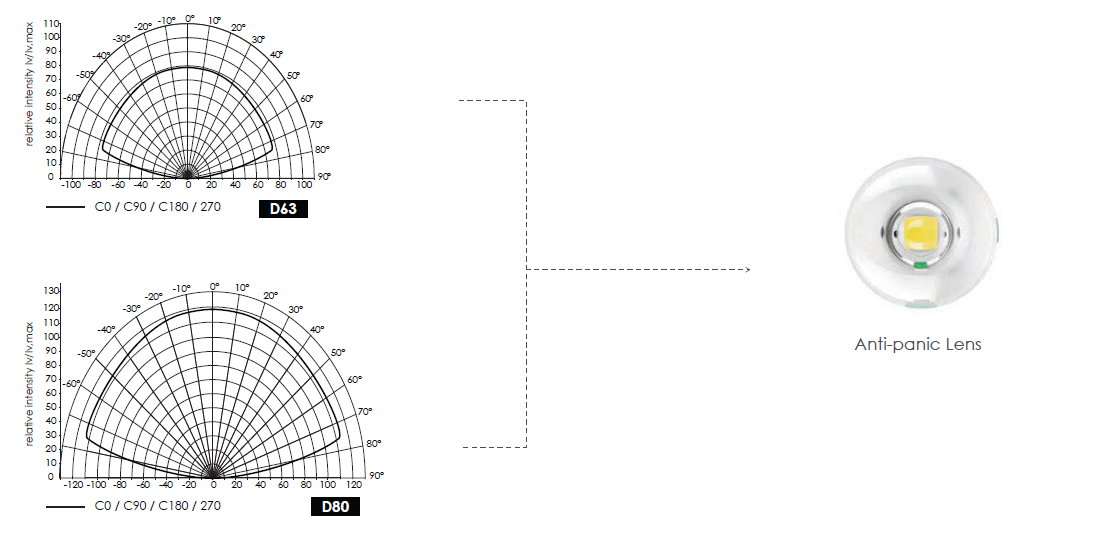

Emergency Luminaires Distribution

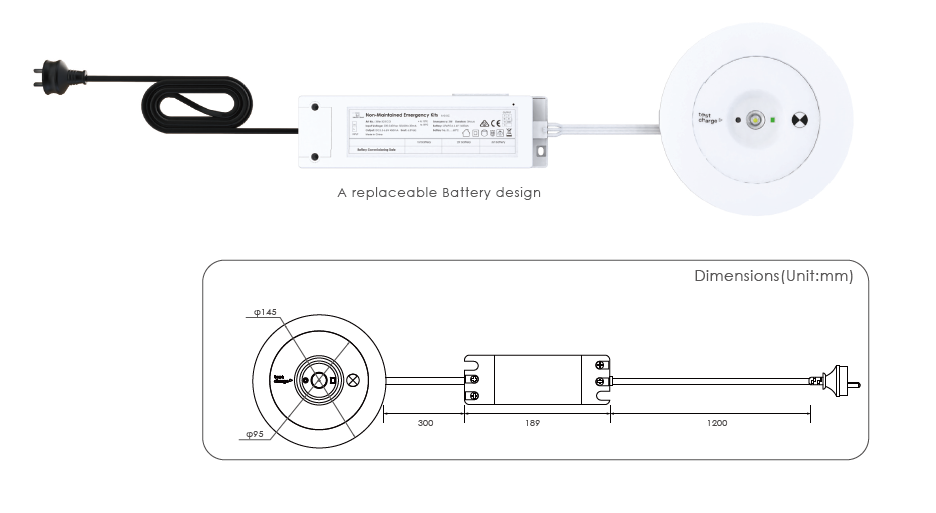

Best Rechargeable Emergency Light Dimension
Emergency Lighting Non-maintained Packing List
| Single Size (D*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| φ145x34mm | 0.36kg | 250x210x45mm | 520x450x240mm | 20pcs | 10.54kg |

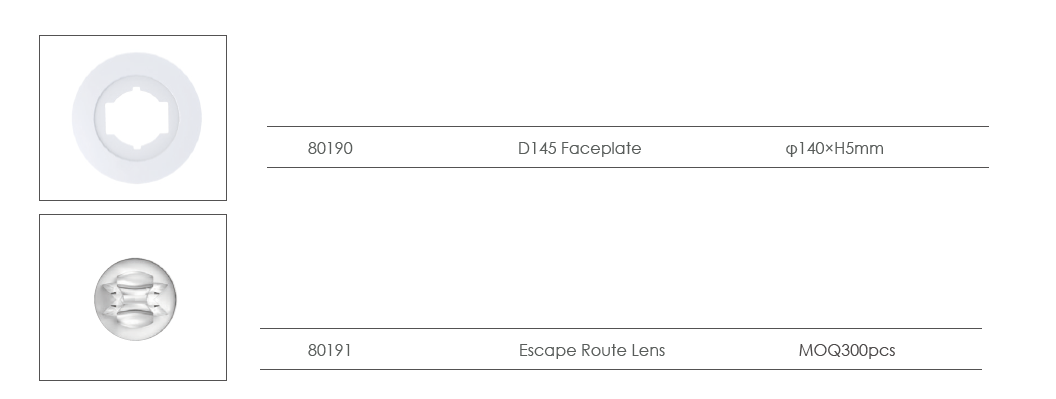

Optional Accessories of Emergency Luminaires
