High-power LED Lights Downlights D2
The High-Power LED Downlights D2 features premium aluminum alloy housings for optimal heat dissipation and superior illumination. This downlight is tailored for high-demand commercial and industrial scenarios, including commercial centers, retail stores, office buildings, hotels, and high-ceiling industrial spaces—perfectly meeting the intensive lighting needs of these high-traffic areas.
Led Lights Downlights Key Feautres:
- Protection Class II, IP40&IK08
- Architectural style downlight: 4/5/6/7/8/9 Inch
- High-power configuration up to 7-9 meters height
- Flexible range a clipping from Ø120mm to 240mm
- Five years warranty (subject to terms and conditions)
Full Voltage LED Downlights Description
The High-power LED Downlights D2H, supplied by Fanxstar, China-based professional lighting supplier, is crafted from high-quality aluminum and fitted with an opal diffuser—delivering even lighting while eliminating annoying reflections, ideal for enhancing space comfort. This product is now available for sale, with CB/ CE/SAA and RoHS certifications that stand as hallmarks of quality and safety, meeting global standards for clients.
Equipped with an external driver supporting 220-240Vac (50/60hz frequency variations), it adapts to diverse voltage conditions, ensuring stable operation in different regions. Powered by Lumileds HL2X -V LED chips, it emits bright illumination, making it a perfect choice for special applications like high-ceiling lobbies where daily activities last over 16 hours. Our company guarantees reliable performance, offering this durable LED down light for sale to cater to commercial project needs, from office buildings to public spaces.
LED Down Light Fitting Specification
Ordering Guide
- High Power Downlight | Allstar D2
- Type of Protection: IP40
- 80CRI Standard And 90CRI Optional
- Protection Class: II Impact Protection: IK10
- Made by 220-240Vac External Flicker-Free Driver
- Specifications using 5000K and subject to change. All parameters +/- 5%.
| Specifications data with D2-4’/5′ inch cut-out φ120-140mm | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Std. | D2-4SZZ-MMK-H | 4′ IP20/42 LED Shop downlight, Voltage220-240V 50/60Hz, ZZ=15/20/25W, 80CRI, MM=27-65K, 0-10V Dimming options | 2700-6500K | 120-130 lm/w |
| Specifications data with D2-6’/7′ inch cut-out φ170-200mm | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Std. | D2-6SZZ-MMK-H | 6′ IP40 LED Shop downlight, Voltage220-240V 50/60Hz, ZZ=30/35/40W, 80CRI, MM=27-65K, 0-10V Dimming options | 2700-6500K | 120-130 lm/w |
| Specifications data with D2-8’/9′ inch cut-out φ210-240mm | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Std. | D2-8SZZ-MMK-H | 8′ IP40 LED Shop downlight, Voltage220-240V 50/60Hz, ZZ=40/50/60W, 80CRI, MM=27-65K, 0-10V Dimming options | 2700-6500K | 120-130 lm/w |
Illuminate Your Commercial Space Perfectly - Get a Tailored Lighting Solution for D2 Downlights!

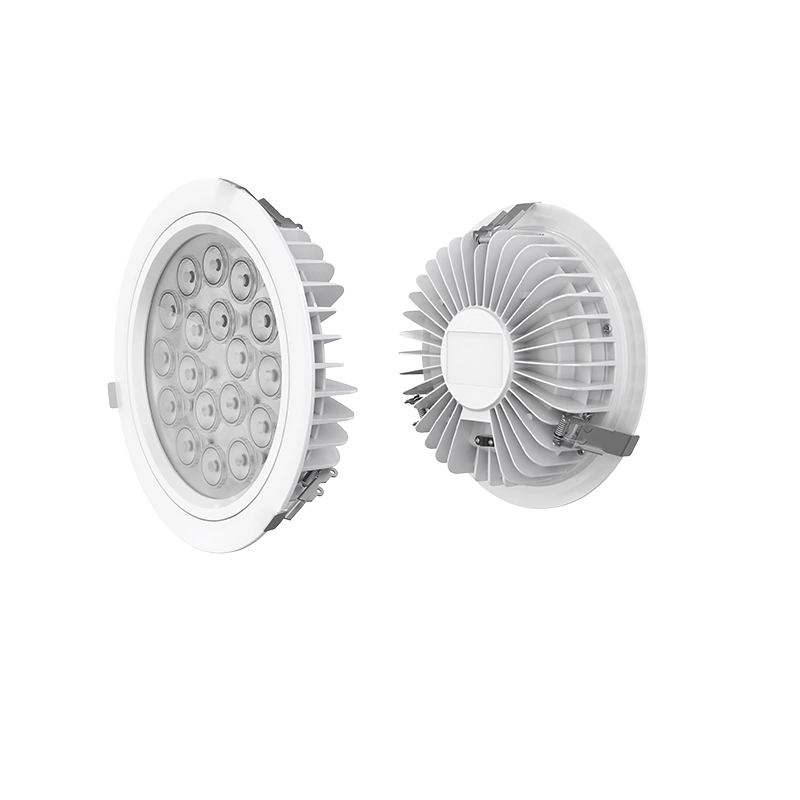

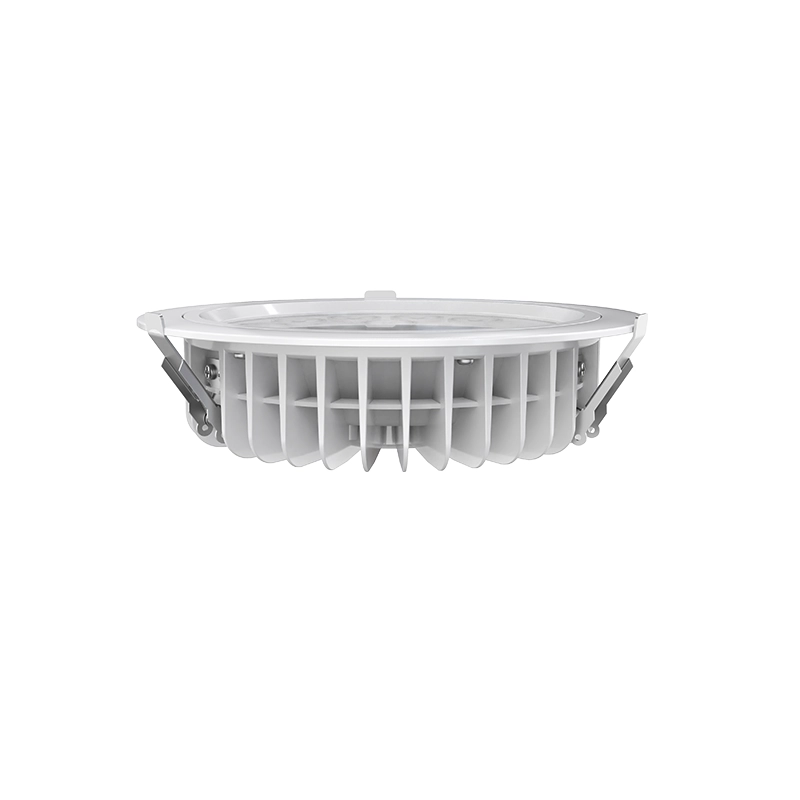

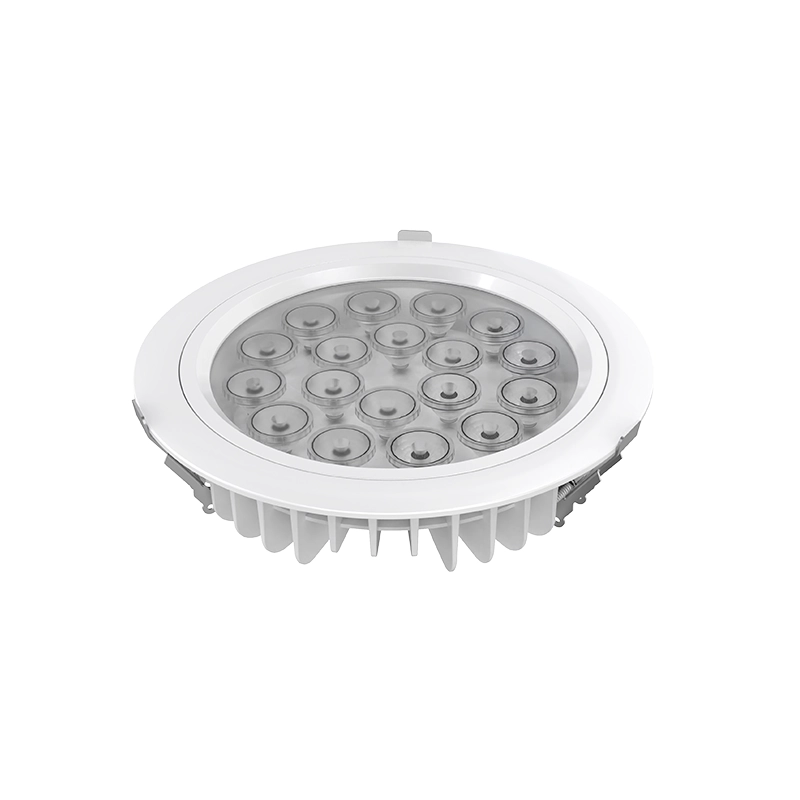

9M Height Led Down-light D2 Detail Display

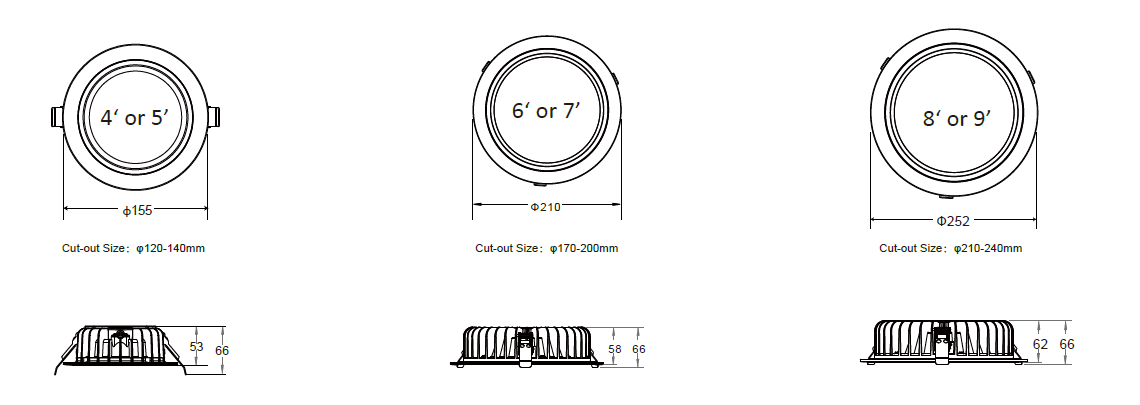

Recessed LED downlights Dimension
100-277Vac Spotlight Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| φ155×H53mm | 0.64kg | 165x165x68mm | 370x370x380mm | 20pcs | 14.6kg |
| φ210×H58mm | 0.98kg | 220x220x73mm | 450x330x260mm | 10pcs | 11.7kg |
| φ252×H62mm | 1.45kg | 262x262x77mm | 570x380x310mm | 10pcs | 16.2kg |
