Smart Tri-Proof Lighting with Quick-Change Motion Sensors A27S
This IP65 LED tri-proof light is designed for industrial lighting applications, featuring interchangeable PIR and microwave motion sensors, plug-and-play POGO pin connectivity, an AUX 12V interface, and a shadowless design. Manufactured by Fanxstar, it combines high-efficiency performance, flexible customization, and professional OEM/ODM capabilities for diverse commercial and industrial projects.
Dual Sensor Weatherproof Luminaire Key Features and Benefits:
- High protection：IP65 & IK08
- 0/1-10V Dimming Function
- Plug & Play Quick Installation Structure
- 923 terminal blocks, Loop in and Loop out
- Quick Interchangeable PIR, MW, Grouping Motion Sensor
Trilamp A27 Intelligent Waterproof Batten Light Description
FANXSTAR Trilamp A27-DS is a EU-standard IP65 & IK10 linear tri-proof luminaire, designed for industrial, parking, warehouse, corridor and outdoor covered areas.

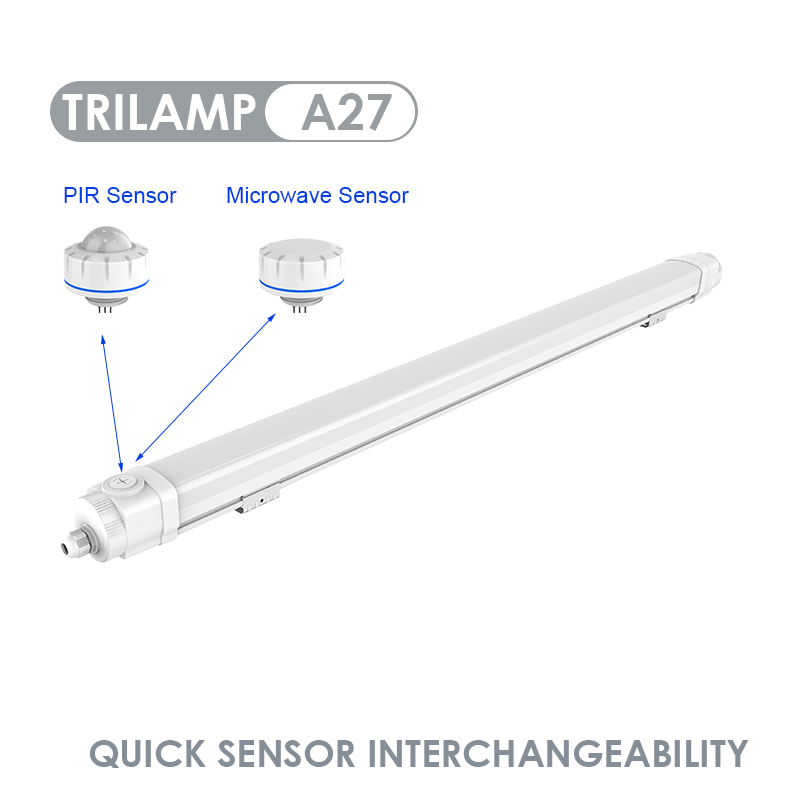

Dual Optional Sensors, Standard Non-Sensor Base Model
The lamp supports two optional sensing modules: PIR infrared human sensor and 5.8G dimmable microwave sensor. Standard shipment is regular non-sensor lighting for general lighting projects; clients can freely select sensor types according to site demands. Equipped with dual PD daylight harvesting
function, it automatically distinguishes day and night to avoid unnecessary lighting waste.
Uniform Shadow-Free Lighting Performance
Optimized internal light distribution structure eliminates dark zones and uneven brightness, delivering soft, consistent full-surface illumination, ideal for long passageways and large open spaces.
Plug & Play Quick Installation Structure
Adopts 3 POGO Pins connector for fast wiring connection, no complicated welding required, greatly cutting on-site installation time and labor cost.
High Reliable Outdoor & Industrial Grade Protection
Reach IP65 waterproof, dustproof and moisture-proof rating, plus IK08 high impact resistance. It stably works in damp, dusty, low-temperature and high-temperature harsh environments, fully compliant with EU market safety standards.
Application Scenarios
Underground parking lots, factory workshops, logistics warehouses, supermarket aisles, underground corridors, covered outdoor walkways, livestock breeding houses.
Weatherproof Sensor Batten Specification
| Item | Part Number | A27-2FT20-MMK-DS | A27-4FT40-MMK-DS | A27-5FT60-MMK-DS |
| Description | Internal IP65 Waterproof and Noshaow Sensor Batten | |||
| Working | Mode of Operation | 0-10V/ 10VPWM | ||
| Input | Voltage&Frequency | 220-240Vac, 50/60Hz | ||
| Wiring Connection | 923 terminal blocks, Loop in and Loop out | |||
| Output | Light Source | High lumens SMD2835 | ||
| Color Temperature | MM=27-65 stands for 2700-6500K | |||
| Luminous Flux | 140lm/w-160lm/w±10% | |||
| Power Consumption | 20W | 40W | 60W | |
| Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | ||
| Multimode | Brightness Control | |||
| Physical | Construction | Diffuser – high transmission opal polycarbonate, chassis – polycarbonate | ||
| Mounting | Surface mounted – ceiling / wall / Suspend | |||
| Colour | White RAL9016 | |||
| Dimensions L x W x H(mm) | 600x70x72 | 1200x70x72 | 1500x70x72 | |
| IP/IK Rating | IP65 & IK10 | |||
| Weight | 0.58kg | 0.75kg | 1.16kg | |
| Warranty | 5 years on product | |||
| Environment | Operating Temperature | -20° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CE/UKCA/RCM | ||
| Accessories | Microwave Dimming Sensor | MS071D/MS073D | ||
| Replacement Battery | MR003 | |||
Get Flexible Dual Sensor Solutions for Your Project

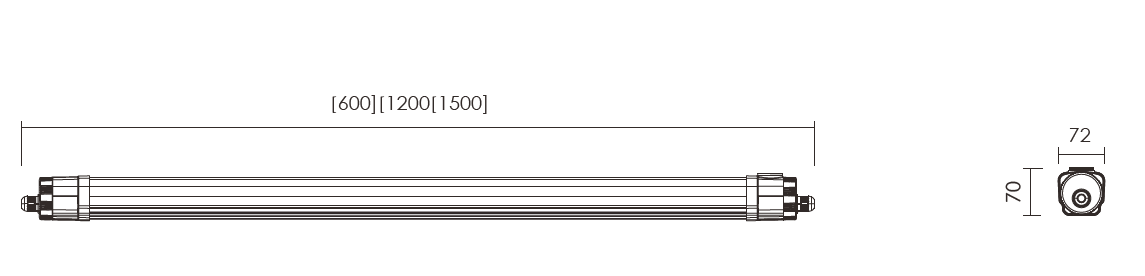

Intelligent Multi-Sensor Luminaire Dimension
PIR & Motion Sensor switch Lighting Packing List
| Single Size (L*W*H) | N.W/PCS | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600×72×70mm | 0.58kg | 620x380x360mm | 12pcs | 8.4kg |
| 1200×72×70mm | 0.75kg | 1220x380x360mm | 12pcs | 10.5kg |
| 1500×72×70mm | 1.16kg | 1520x380x360mm | 12pcs | 15.9kg |
