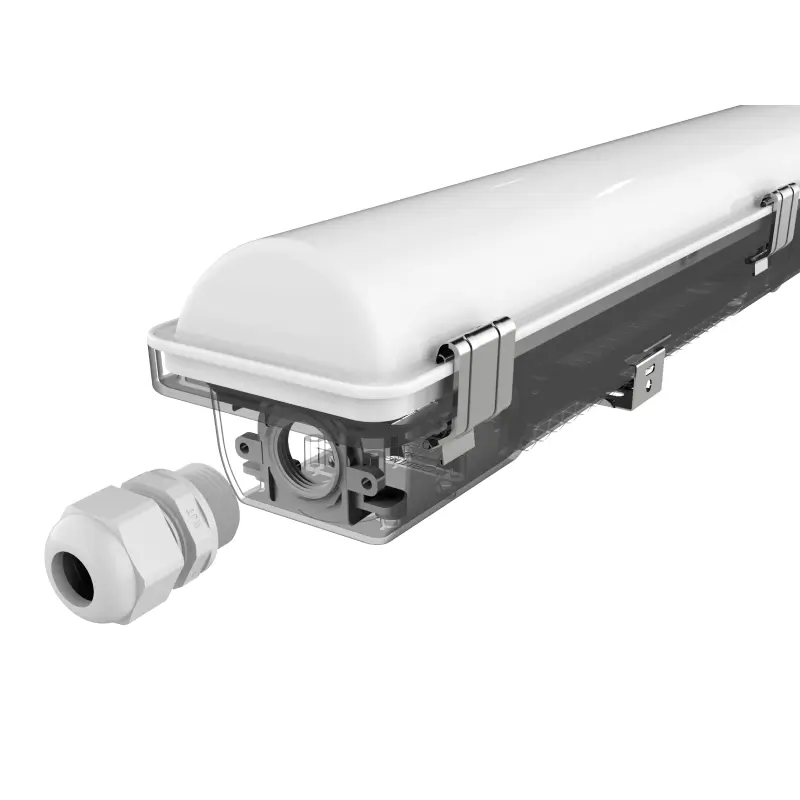

Economic Waterproof Batten A1
Economic Waterproof Batten A1, with IP66&IK10 protection, provides high-performance moisture resistance, cost-efficiency, and durability, perfect for industrial/commercial lighting, ideal for long-term waterproofing solutions in demanding environments.
Waterproof Batten Key Features and Benefits:
- 1:1 replacement for fluorescent 1-lamp
- High protection：IP66 & IK10
- Certified by CE/TUV/CB/ENEC, RoHS2.0
- Energy-Efficient & Low Maintenance
- Flexible Installation & Wide Compatibility
- Low Voltage/ Emergency/ On/Off Sensor Option
ECO Waterproof LED Light Description
The Economic LED Waterproof Batten A1 is designed as a direct 1:1 replacement for traditional 1-lamp fluorescent fixtures, providing a cost-effective upgrade with higher energy efficiency and longer service life. With up to 160lm/W luminous efficacy, it helps reduce energy consumption while delivering reliable illumination for industrial and commercial applications.
Built for demanding environments, the A1 features IP66 waterproof and IK10 impact protection, 2KV surge protection, and an operating temperature down to -40°C, making it suitable for cold storage, warehouses, workshops, parking areas, agricultural facilities, and other challenging environments.
The fixture supports flexible power supply options, including 220–240Vac, 100–264Vac, and 24–42Vdc, allowing easy adaptation to different projects and markets. Equipped with 923 terminal blocks, it also provides convenient and reliable electrical connection.
Certified to CE, TUV, CB, ENEC, and RoHS 2.0 standards and backed by a 5-year warranty, the A1 is an ideal choice for wholesalers, distributors, contractors, and global lighting projects seeking reliable, economical, and easy-to-install LED waterproof lighting.
Waterproof Lighting Fixture Specification
Ordering Guide
- Weatherproof Luminaires | Trilamp A1
- Type of Protection: IP66
- Protection Class: I
- Impact Protection: IK10
- Beam Angle: 120°
- 80CRI Standard And 90CRI Optional
- Specifications using 5000K and subject to change. All parameters +/- 5%.
| Specifications data with 600mm length | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Standard | A1-2FTZZ-MMK-N/X/P | 2′ LED Weatherproot Batten light,
Voltage 220-240Vac 50/60Hz, ZZ=10-20W, 80CRI, MM=27-65K |
2700-6500K | Null=125 lm/W
Extra=140 lm/W Pro=160 lm/W |
| Specifications data with 1200mm length | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Standard | A1-4FTZZ-MMK-N/X/P | 4′ LED Weatherproot Batten light,
Voltage 220-240Vac 50/60Hz, ZZ=20-40W, 80CRI, MM=27-65K |
2700-6500K | Null=125 lm/W
Extra=140 lm/W Pro=160 lm/W |
| Specifications data with 1500mm length | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Standard | A1-5FTZZ-MMK-N/X/P | 5′ LED Weatherproot Batten light,
Voltage 220-240Vac 50/60Hz, ZZ=40-60W, 80CRI, MM=27-65K |
2700-6500K | Null=125 lm/W
Extra=140 lm/W Pro=160 lm/W |
Send your inquiry for Eco Waterproof Tube Light
ECO waterproof Luminaire- Save costs & get custom solutions. Inquire now!
Economic Waterproof Batten A1 Detail Display
Waterproof LED Tube Lights Dimensions
Eco Waterproof Luninaires Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600×80×72mm | 0.8kg | 700x85x78mm | 720x275x280mm | 9pcs | 8.6kg |
| 1200×80×72mm | 1.5kg | 1300x85x78mm | 1320x275x280mm | 9pcs | 15.8kg |
| 1500×80×72mm | 1.8kg | 1600x85x78mm | 1620x275x280mm | 9pcs | 19.2kg |
LED waterproof tube lights are applicable to a wide range of uses
Boasting a highly flexible and damage-resistant design, these fixtures excel in humid, dusty and harsh environments, thus rendering them perfect for:
- Food Processing Plants
- Slaughterhouses
- Chemical Plants
- Warehouses
- Parking Garages
- Supermarket Refrigerated Sections
- Ports/Docks
- Tunnels
- Poultry Farms
