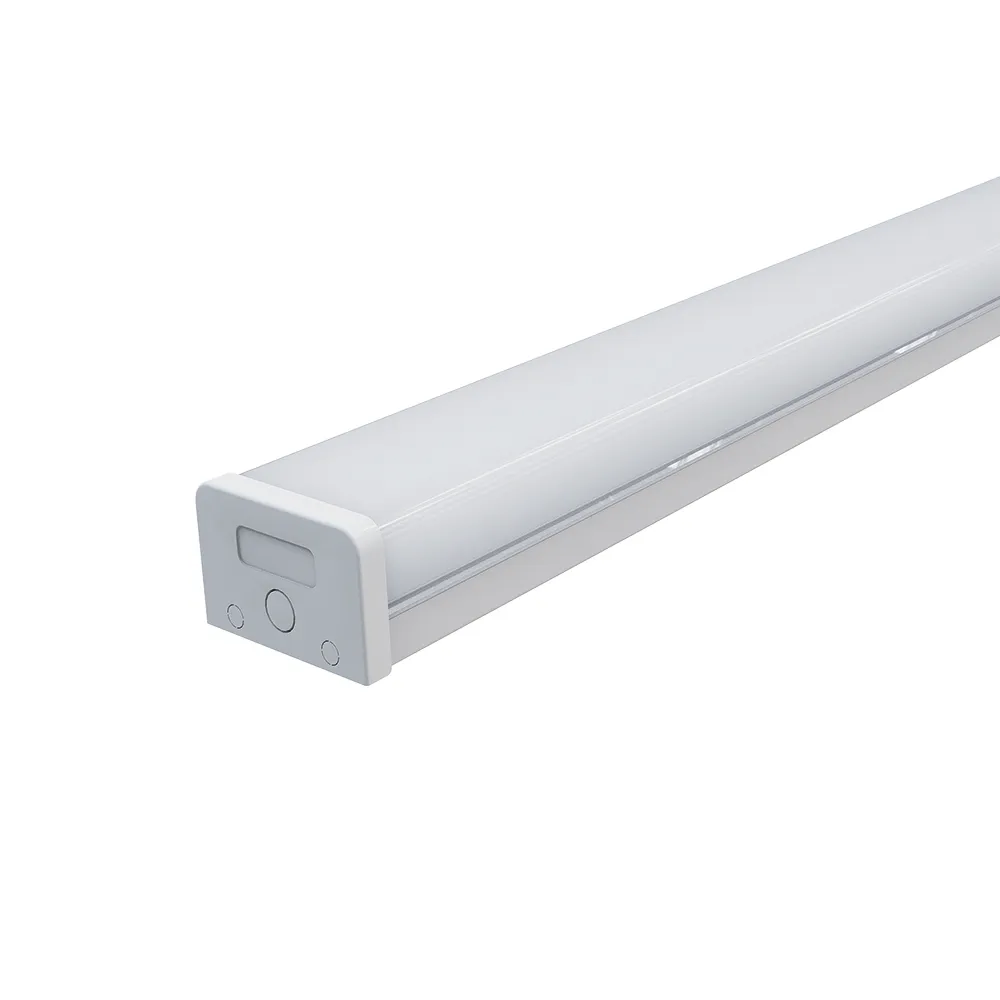

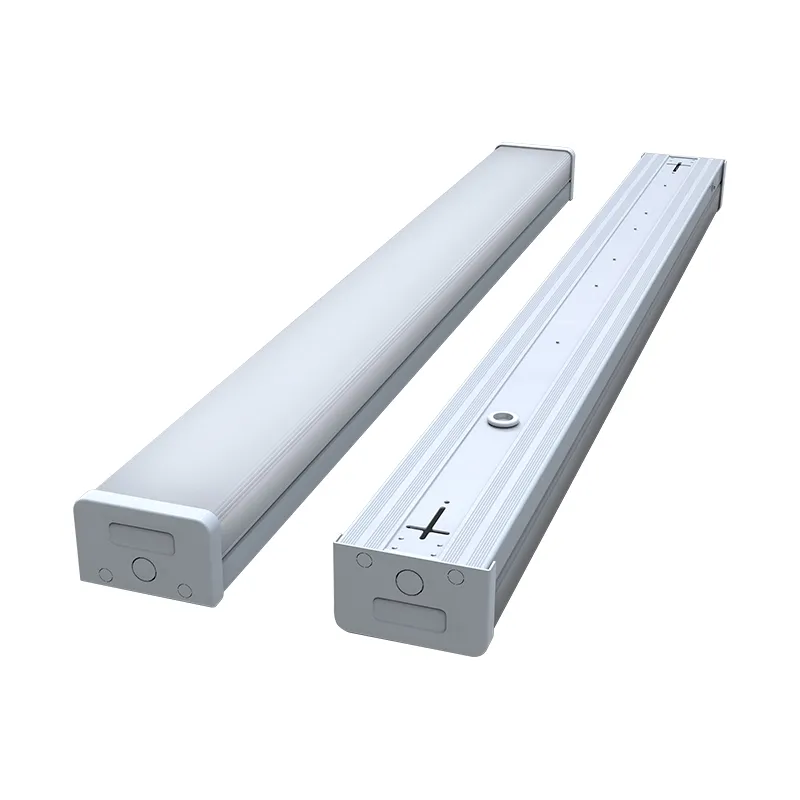

Emergency Ceiling Linear Light B1
Emergency Ceiling Linear Light B1 is crafted from high-grade aluminum alloy and premium LED chips, ensuring optimal heat dissipation and long-lasting performance. Designed for seamless integration in modern commercial environments, it is ideal for offices, retail stores, hospitals, and educational facilities across global markets such as the EU, NA, and Australia. With IP40 rating and emergency functionality, it provides reliable illumination in both daily and critical scenarios.
Module LED Emergency Linear Fixtures Key Features and Benefits:
- Aluminum Housing with PC Diffuser
- Unique design for No shadow without light lens
- Bridgelux® K24 EMG Technology Driver
- Plug-in 3hrs maintained emergency module
- 118mm width, instead of T5/T8 fluorescent double-tubes
- IP40 protection, effectively prevent mosquitoes from entering
- PA14/923 Terminal blocks, series connection according to project needs
Aluminum Linear Emergency Lighting Description

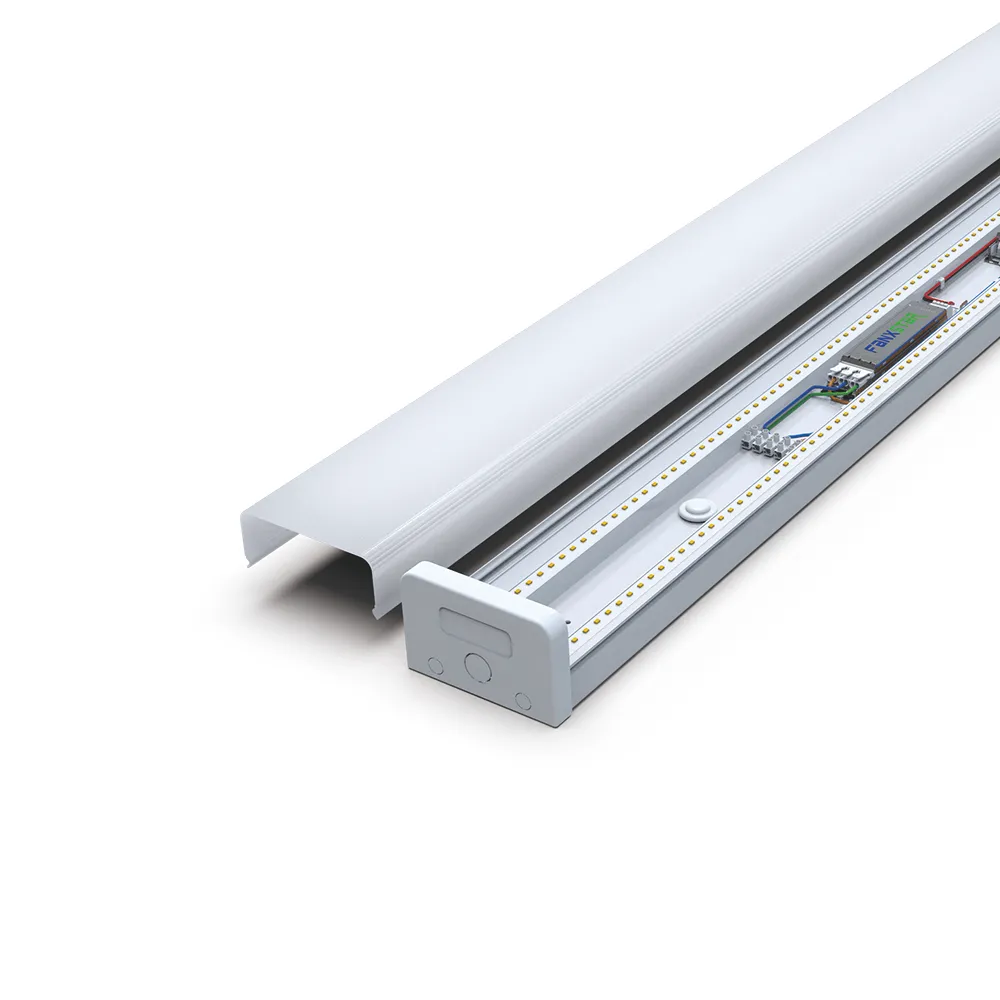

Fanxstar, a specialized manufacturer, presents tEmergency Ceiling Linear Light Batman B1EM – engineered for longevity and effortless maintenance. Built with an Aluminum 6063 heatsink and aluminum base, it achieves 74000h@L80 lifespan and comes with a 7-year warranty. Featuring modular LED strips, tool-less re-assembly for after-sales service, and Bridgelux® K24 EMG Technology Driver with a plug-in 3-hour maintained emergency module, it delivers unparalleled performance. it serves as a direct 1:1 replacement for 2-tube fluorescents, offering wholesalers and contractors a more affordable, energy-efficient, and higher-quality alternative. Its 118mm width minimizes repositioning work in retrofit projects, enabling faster, cost-effective upgrades.
The B1EM is constructed as a versatile lighting solution suitable for a wide range of commercial and industrial applications, including offices, retail spaces, schools, and healthcare facilities across global markets. It can be equipped with intelligent 5.8G microwave sensors(Dual-PD: Ddaylight/Motion Sensor, On/off Sesnor Optiopns), and balances affordability, superior quality, and energy savings. I
For distributors and engineering companies seeking a reliable, feature-rich linear lighting system, the Batman B1EM combines innovation with practicality. We invite potential partners to inquire about bulk pricing and OEM capabilities. Let Fanxstar be your trusted supplier for high-performance, future-ready lighting solutions.
Emergency Linear Light Ceiling Specification
| Item | Part Number | B1-2FTZZ-MMK-EM/EMS | B1-4FTZZ-MMK-EM/EMS |
| Description | Sensor&Emergency 2-in-1 Linkable Classical Batten | ||
| Working | Mode of Operation | Maintained | |
| Input | Voltage&Frequency | 220-240Vac, 50/60Hz | |
| Wiring Connection | Large Terminal blocks | ||
| Output | Light Source | High lumens SMD2835 | |
| Color Temperature | MM=27-65 stands for 2700-6500K | ||
| Luminous Flux | 120-140lm/w±10% | ||
| Power Consumption | 10-24W | 28-45W | |
| Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | |
| Multimode | Standy, Microwave Sensor and Emergency | ||
| Emergency | Charger | 16hrs charging time with the latest temperature controlled BMS | |
| Emergency Power | 2/4W | 2/4W | |
| Duration Time | 1.5/3 hours | 1.5/3 hours | |
| Testing Facility | Manual test, Self test | ||
| Indicators | System status indication through Green LED indicator | ||
| Physical | Construction | Diffuser – PC, Housing – Aluminum 6063 | |
| Mounting | Surface mounted – ceiling / wall / Suspend | ||
| Colour | White RAL9016 | ||
| Dimensions L x W x H(mm) | 600x118x72 | 1200x118x72 | |
| IP/IK Rating | IP40 & IK08 | ||
| Weight | 1.5kg | 2.4kg | |
| Warranty | 5 years on product, 4 years on battery | ||
| Environment | Operating Temperature | 0° to 50°C | |
| Relative Humidity | -10 to 95% | ||
| Compliance | Standards | SAA/RCM, IEC 60598-1, IEC 60598-2-2, AS/NZS 2293.3 | |
| AS/NZS 2293 Classification | C0: D63, C90: D63 | C0: D80, C90: D80 | |
| Electric class(1,2,3) | 1 | ||
| Accessories | Microwave Dimming Sensor | P/N: MS011/MS011E, MD001E as options | |
| Replacement Battery | P/N: 2116-02|Bodofor® 18650 LiFePO4 6.4V 1600mA 02 | ||
Fanxstar B1: 74000H Lifespan Emergency Ceiling Light – Inquire for Custom Solutions!

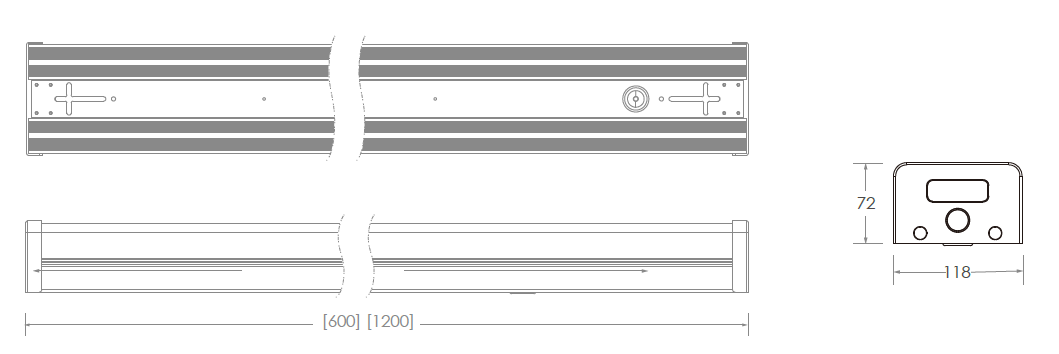

Linear Led Emergency Fixtures Dimensions
Emergency Led Linear Light Packing List Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600×118×72mm | 1.5kg | 608x125x78mm | 620x380x200mm | 6pcs | 10.3kg |
| 1200×118×72mm | 2.4kg | 1208x125x78mm | 1220x380x200mm | 6pcs | 16.1kg |
