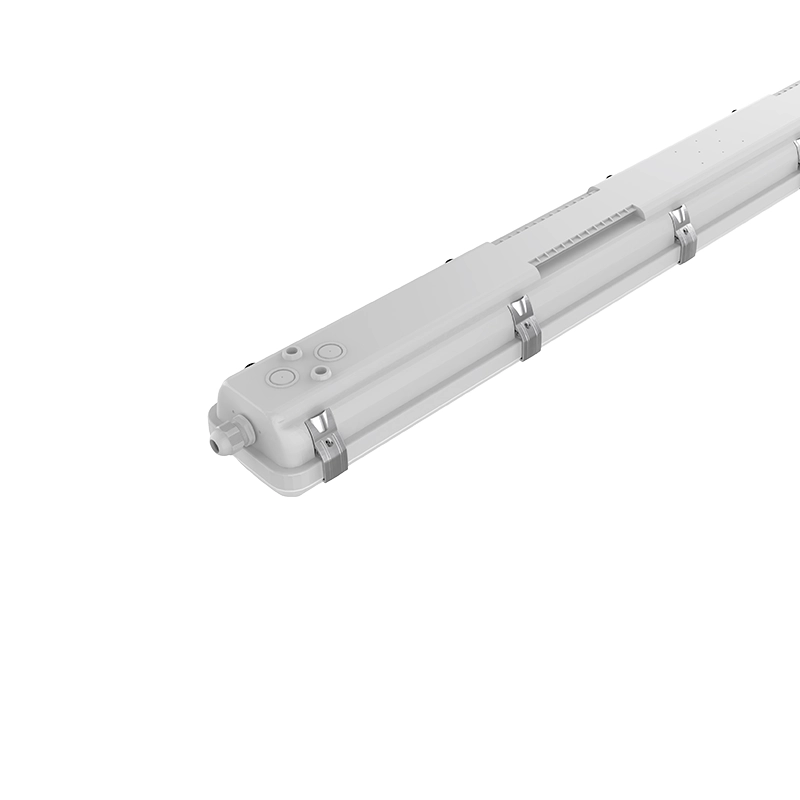

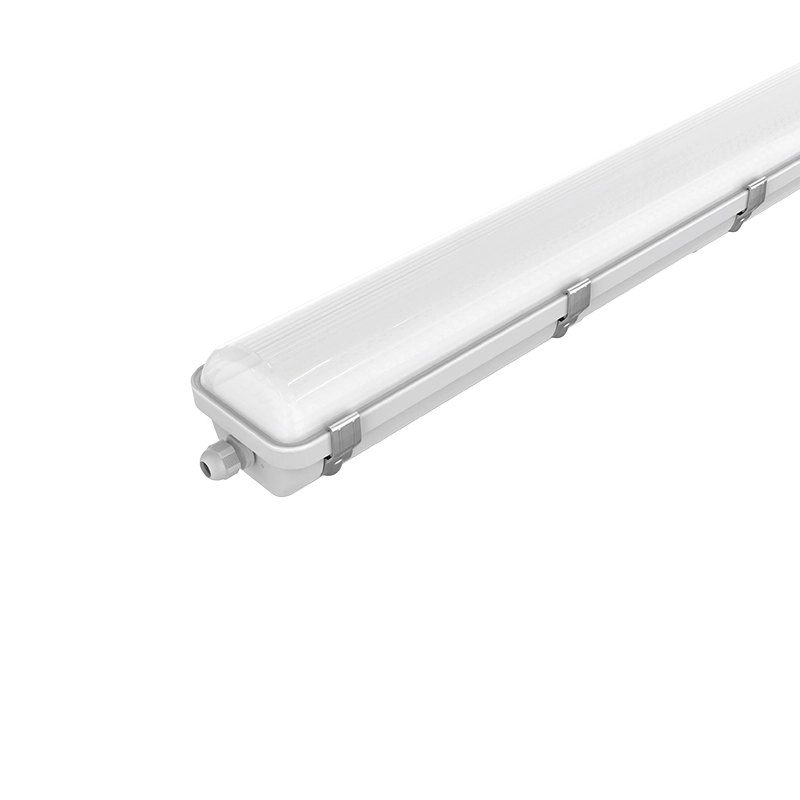

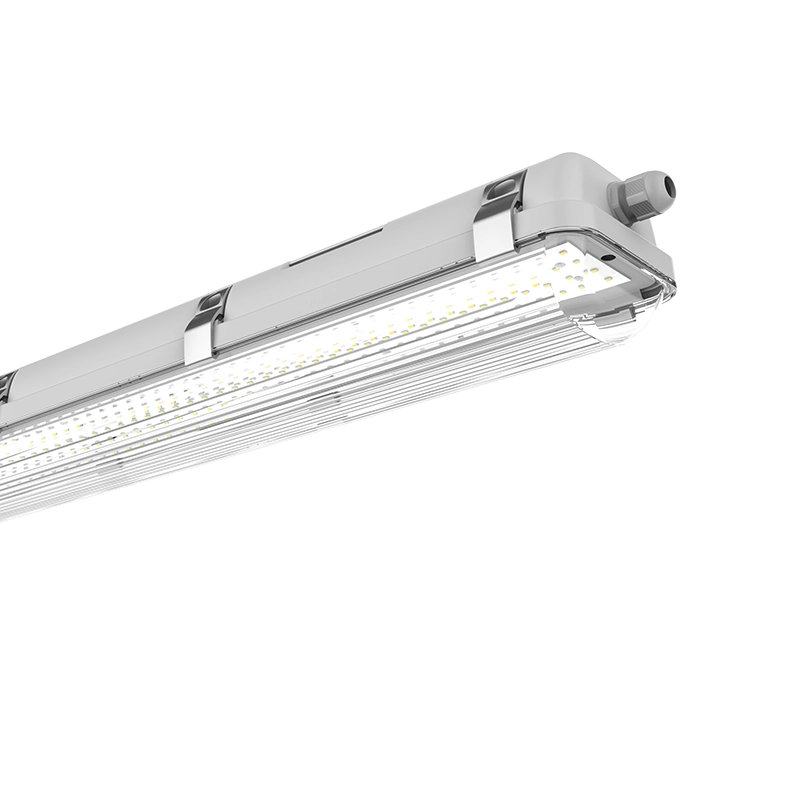

CCT Weatherproof Led Emergency Batten A8
The CCT Weatherproof LED Emergency Batten A8 is crafted from high-grade injection PC materials, seamlessly integrating customizable CCT and Side-Mounted Emergency Kits. It is designed for demanding applications such as industrial facilities, commercial corridors, and underground parking areas. Fanxstar provides a versatile, all-in-one lighting solution that ensures superior durability, weather resistance (IP65), and reliable emergency performance, all while reducing installation complexity and total cost of ownership.
IP65 Tri-proof Emergency Lights Key Features and Benefits:
- 5 Years Warranty
- Wide Aluminum Substrate Design
- Waterproof (IP66) & Impact-resistant (IK10)
- Material: Full PC Housing With S304 Clips
- Three Kinds of Side-Mount Emergency Accessories
- 18-SKUS-IN ONE: 3CCT and 4 Power Selectable and Removable Motion Sensor
Waterproof Emergency Lamp Fittings Description
As a professional industrial LED lighting manufacturer and supplier, Fanxstar dedicated to delivering the CCT Weatherproof LED Emergency Batten A8—a game-changing fixture with 18-SKU-IN-ONE integration. This all-in-one design combines 3 CCT options, 4 power selections, a removable motion sensor, and Paired with three side-mount emergency accessory options drastically reducing inventory volume for businesses while covering diverse application needs. Built with a full PC housing, S304 clips, and a wide aluminum substrate for efficient heat dissipation, it boasts a 5-year warranty, IP66 waterproof rating, and IK10 impact resistance.
Engineered for factories, warehouses, commercial venues, and outdoor harsh environments, the A8 addresses multi-scenario lighting demands and inventory optimization challenges. We provide bulk supply and global export services, catering to wholesale distributors, project integrators, and facility managers seeking durable, cost-effective solutions. As a trusted partner, this weatherproof emergency batten merges flexibility, reliability, and inventory efficiency—ideal for bulk procurement and industrial project applications.
Emergency Weatherproof Batten Fixutres Specification
| Item | Part Number | A8-2FTZZ-MMK-S/SE | A8-4FTZZ-MMK-S/SE | A8-4FTZZ-MMK-S/SE |
| Description | High Performance Waterproof Batten Light | |||
| Working | Mode of Operation | Dimmable Sensor + AUX12V Interface | ||
| Input | Voltage&Frequency | 220-240Vac|100-277Vac, 50/60Hz | ||
| Wiring Connection | 923/PA14/16 terminal blocks, φ1.0-4.0㎡ | |||
| Output | Light Source | High lumens SMD2835 | ||
| Color Temperature | 3000K-4000K-5700K/ 3500K-4000K-5000K | |||
| Luminous Flux | 140-160lm/w±10% | |||
| Power Consumption(ZZ) | 10-20W | 20-40W | 40-60W | |
| Controls | Protection | Overcharge, low voltage disconnects, overcurrent, short circuit | ||
| Multimode | Brightness Control with PWM Dimming | |||
| Emergency | Side-Mount Emergency | Emergency Power: 2W(M1), 3W(X7) | ||
| Duration Time | 3 hours | |||
| Physical | Construction | Diffuser – high transmission opal polycarbonate, chassis – polycarbonate | ||
| Mounting | Surface mounted – ceiling/wall/suspend | |||
| Colour | Gray RAL7035 | |||
| Dimensions L x W x H(mm) | 600x125x96 | 1200x125x96 | 1500x125x96 | |
| IP/IK Rating | IP65 & IK10 | |||
| Weight | 1.2kg | 2.2kg | 2.7kg | |
| Warranty | 5 years on product, 4 years on battery | |||
| Environment | Operating Temperature | -20° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | TUV/CB/CE/UKCA/RCM | ||
| Accessories | Dimmable Sensor | MC004-S02/MC004-S02R | ||
| Remote Control | MR003 | |||
Get A8 Pricing Today
Adjustable CCT & Emergency LED Batten A8 – Versatile, Weatherproof Lighting
Emergency Waterproof Tube Light Dimensions
Weatherproof Emergency Fixtures Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600x125x96mm | 1.2kg | 620x130x100mm | 640x405x220mm | 6pcs | 8.5kg |
| 1200x125x96mm | 2.2kg | 1220x130x100mm | 1240x405x220mm | 6pcs | 15.2kg |
| 1500x125x96mm | 2.7kg | 1520x130x100mm | 1540x405x220mm | 6pcs | 18.3kg |
