Emergency Downlights DX
Emergency Downlights DX are constructed with fire-resistant materials, ensuring exceptional durability and thermal management. Designed for seamless integration into commercial complexes, hospitals, hotels, residential buildings, and public emergency pathways, they provide reliable illumination and safety compliance.
Fanxstar delivers dual-purpose emergency lighting solutions certified to international standards, featuring instant power failure response, 5-year lifespan, and dedicated technical support for project customization.
Led Emergency Downlights Key Features:
- Architectural style downlight: 4/5/6/7/8/9 Inch
- Complete with 1.2m flex cable & plug for Australia
- Flexible range a clipping from Ø120mm to 240mm
- Five years warranty (subject to terms and conditions)
- 200-240Vac|24-36-48 Vdc Compliant to Centralized power supply
LED Emergency Spotlights Description
Emergency Downlights DX, developed by Fanxstar—a professional China-based LED lighting supplier and factory—blends an elegant circular design with exceptional features, delivering superior energy efficiency and bright illumination. As a reliable factory, Fanxstar ensures this product meets diverse market demands, making it a valuable offering for distributors partnering in lighting projects.
These LED shop downlights boast high protection ratings (IP42/IP54/IP65), equipping them with waterproof, dustproof, and anti-corrosion properties. This allows long-term stable operation in harsh environments like outdoor spaces, humid areas, and industrial sites—perfect for scenarios requiring durable lighting solutions. Available in 6″ and 8″ sizes, they support up to 60W high power and 7200lm lumen output, capable of illuminating entire areas such as lobbies or outdoor corridors, fully meeting specific lighting needs.
Fanxstar, as both supplier and factory, provides two emergency versions for these downlights: conventional models with 2/3/5W manual, automatic, and Dali2.0 functions, plus centralized control emergency systems featuring built-in DC24V/36V low voltage or address controllers. Additionally, the low-voltage trait of the Allstar DX series enables application in special fields like explosion-proof and solar energy storage. For distributors, partnering with Fanxstar means accessing high-quality, versatile downlights backed by a professional factory’s production strength and a supplier’s comprehensive support.
LED Emergency Down Light Fixture Specification
| Item | Part Number | DX-4SZZ-MMK-E/SE | DX-6SZZ-MMK-E/SE | DX-8SZZ-MMK-E/SE |
| Description | LED Waterproof Emergency Downlights | |||
| Working | Mode of Operation | Maintained | ||
| Input | Voltage&Frequency | 220-240Vac, 50/60Hz | 24-48Vdc, 50/60Hz(Optional) | |
| Wiring Connection | Input Power Cable | |||
| Output | Light Source | High lumens SMD2835 | ||
| Color Temperature | MM=27-65 stands for 2700-6500K | |||
| Luminous Flux | 120-140lm/w±10% | |||
| Power Consumption | 10-25W | 20–35W | 30-45W | |
| Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | ||
| Multimode | Emergency, Microwave Sensor as options | |||
| Emergency | Charger | 16hrs charging time with the latest temperature controlled BMS | ||
| Emergency Power | 2W | 3W | 5W | |
| Duration Time | 3hours | |||
| Testing Facility | Manual test, Self test | |||
| Indicators | System status indication through LED indicator | |||
| Physical | Construction | Diffuser – PC, Housing – Die-cast Aluminum | ||
| Mounting | Recessed mounted | |||
| Colour | White RAL9016 | |||
| Dimensions L x W x H(mm) | φ300×58 | |||
| IP/IK Rating | IP65 & IK08 | |||
| Weight | 0.64kg | 0.98kg | 1.45kg | |
| Warranty | 5 years on product, 4 years on batteryt | |||
| Environment | Operating Temperature | 0° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CE, CB, SAA, IEC 60598-1, IEC 60598-2-2, AS/NZS 2293.3 | ||
| AS/NZS 2293 Classification | C0: D63, C90: D63 | C0: D80, C90: D80 | C0: D100, C90: D100 | |
| Electric class(1,2,3) | 1 | |||
| Environment | Dimming Sensor | MSH006R | ||
| Replacement Battery Bodofor® LiFePO4 NTC | P/N: 1120-02|LiFePO4 18650 3.2V 4000mA |
P/N: 1140-02|LiFePO4 18650 3.2V 4000mA |
P/N: 2140-02|LiFePO4 18650 6.4V 4000mA |
|
Never Be Left in the Dark: Ensure Continuous Light with DX Emergency Downlights - Get a Quote!

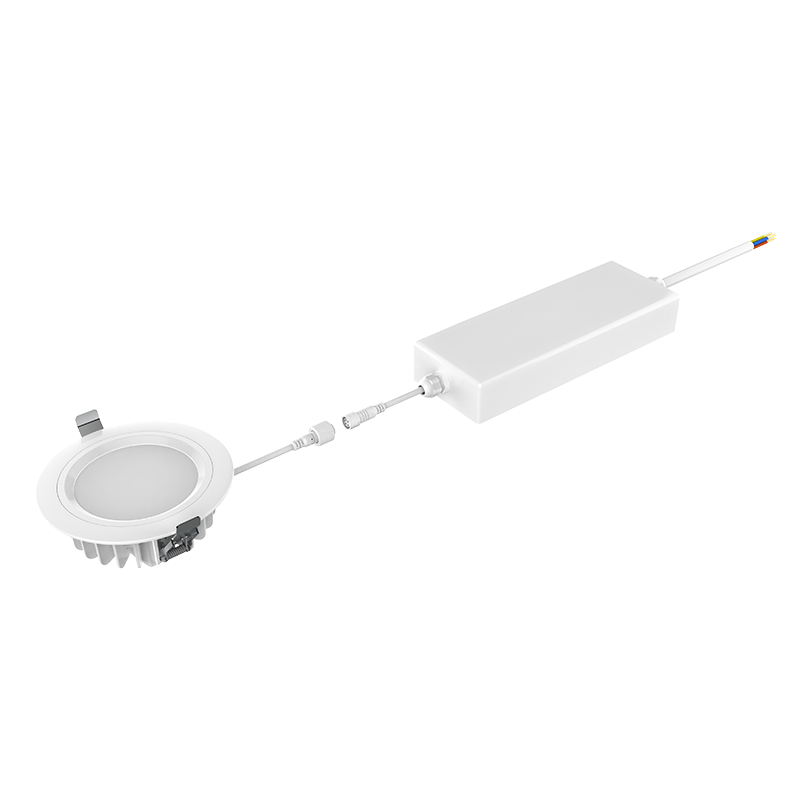

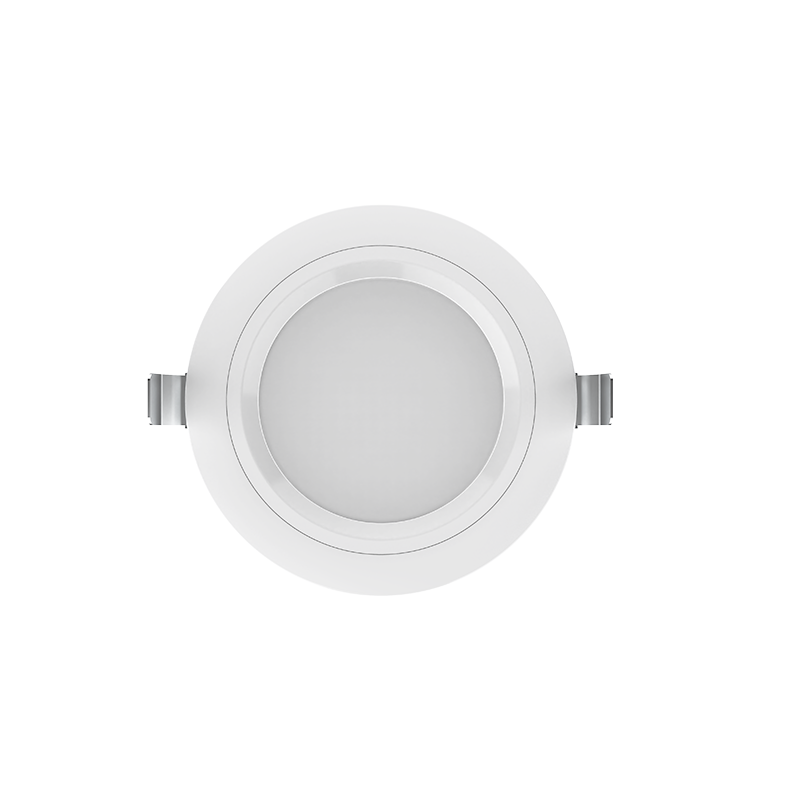

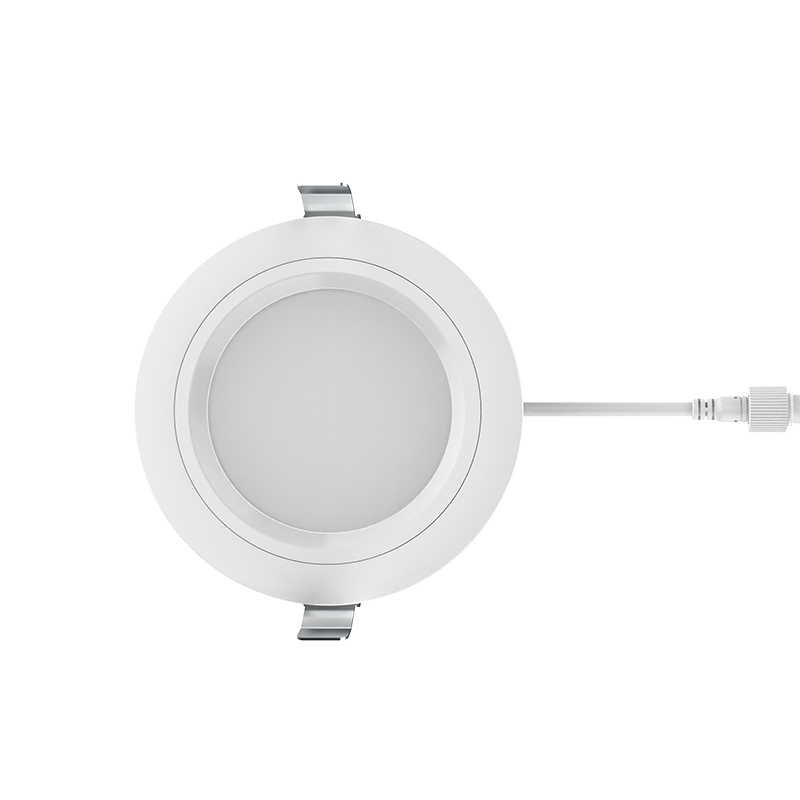

Emergency Spotlights DX Detail Display

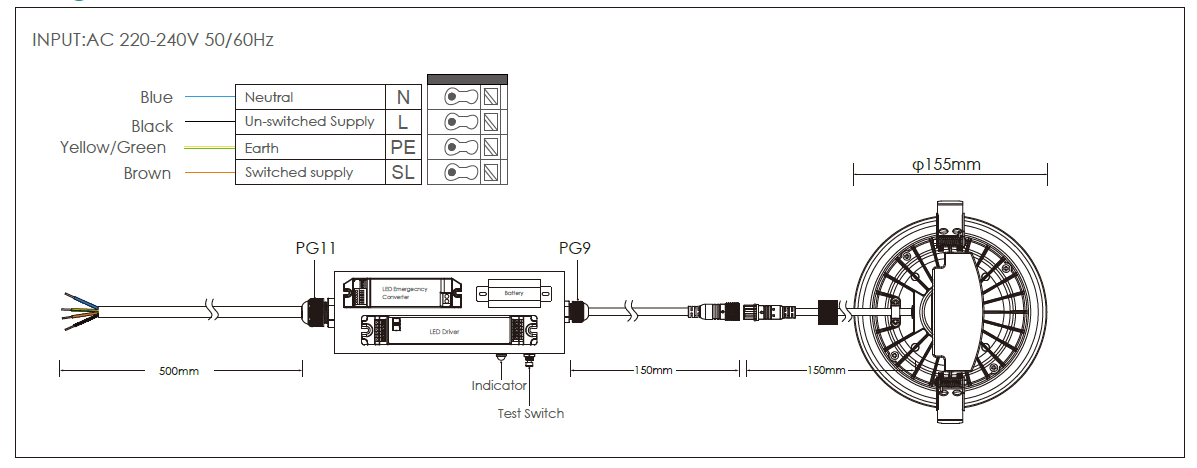

Diagram of Emergency System
Emergency LED Downlights Dimension
Emergency Spotlight Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| φ155×H53mm | 0.64kg | 165x165x68mm | 370x370x380mm | 20pcs | 14.6kg |
| φ210×H58mm | 0.98kg | 220x220x73mm | 450x330x260mm | 10pcs | 11.7kg |
| φ252×H62mm | 1.45kg | 262x262x77mm | 570x380x310mm | 10pcs | 16.2kg |
