Seamless Linkable Aluminum Waterproof Batten A20
Seamless Linkable Aluminum Waterproof Batten A20 are crafted with high-purity extruded aluminum and impact-resistant polycarbonate and applications are industrial lighting, parking garages, warehouses, and cold storage facilities. Fanxstar provides significant energy savings, reduced maintenance costs, and a seamless, continuous lighting solution that enhances safety and visibility.
Weatherproof Fixtures Key Feautres:
- TUV CE/CB certification
- 0.01-100% Professional Dimming
- Extrusion Molding Alumunim Base
- Seamless Connectablity to 33pcs (Max 1000W)
- Long-lifespan with 7 years Warranty
weather-proof Light Description
The Seamless Linkable Aluminum Waterproof Batten A20 series of Waterproof Linkable System—an aluminum-based LED waterproof luminaire developed by Fanxstar, a leading manufacturer, supplier, and exporter of industrial lighting—ensures outstanding durability while delivering exceptional heat dissipation capabilities, a key advantage of its aluminum core design.
As a flagship product from Fanxstar’s specialized factory, the Trilamp A20-DA is an IP65-rated linkable waterproof light equipped with multiple custom-designed accessories, including input power cables, jumping connectors, and seamless connectors. All these accessories comply with international safety regulation certifications, reflecting the manufacturer’s strict quality control standards.
Powered by the OSRAM ETi series power supply, the A20-DA supports DALI 2.0 professional dimming, with a dimming depth of up to 0.01% and excellent dimming consistency—meeting the precise lighting needs of commercial and industrial scenarios. Taking the 1.2-meter 35W model as an example, it allows a maximum of 28 strips to be spliced under 230V, enabling flexible large-area lighting configurations.
In conclusion, the A20-DA delivers bright, uniform illumination, ensuring clear visibility across diverse environments. Whether applied in industrial settings, outdoor areas, or commercial spaces, it provides optimal lighting performance. Available for wholesale through Fanxstar’s global distribution network, this product is backed by the supplier’s reliable supply chain and after-sales support—making it a trusted choice for clients worldwide seeking high-performance dimmable waterproof lighting solutions.
Weatherproof Linear Light Specification
| Item | Part Number | A20-2FTZZ-MMK-DV/DA | A20-4FTZZ-MMK-DV/DA | A20-5FTZZ-MMK-DV/DA |
| Description | Professional Dimming LED Alu. Base Weatherproof Batten | |||
| Working | Mode of Operation | 0-10V or DALI2.0, 0.01-100% Dimming | ||
| Input | Voltage&Frequency | 220-240Vac, 50/60Hz | ||
| Wiring Connection | 5PIN Input cable, Seamable connector, 1 or 2 Meters Jumper | |||
| Output | Light Source | High lumens SMD 2835R | ||
| Color Temperature(MM) | MM=27-65 stands for 2700-6500K | |||
| Luminous Flux | 140lm/w±10% | |||
| Power Consumption(ZZ) | 10-30W | 40-60W | 60-80W | |
| Controls | Protection | Overcharge, low voltage disconnects, overcurrent, short circuit | ||
| Multimode | DALI2.0 Sensor, 0-10V Dimmable as options | |||
| Physical | Construction | Diffuser – high transmission opal polycarbonate, chassis -polycarbonate | ||
| Mounting | Surface mounted – ceiling / wall / Suspendl | |||
| Colour | Aluminum color | |||
| Dimensions L x W x H(mm) | 600x64x68 | 1200x64x68 | 1500x64x68 | |
| IP/IK Rating | IP65 & IK10 | |||
| Weight | 1.05kg | 1.72kg | 2.43kg | |
| Warranty | 5 years on product | |||
| Environment | Operating Temperature | -30° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CB/CE/SAA | ||
| Accessories | Dimming Sensor | MS010/MS010R/MS010ER | ||
| Romote Control | MR003 | |||
Get a Quote for Maintenance-Free Lighting: The Durable, Seamless A20 LED Batten
Seamless Linkable Aluminum Waterproof Batten A20 Detail Display

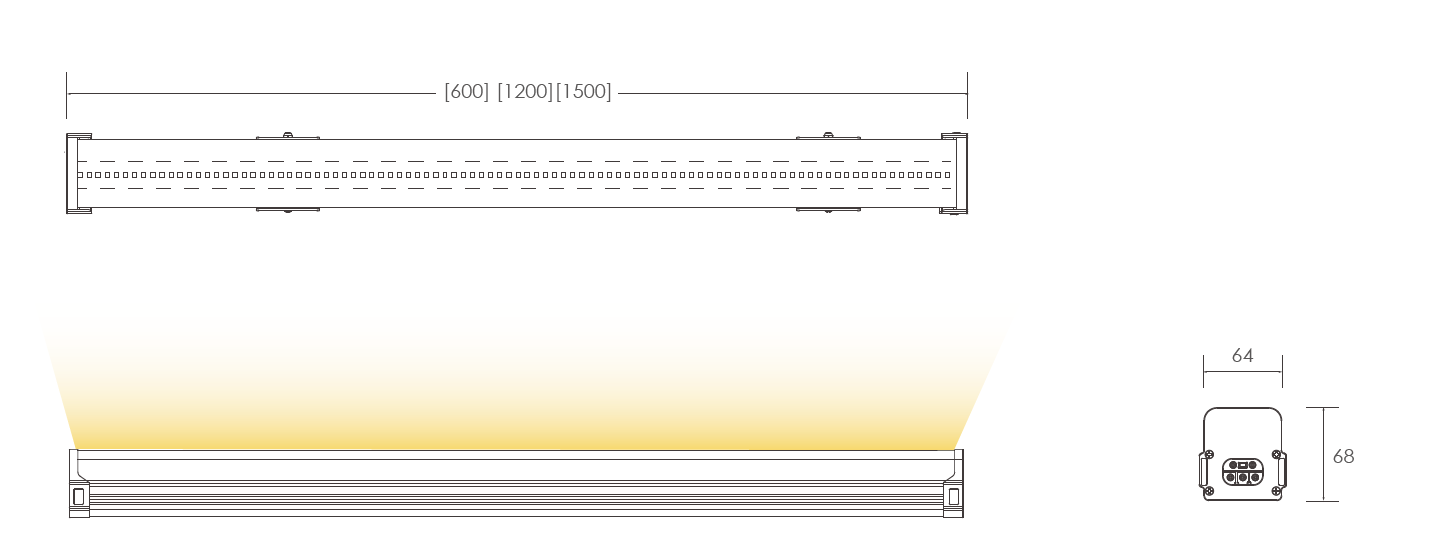

Alu LED Tri-proof Luminaires Dimension
Waterproof Lamp Fitting Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600×64×68mm | 1.05kg | 670x70x73mm | 680x305x255mm | 9pcs | 10.5kg |
| 1200×64×68mm | 1.72kg | 1270x70x73mm | 1280x305x255mm | 9pcs | 21.3kg |
| 1500×64×68mm | 2.43Kg | 1570x70x73mm | 1580x305x255mm | 9pcs | 26.7kg |

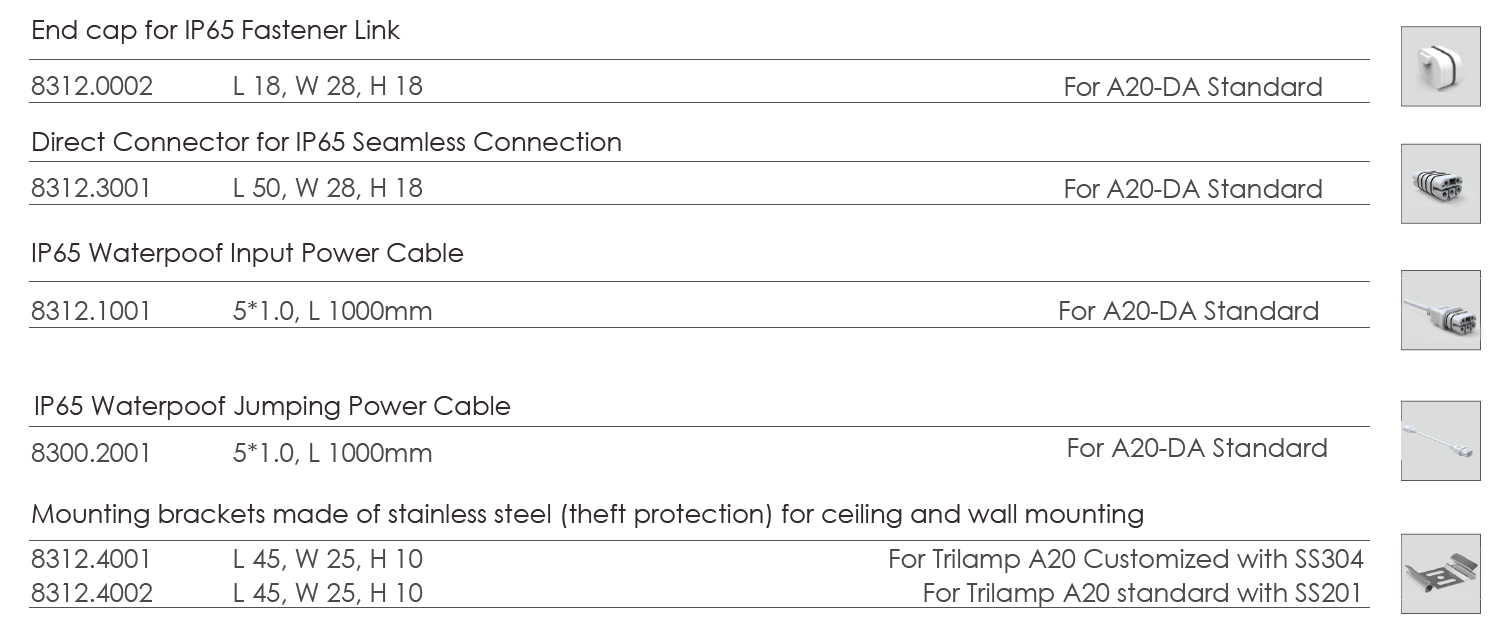

Seamless Weatherproof Lamp Accessories
