Self-test Surface Mounted LED Emergency Lamp X4
The Self-test Surface Mounted LED Emergency Lamp X4 is constructed from high-grade, fire-retardant Polycarbonate plastic for its diffuser and housing, providing essential illumination during power failures to ensure safe egress and continuous operation in critical environments; Fanxstar, as a professional LED emergency lighting manufacturer and supplier, delivers this state-of-the-art emergency lighting solution with a superior combination of innovation, safety, and value, while guaranteeing its reliability and compliance to meet global B-end clients’ and distributors’ needs.
Non-maintained EM Light Key Feautres and Benefits:
- High quality OSRAM LED chip 3W
- Large Terminal blocks for easy installation
- Interchangeable optical circle & corridor lens
- Self-contained with two options: manual test, self-test
- High quality reliable smart replaceable battery: LiFePO4 3.2V 1600/3400mA
Round Emergency Surface Mounted Fixture Description
The Fanxstar Xlite X4 is a professional self-test surface mounted LED emergency lamp for clients use, fully compliant with international standards: EN55015 (EMC), EN61347 (LED driver safety), EN60598-2-22 (emergency lighting), and LiFePO4 battery standards IEC62133/EN62620/UN38.3. This multi-standard certification ensures global regulatory adherence, helping clients mitigate compliance risks and streamline project approvals.
Its key advanced self-test function enables proactive maintenance and annual duration tests with results logged and status shown via LED indicators. This ensures EN60598-2-22 compliance, detects issues early, and cuts unplanned downtime/labor costs.
Ideal for a wide range of commercial, industrial, and public settings, Including Office Buildings, Hotels, Schools, Universities, Shopping malls, Retail Stores, Factories, Warehouses etc.
The Fanxstar Xlite X4 is the optimal choice for businesses seeking intelligent, reliable, code-compliant emergency lighting—combining compliance, automation, and durability for seamless operations.
Rechargeable Emergency Light Specifications
| Item | Part Number | X4S23& | X4S33& |
| Description | Self-test Surface Mounted LED Emergency Downlight | ||
| Working | Mode of Operation | Non-Maintained | |
| Input | Voltage&Frequency | 220-240Vac, 30mA|50/60Hz | |
| Installation | Large Terminal Blocks – 923 | ||
| Output | Light Source | High Lumens 3535 1x6W | |
| Luminous Flux | 160lm | 300lm | |
| Power Consumption | 2.0W(Standy), 1.1W(Emergency) | 3.0W(Standy), 2.4W(Emergency) | |
| Emergency Duration | ＞ 180minutes | ||
| Controls | Charger | 16hrs intelligent 3-stage charger with battery management system | |
| Emergency | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | |
| Testing Facility | Self test | ||
| Indicators | Battery charger green LED, Function failure through red LED. | ||
| Physical | Material | 850°C Glow wire test Flame-retardant polycarbonate | |
| Mounting | Surface mounted – ceiling | ||
| Finishing Color | &=W/B/G, W: white, B: black, G: Grey | ||
| Dimensions LxWxH | Disc: 150mm diameter, Height: 44mm | ||
| IP Rating | IP20 | ||
| Weight | 245g | ||
| Warranty | 5 years on product, 4 years on battery | ||
| Environment | Operating Temperature | 0° to 50°C | |
| Relative Humidity | 0 to 95% | ||
| Compliance | Standards | CE/UKCA, EN 55015, EN 61347, EN 60598-2-2 | |
| Electric class (1, 2, 3) | 2 | ||
| Accessories | Replaceable Battery | P/N: 1116-01|Bodofor® 18650 LiFePO4 3.2V 1600mA 01 | P/N: 1134-01|Bodofor® 26650 LiFePO4 3.2V 3400mA 01 |
Get Reliable, Self-Testing Emergency Lighting – Request Your Free Quote for the X4 Today!
Ensure continuous safety and compliance with our advanced X4 LED Emergency Lamp. Submit your inquiry now to receive a customized solution and competitive pricing.

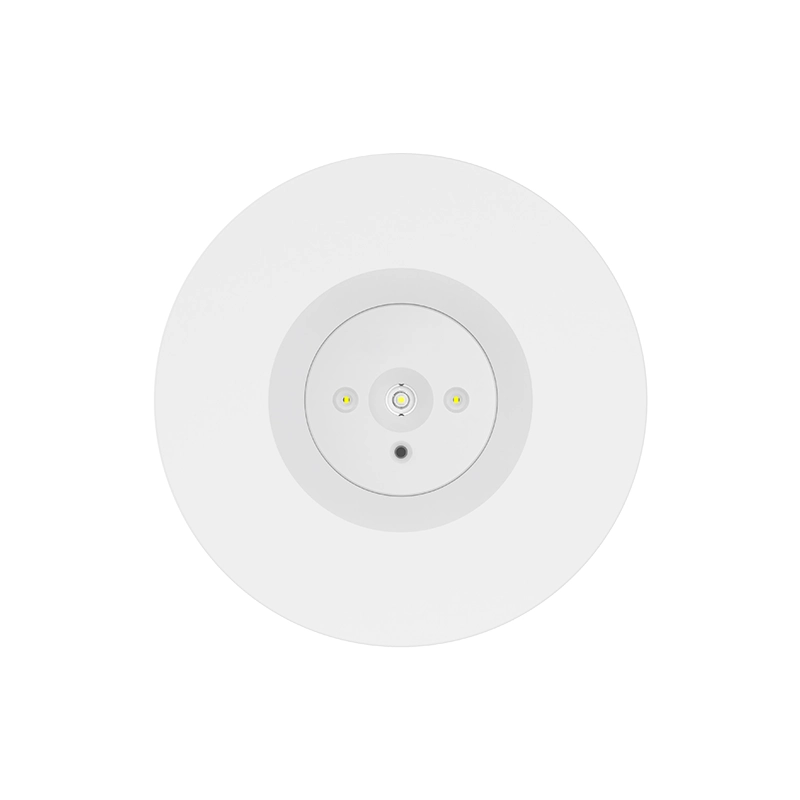

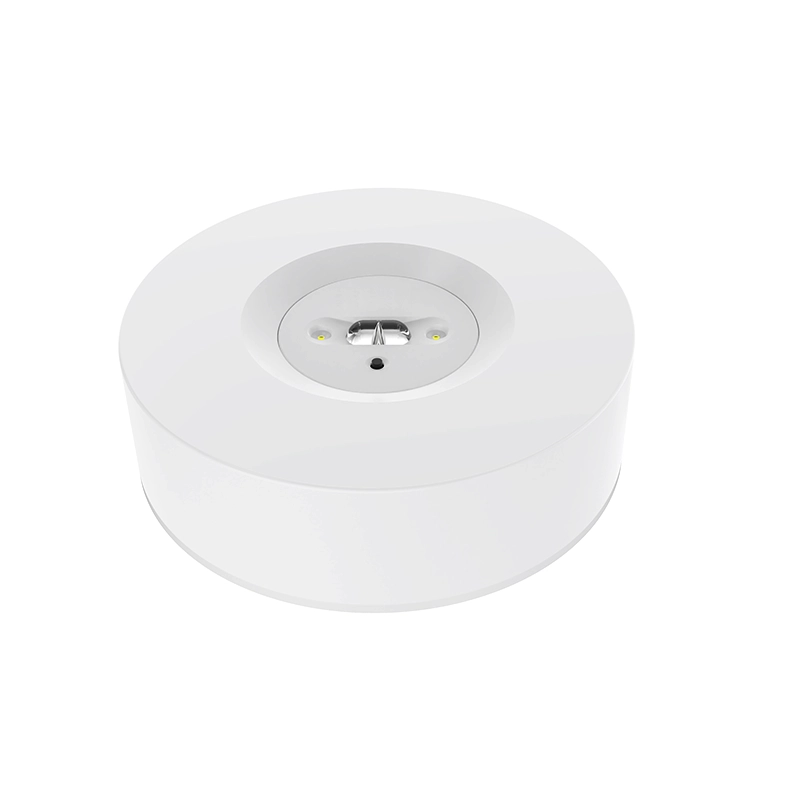

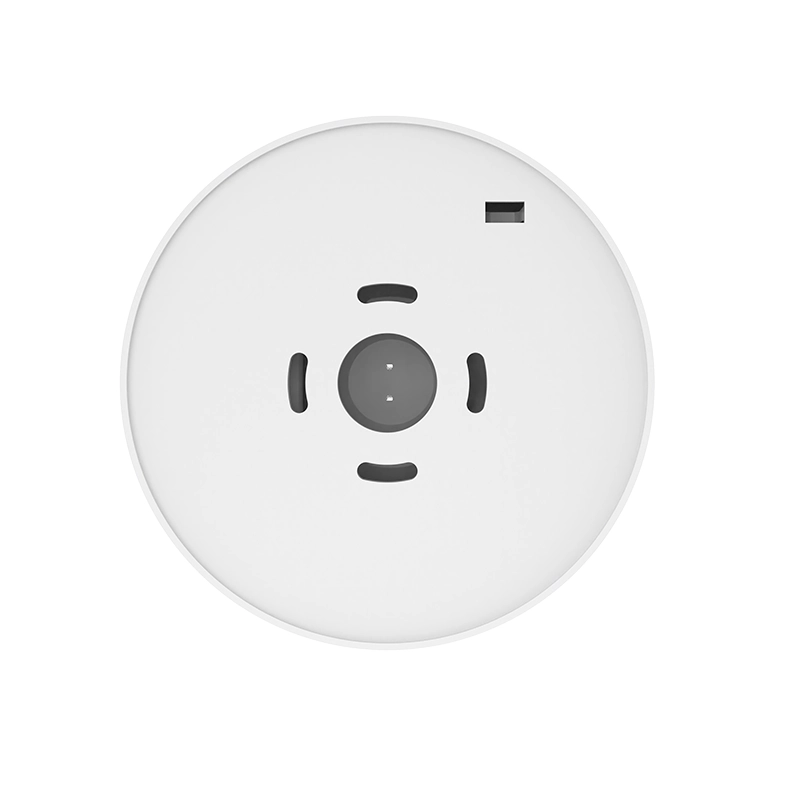

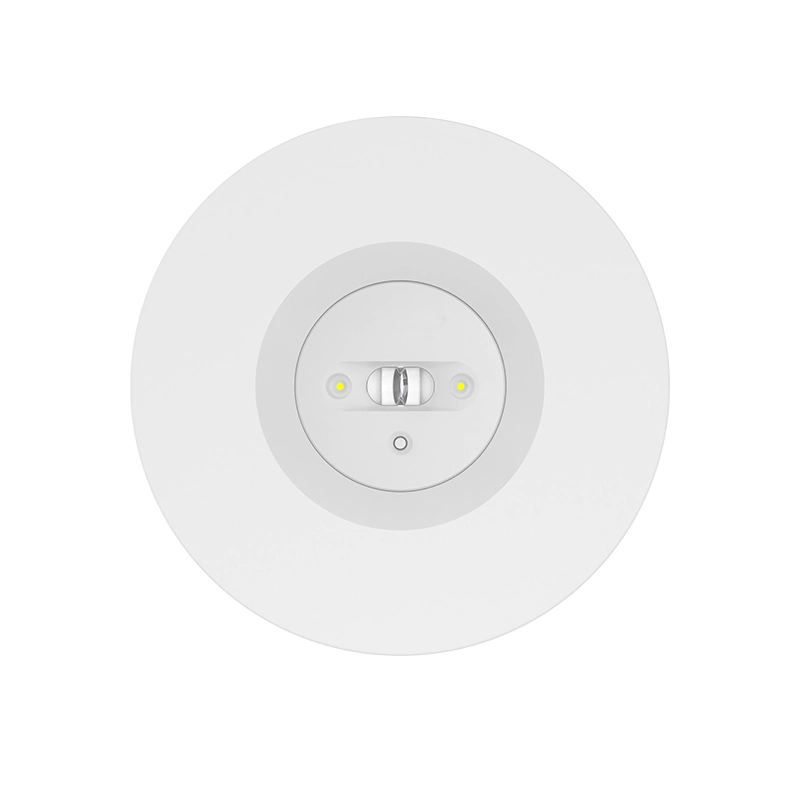

Emergency Light Best Xlite X4 Detail Display
Rechargeable Emergency Lamp Dimension
Emergency Lighting Non-maintained Packing List
| Single Size (D*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| φ150x44mm | 0.245 | 250x210x45mm | 520x450x240mm | 20pcs | 10.54kg |
