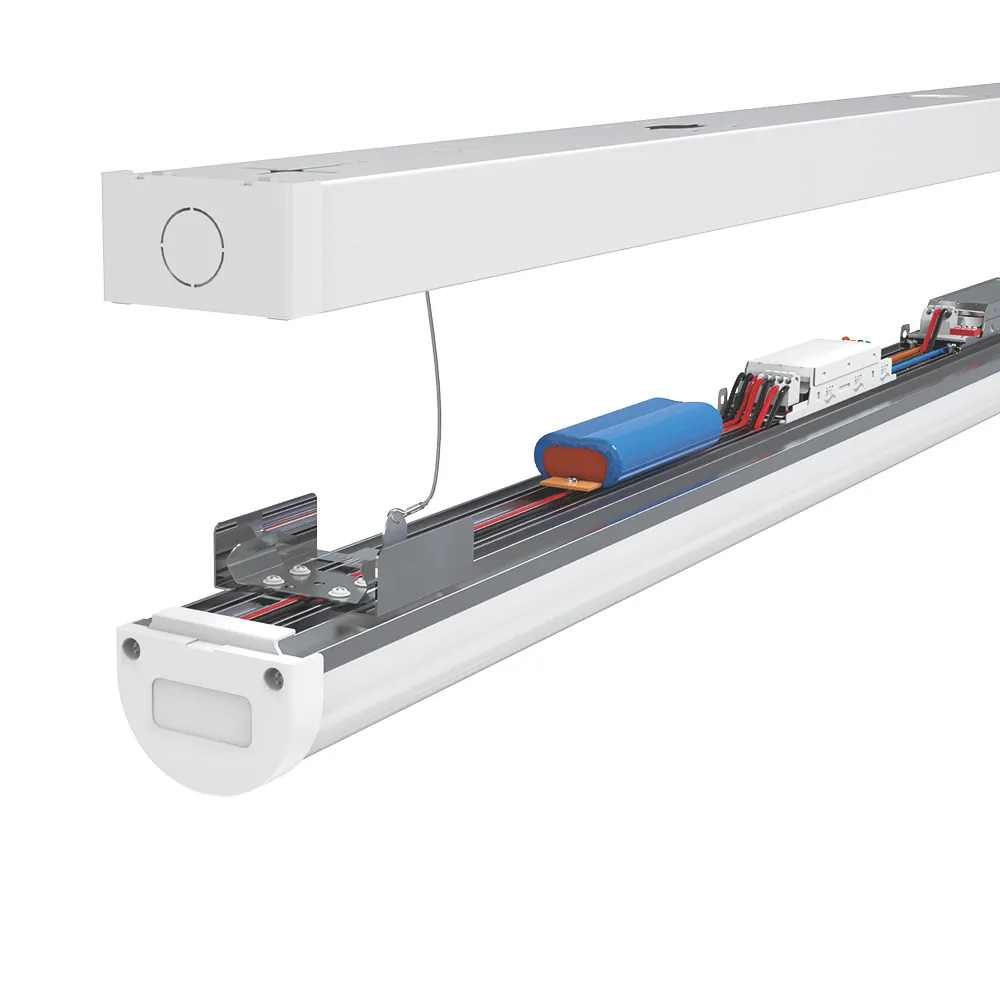

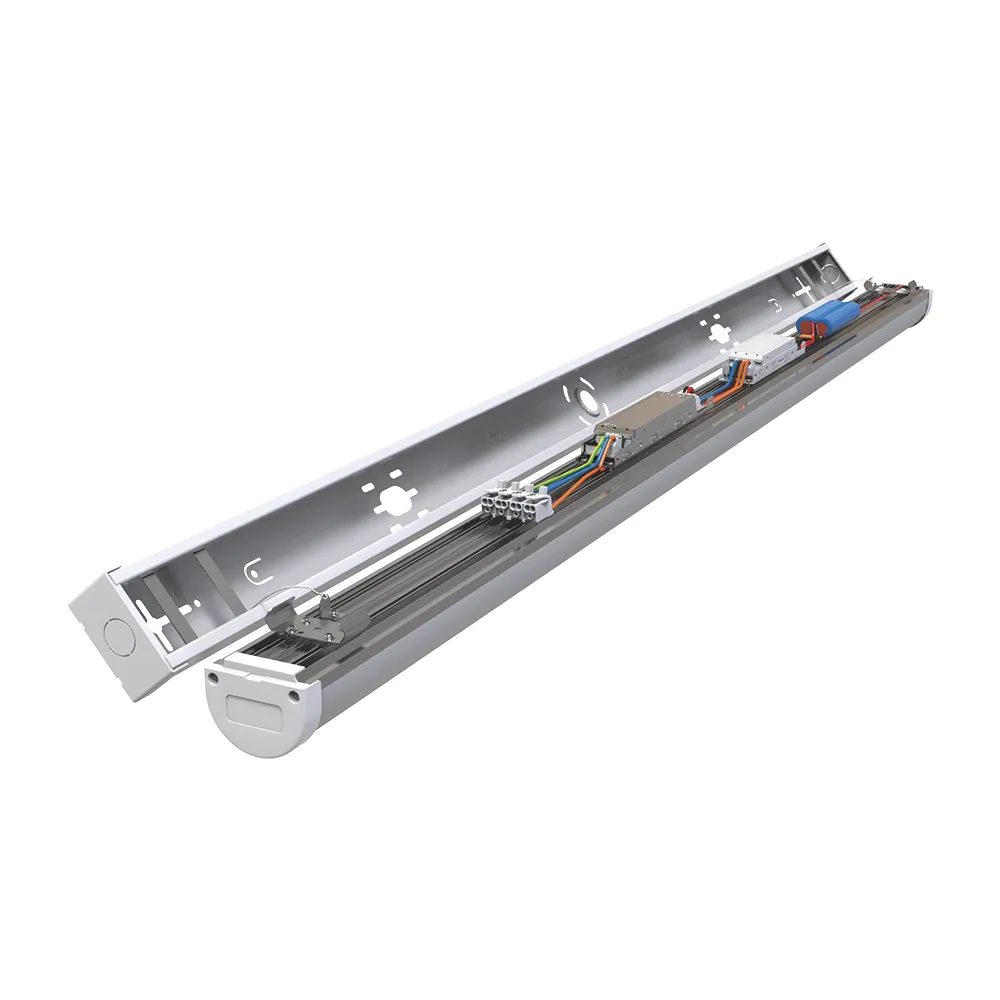

Classic LED Emergency Linear Batten B2
Classic LED Emergency Linear Batten B2 features an aluminum body, Bridgelux® K24 driver and LiFePO4 Battery . Ideal for warehouses, corridors, and commercial spaces, it provides motion sensor and emergency backup. As a manufacturer, Fanxstar offers custom lengths/CCT, bulk pricing, and reliable performance for global distributors and projects.
- LED Linear Fixtures Key Features and Benefits
Aluminum Housing with PC Diffuser - Both rear and end cable entry are available
1:1 replacement for 1/2-tubes T5/T8 fluorescent - Normal Lighting and Emergency Lighting Solutions
- Maintained emergency moudlu with anti panic lens
- Dual PD Sensor (Daylights and LEDs) and on/off sesnor options
- LiFePO4 2W3HRS/4W1.5HRS emergency battery technologies
- Bridgelux® K24 EMG Technology dirver and Manual Test and Self-Test optional
Linear Led Emergency Light Description
The Classic LED Emergency Linear Batten B2 integrates high-performance aluminum housing with a durable PC diffuser, offering versatile installation through rear or end cable entry. It serves as a direct 1:1 replacement for traditional T5/T8 fluorescent fixtures while providing both normal and emergency lighting functions. Equipped with LiFePO4 battery technology, it delivers reliable emergency illumination (2W3HRS/4W1.5HRS), and features Bridgelux® K24 EMG drivers for stable performance. Options like dual PD sensors (daylight and occupancy sensing) and maintained emergency modules with anti-panic lenses make it adaptable to diverse commercial environments.
Designed for warehouses, schools, hospitals, and retail spaces, the B2EM solves key challenges such as energy efficiency, regulatory compliance, and easy retrofitting. Its universal design eliminates the need for structural modifications during installation, reducing time and labor costs. As a manufacturer, Fanxstar provides customizable lengths, diffuser styles, and emergency configurations to meet specific project requirements, supported by bulk supply capabilities for large orders.
Targeting electrical distributors, contractors, and project developers, Fanxstar ensures competitive pricing, timely delivery, and certified quality (CE, ISO). We empower our partners with flexible OEM/ODM services, helping them expand their lighting portfolio with a reliable, future-proof product. Contact us for technical details and project collaboration opportunities.
Led Pendant Emergency Linear Light Specification
| Item | Part Number | B2-2FTZZ-MMK-EM/EMS | B2-4FTZZ-MMK-EM/EMS |
| Description | Sensor&Emergency 2-in-1 Linkable Classic Fixture Batten | ||
| Working | Mode of Operation | Maintained | |
| Input | Voltage&Frequency | 220-240Vac, 50/60Hz | |
| Wiring Connection | Large Terminal blocks | ||
| Output | Light Source | High lumens SMD2835 | |
| Color Temperature | MM=27-65 stands for 2700-6500K | ||
| Luminous Flux | 140lm/w±10% | ||
| Power Consumption | 10-24W | 28-45W | |
| Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | |
| Multimode | Standy, Microwave Sensor and Emergency | ||
| Emergency | Charger | 16hrs charging time with the latest temperature controlled BMS | |
| Emergency Power | 2/4W | 2/4W | |
| Duration Time | 1.5/3 hours | 1.5/3 hours | |
| Testing Facility | Manual test, Self test | ||
| Indicators | System status indication through Green LED indicator | ||
| Physical | Construction | Diffuser – PC, Housing – Aluminum 6063 | |
| Mounting | Surface mounted – ceiling / wall / Suspend | ||
| Colour | White RAL9016 | ||
| Dimensions L x W x H(mm) | 600x64x80 | 1200x64x80 | |
| IP/IK Rating | IP20 & IK08 | ||
| Weight | 1.1kg | 1.6kg | |
| Warranty | 5 years on product, 4 years on battery | ||
| Environment | Operating Temperature | 0° to 50°C | |
| Relative Humidity | -10 to 95% | ||
| Compliance | Standards | SAA/RCM, IEC 60598-1, IEC 60598-2-2, AS/NZS 2293.3 | |
| AS/NZS 2293 Classification | C0: D63, C90: D63 | C0: D80, C90: D80 | |
| Electric class(1,2,3) | 1 | ||
| Accessories | Microwave Dimming Sensor | P/N: MC004-S01, MD001E as options | |
| Replacement Battery | P/N: 2116-02|Bodofor® 18650 LiFePO4 6.4V 1600mA 02 | ||
Inquiry of Classic Emergency Fixture
All-in-One Emergency Linear Batten B2EM – Simplify Installation & Meet Code
Emergency Led Linear Strip Light Fixture Dimensions
Surface Mounted Emergency Linear Light Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600×64×80mm | 1.1kg | 610x75x90mm | 625x280x260mm | 9pcs | 10.9kg |
| 1200×64×80mm | 1.6kg | 1210x75x90mm | 1225x280x260mm | 9pcs | 16.5kg |
