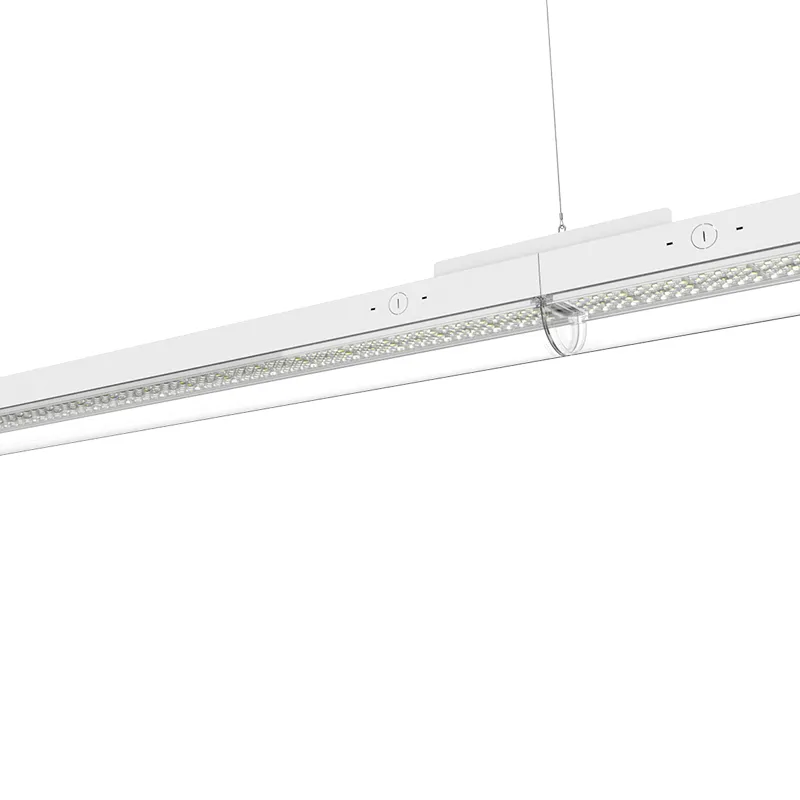

External Motion Sensor Splice Battens B4
Fanxstar’s External Motion Sensor Splice Battens B4 are crafted with high-quality die-casting aluminum housing for superior heat dissipation and durability. They are specifically designed for indoor lighting environments. Applications include office buildings, commercial and retail spaces, entertainment venues, theaters, and libraries. Fanxstar provides superior advantages such as excellent illuminate performance, robust build quality for long-term reliability, and integration capabilities for smart lighting systems and various scenes.
LED Linear Light Key Features and Benefits:
- 5/7 Years Warranty
- Aluminum Based for 74000h@L80

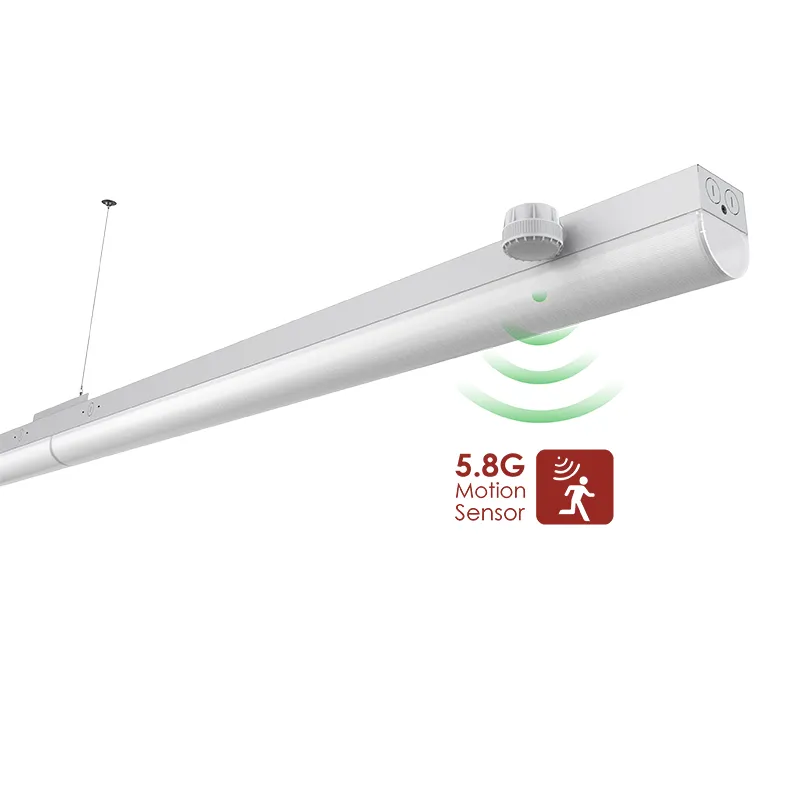

- External 5.8G Microwave Motion Sensor
- 100-277Vac Full Voltage&Flicker-Free ＜1%
- Both rear and end cable entry are available
- Series connection according to project needs
- 1:1 replacement for 1/2-tubes T5/T8 fluorescent
Linear LED Fixture Batten Description
External Motion Sensor Splice Battens B4 is a full-voltage, flicker-free classic LED batten fixture with comprehensive performance upgrades. Supporting 100-277Vac wide voltage, it achieves flicker-free eye-protective lighting and ultra-high energy efficiency up to 140lm/w. Its aluminum-based design ensures excellent heat dissipation, delivering a long service life of 74000h@L80, far outperforming traditional fixtures and reducing replacement/maintenance frequency.
Widely used in industrial workshops, warehouses, parking lots, supermarkets, offices, schools and hospitals, the B4 series enables 1:1 direct replacement for T5/T8 fluorescent tubes in renovation projects—no major circuit modification needed, greatly cutting transformation costs and time. It offers more affordable pricing, better quality stability and superior energy efficiency than traditional tubes, significantly lowering users’ long-term electricity expenses.
Boasting FANXSTAR’s signature outstanding lighting quality, the B4 series meets diverse needs with practical functions and reliable after-sales support. Designed for the latest centralized control systems, it complies with EL emergency standards, fulfilling 110V/230V central emergency lighting requirements. It supports both rear and end cable entry for flexible installation, optional external 5.8G microwave motion sensor for intelligent control, and offers a 5/7-year warranty for user peace of mind.
LED Pendant Linear Light Specification
| Led Linear Specifications data with 600mm length | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Extra | B4-2FTZZ-MMK-X | 2′ Diffused LED Batten light , Voltage200-240V 50/60Hz, ZZ=10-20W, 80CRI, 27-65K | 2700-6500K | 140 lm/W |
| Led Linear Specifications data with 1200mm length | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Extra | B4-4FTZZ-MMK-X | 4′ Diffused LED Batten light , Voltage200-240V 50/60Hz, ZZ=20-40W, 80CRI, 27-65K | 2700-6500K | 140 lm/W |
| Led Linear Specifications data with 1500mm length | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Extra | B4-5FTZZ-MMK-X | 5′ Diffused LED Batten light , Voltage200-240V 50/60Hz, ZZ=40-60W, 80CRI, 27-65K | 2700-6500K | 140 lm/W |
Get Your Custom Quote for Motion-Sensor Battens
Upgrade to Smart, Self-Contained Lighting: Request Pricing for External Motion Sensor Battens.
LED Linear Lighting Fixture Dimensions
Linear Led Fixture Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600×83×70mm | 1.5kg | 610x85x78mm | 625x280x260mm | 9pcs | 15.6kg |
| 1200×83×70mm | 1.8Kg | 1210x85x78mm | 1225x280x260mm | 9pcs | 17.8kg |
| 1500×83×70mm | 2.2kg | 1510x85x78mm | 1525x280x260mm | 9pcs | 21.7kg |
