High Lumen LED Bulkhead Fitting Q2
IP65 Waterproof Emergency Bulkheads ensure reliable, robust lighting for B2B clients in demanding conditions, offering superior resilience and safety.
Weatherproof Emergency Bulkhead Key Feautres:
- High protection on IP65
- High quality reliable smart battery : LiFePO4 3.2V 1600mA
- Compact and decorative design to 24M
- Quick installation, tool-free maintenance
- Self-contained luminaries with Manual Test and Self Test
- Replaceable and customizable pictogram, available on single or double-sided
High Lumen IP65 Industrial Self-contained LED Emergency Bulkhead
As a supplier, we offer the High Lumen LED Bulkhead Fitting Q2, a TUV CB CE and RoHS verified lighting solution. These bulkheads provide high lumen output (up to 650lm) and reliable emergency backup, thanks to their NTC LiFePO4 smart battery. Available in black or white, their compact, decorativedesign and customizable pictogram options meet diverse aesthetic needs. Ideal for B2B clients seeking quick installation and tool-free maintenance, these self-contained luminaries ensure safety and compliance.
IP65 LED Emergency Bulkhead Technical Specifications
| IP65 LED Emergency Bulkhead Technical Specifications | |||
| Item | Part Number | Q2M4W | Q2S4W |
| Description | Self-contained LED Emergency IP65 Bulkhead | ||
| Working | Mode of Operation | Maintained or Non-Maintained | |
| Input | Voltage&Frequency | 220-240Vac, 30mA|50/60Hz | |
| Installation | Terminal Blocks | ||
| Output | Light Source | High performance LEDs, 100,000 hours | |
| Luminous Flux | 240lm ± 10% | ||
| Power Consumption | 4.5W(Standby) | ||
| Emergency Duration | ＞ 180minutes | ||
| Controls | Charger | 16hrs intelligent 3-stage charger with battery management system | |
| Emergency | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | |
| Testing Facility | Manual test | Self test | |
| Indicators | Battery charger green LED, Function failure through red LED. | ||
| Physical | Material | 850℃ Glow wire test Flame-retardant polycarbonate | |
| Mounting | Surface mounted – wall or ceiling | ||
| Finishing Color | White RAL9016 | ||
| Dimensions LxWxH | 345mm x 120mm x 70mm | ||
| IP Rating | IP65 | ||
| Weight | 0.62kg | ||
| Warranty | 5 years on product, 4 years on battery | ||
| Environment | Operating Temperature | 0° to 50°C | |
| Relative Humidity | 0 to 95% | ||
| Compliance | Standards | CE/UKCA, IEC 60598-1, IEC 60598-2-2 | |
| Electric class (1, 2, 3) | 2 | ||
| Accessories | Replaceable Battery | P/N: 1116-01|Bodofor® 18650 LiFePO4 3.2V 1600mA 01 | |
Get an Instant Quote on Emergency Bulkhead
Enhance Safety. Request a Bulkhead Quote.
EM Bulkhead Q2 Detail Display

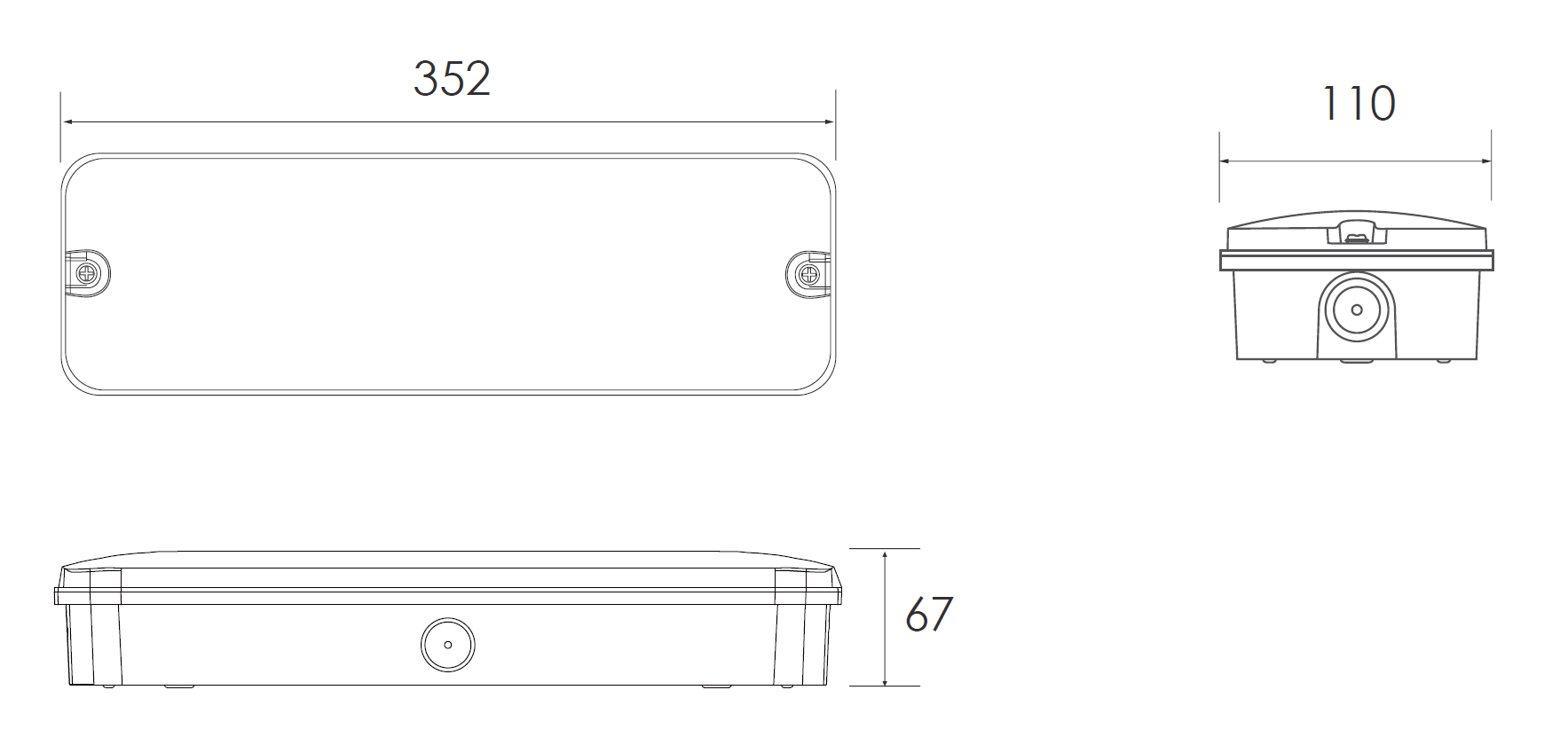

High Lumen IP65 Industrial Self-contained Dimension
LED Emergency Bulkhead packing list
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 345x120x70mm | 1.05kg | 351x127x80mm | 510x425x370mm | 20pcs | 15.3kg |
LED Emergency Bulkhead Application Area
IP65 Waterproof Emergency Bulkheads are uniquely suited for several applications due to their robust design and reliable performance:
- Outdoor and Harsh Environments: Their primary application is in areas exposed to weather, such as building exteriors, parking garages, and loading docks, where standard lighting fixtures would fail.
- Emergency Exits and Escape Routes: These bulkheads provide essential illumination for emergency exits in commercial and residential buildings, ensuring safe evacuation during power outages.
- High-Traffic Public Areas: Ideal for use in schools, hospitals, and shopping centers, where durability and consistent performance are critical.
- Industrial Settings: Factories, warehouses, and manufacturing plants benefit from the bulkhead’s resistance to dust and moisture, ensuring reliable lighting for safety and productivity.
- Transportation Facilities: Suited for train stations, airports, and bus terminals, providing dependable lighting in areas with constant activity and potential exposure to the elements.
