Smart Sensor Bulkhead Light Clite C300S
Smart Sensor Bulkhead Light Clite C300S are produced with high-transmittance PC material and delivers intelligent illumination for marine docks, commercial, industrial, and residential public areas.anxstar provides IP65 submersible-grade protection, adaptive microwave sensor control, and OEM/ODM customization with global certifications (CE, ROHS, DNV GL) and 24/7 maritime lighting technical support.
Motion Led Ceiling Lighting Key Features and Benefits
- IP65 LED Circular Lighting
- Following RF Grouping Motion Sensor
- Ultra-thin Design: Height only 60mm
- Options: PIR Sensor/ Emergency battery+ Sensor
- Precise Motion Detection with 0.5s Fast Response
Motion Detector Bulkhead Description
The Smart Sensor Bulkhead Light Clite 300S is a patented product by Fanxstar—a professional lighting manufacturer and supplier. It features a two-in-one integrated design of mask and lamp body, with an independent fixed mounting tray for easy installation.
As a core product for Fanxstar’s supply portfolio, the C300 is equipped with long-life, high-efficacy 2835R LEDs and a reliable LED driver, ensuring consistent performance for commercial and industrial use cases.
Blending a sleek circular design with outstanding functionality, the C300 delivers superior energy efficiency and frameless brightness, boasting a 180° to 270° wide beam angle with zero shadows—perfect for scenarios requiring uniform illumination. From premium material selection and structural height optimization to the integration of induction and emergency functions, Fanxstar’s design of the C300 focuses on creating exceptional cost-effectiveness: practical without redundancy, reliable yet affordable, fully aligning with B-end clients’ pursuit of high-value lighting solutions.
With an IP65 waterproof rating—among the top protection levels for bulkhead lights—the C300 excels in damp, dusty, or semi-outdoor environments such as parking garages, basements, outdoor balconies, and bathrooms. Currently available for sale via Fanxstar’s wholesale channels, this product supports bulk orders for property developers, facility management companies, and construction contractors, solidifying Fanxstar’s position as a trusted supplier for commercial lighting projects.
Smart Motion Sensor Ceiling Lighting Specification
| Item | Part Number | C300-RZZ-MMK-S | C300-RZZ-MMK-S |
| Description | IP65 LED Circular Motion Sensor Light | ||
| Working | Mode of Operation | 5.8G Microwave Sensor | |
| Input | Voltage&Frequency | 220-240Vac, 50/60Hz | |
| Wiring Connection | Large Terminal blocks | ||
| Output | Light Source | High lumens SMD2835 | |
| Color Temperature | MM=27-65 stands for 2700-6500K | ||
| Luminous Flux | 140lm/w±10% | ||
| Power Consumption | 10-16W | 15-24W | |
| Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | |
| Multimode | Rmote with MR004/MR013 | ||
| Physical | Construction | Diffuser – PC, Housing – PC or PC+ABS | |
| Mounting | Surface mounted – ceiling / wall | ||
| Colour | White RAL9016 | ||
| Dimensions L x W x H(mm) | φ300×58 | ||
| IP/IK Rating | IP65 & IK08 | ||
| Weight | 1.25kg | 1.45kg | |
| Warranty | 3/5 years on product | ||
| Environment | Operating Temperature | 0° to 50°C | |
| Relative Humidity | -10 to 95% | ||
| Compliance | Standards | CE/SAA/RCM, IEC 60598-1, IEC 60598-2-2 | |
| Electric class(1,2,3) | 1 | ||
Get Free Quote of Smart Sensor Bulkhead Light Clite 300S
Optimize Your Space with Fanxstar C300S Smart Sensor Ceiling Lamp: Long-Life, Weatherproof & Certified – Inquiry Now for Tailored Solutions

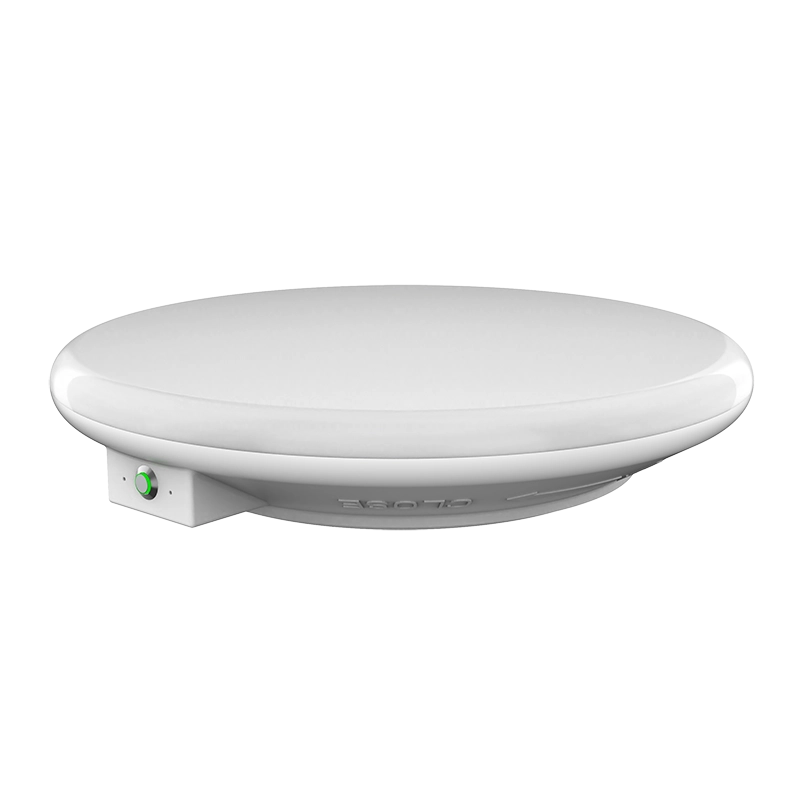

Smart Sensor Bulkhead Light Clite 300S Detail Display

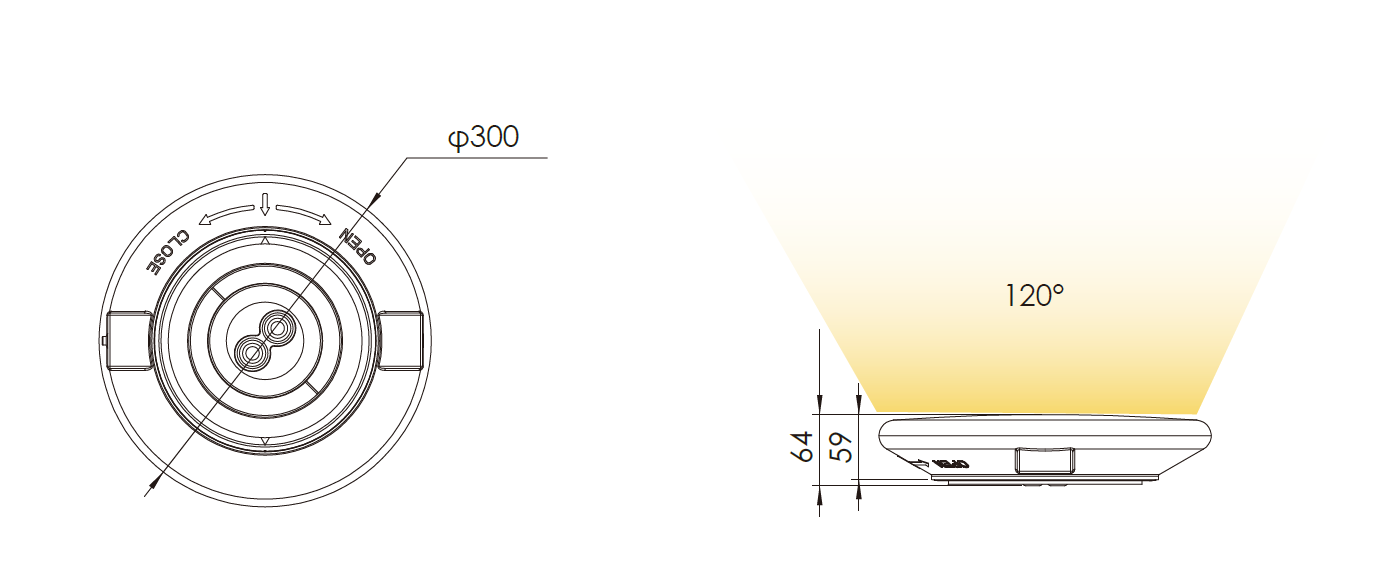

Motion Detector Ceiling Light Dimensions
Ceiling Motion Detector Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| φ300×58mm | 0.75kg | 315×315×70 | 630x325x410mm | 12pcs | 12.2kg |
