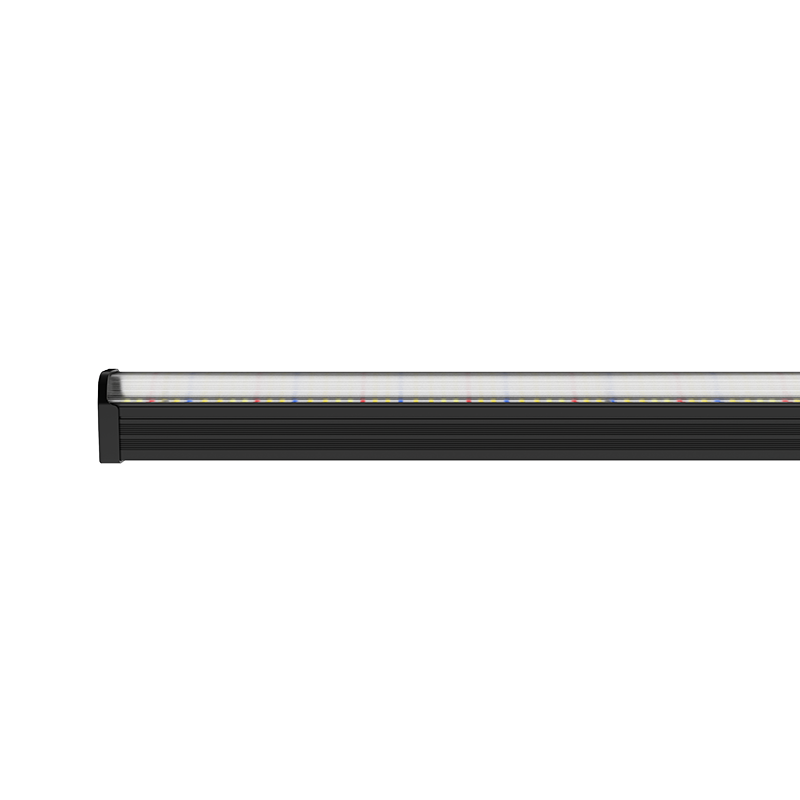

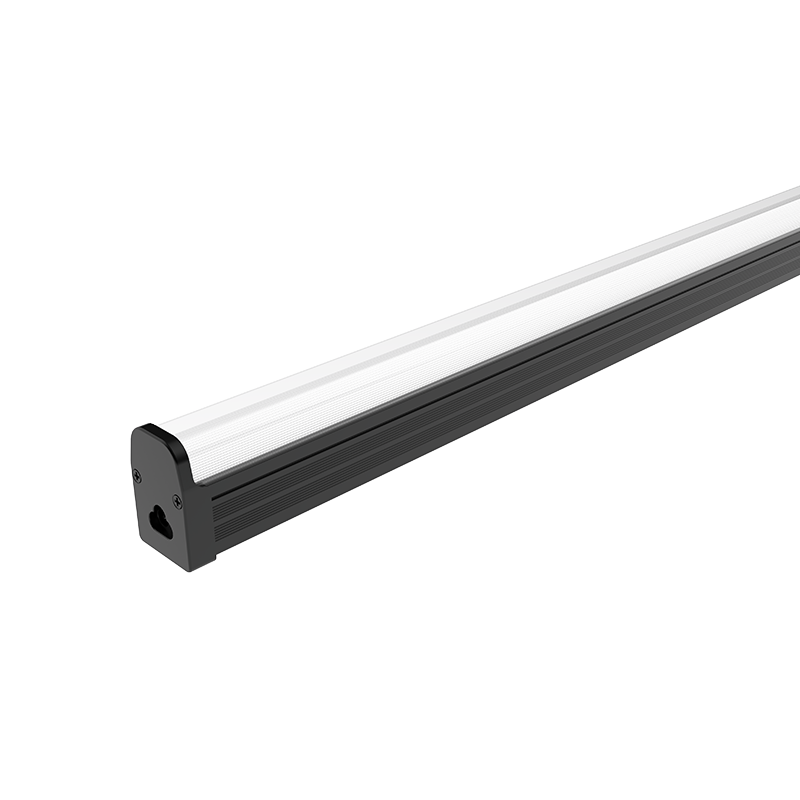

Black Linear Light Ceiling M4N
Fanxstar’s Black Linear Light Ceiling M4N, are bulit with precision-extruded Aluminium 6063,delivers seamless architectural integration for modern commercial and residential spaces, combining minimalist aesthetics with robust performance. Fanxstar ensures superior customization (OEM/ODM), rigorous quality control, and technical support for lighting designers and project developers.
LED Linear Luminaires Key Features and Benefits:
- 5 Years Warranty
- High Efficacy: 140lm/w
- Extrusion Black Aluminum Housing
- Seamless splicing linear lighting system
- ENEC approved Flicker-free driver
Linear Lighting Fitting Description
Fanxstar’s Black Linear Light Ceiling M4N are meticulously crafted using high-grade precision-extruded Aluminium 6063, ensuring a scratch-resistant, corrosion-proof structure and efficient heat dissipation that extends the LED lifespan. These fixtures feature low-profile LED light strips (with dimmable 0-10V/DALI options) and are paired with a slim black PC cover to achieve unobtrusive ceiling installation and even light distribution.
The M4N is specifically tailored for modern architectural lighting scenarios. It enables seamless ceiling integration, complementing the minimalist aesthetics of commercial spaces.
With years of expertise as a linear lighting manufacturer and factory, Fanxstar offers the M4N series featuring key advantages, ensuring it meets the diverse project demands of global B-end clients such as lighting designers, interior decorators, and property developers.
Magnetic Linear Light Specification
| Item | Part Number | M4-2FT20-MMK-N | M4-4FT40-MMK-N | M4-5FT60-MMK-N |
| Description | Multi-purpose seamless splicing linear lighting system | |||
| Working | Mode of Operation | Null(Stand) | ||
| Input | Voltage&Frequency | 220-240Vac, 50/60Hz | ||
| Wiring Connection | Series connection | |||
| Output | Light Source | High lumens SMD2835 | ||
| Color Temperature | MM=27-65 stands for 2700-6500K | |||
| Luminous Flux | 140lm/w±10% | |||
| Power Consumption | 20W | 40W | 60W | |
| Controls | Protection | Overcharge, low voltage disconnects, overcurrent, short circuit | ||
| Multimode | On/off, Brightness Control | |||
| Physical | Construction | Alu6063+PC | ||
| Mounting | Surface mounted – ceiling / wall / Suspend | |||
| Colour | Black RAL9005 | |||
| Dimensions L x W x H(mm) | 600×38×57 | 1200×38×57 | 1500×38×57 | |
| IP/IK Rating | IP20 & IK08 | |||
| Weight | 0.73kg | 0.95kg | 1.15kg | |
| Warranty | 5 years on product | |||
| Environment | Operating Temperature | -20° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CB/CE/UKCA/RCM | ||
| Accessories | Standard | BK01M4, IPC3XM4, SC03M4 | ||
| Optional | JP03M4 | |||
Get Custom-Length Linear Lighting & Expert Support for Your Project
Linear LED Fixtures
Linear Lighs Dimensions
LED Linear Fitting Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600×38×57mm | 0.73kg | 670x41x61mm | 690x230x150mm | 10pcs | 9.7kg |
| 1200×38×57mm | 0.95kg | 1270x41x61mm | 1290x230x150mm | 10pcs | 12.3kg |
| 1500×38×57mm | 1.15kg | 1570x41x61mm | 1590x230x150mm | 10pcs | 14.7kg |
Led Linear Lighting Accessories
