D50 Recessed 2-in-1 LED Emergency Spotlight X1
D50 Recessed 2-in-1 LED Emergency Light X1 is engineered with high-purity PC material and tempered glass for exceptional heat dissipation, durability, and safety. Combining recessed lighting and emergency functionality, it ensures seamless illumination and reliable performance during critical situations. Fanxstar delivers innovative, code-compliant, and energy-efficient lighting solutions backed by rigorous testing and global certifications.
Emergency Lighting Fixtures Key Feautres and Benefits:
- SAA and AS/NZS2293 verified
- 2-in-1 cutout size for 75mm & 125mm
- High quality Bridgelux SMD 5050 LED chip 5W
- Self-developed high quality optical lenses D50 240lm
- High quality reliable smart battery : LiFe PO4 3.2V 1600mA
- Accessories with AU standard high-quality 1.2m AC plugs
- IP20 Protection, relies on end-products enclosure for protection against accidental contact live part.
Recessed Emergency Downlight X1 Description
The D50 Recessed 2-in-1 LED Emergency Light X1 is equipped with high-quality Bridgelux SMD LED chips and two optional lenses , plus white/black color options to meet diverse client demands. And this serie integrates emergency and general lighting functions, enabling seamless installation in industrial and commercial environments. As a high-efficiency LED general lighting option, it supports manual/self-test switching via DIP switcher, aviable with two versions :manual tese and self-test. It complies with strict standards including IEC 60598-1, IE60598-2-22, AS/NZS60598, AS/NZS60598.2.22, and AS/NZS 2293.3, ensuring reliability.
Fanxtar’s emergency light Xlite series are rated for shopping malls, offices,airports, subways,parking garages, warehouses and factories, where robust, maintenance-free lighting is essential.
Paired with the Bodofor LiFePO4 Battery Pack, it offers a 4-year warranty and intelligent battery management via smart IC—featuring over-charge, over-current, short-circuit, and deep discharge protection to extend battery life and ensure safety.
Non-maintained Emergency Fitting Technical Specifications
| Item | Part Number | X1M23& |
| Description | D40/D50 LED Switchable Recessed Emergency Light | |
| Working | Mode of Operation | Non-Maintained |
| Input | Voltage&Frequency | 220-240Vac, 30mA|50/60Hz |
| Installation | Complete with 1.2m flex cable & AC plugs | |
| Output | Light Source | Birdgelux SMD5050 1x5W |
| Luminous Flux | D40: 200lm, D50:268lm | |
| Power Consumption | 2.0W(Standy), 1.6W(Emergency) | |
| Emergency Duration | ＞ 180minutes | |
| Controls | Charger | 16hrs intelligent 3-stage charger with battery management system |
| Emergency | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit |
| Testing Facility | Manual test | |
| Indicators | Battery charger green LED, Function failure through red LED. | |
| Physical | Material | 850℃ Glow wire test Flame-retardant polycarbonate |
| Mounting | Recessed – ceiling, 75 – 125mm cut-out | |
| Finishing Color | &=W/B/G, W: white, B: black, G: Grey | |
| Dimensions LxWxH | Disc: 95mm or 145mm diameter, Height: 26mm | |
| IP Rating | IP20 | |
| Weight | 0.245kg | |
| Warranty | 5 years on product, 4 years on battery | |
| Environment | Operating Temperature | 0° to 50°C |
| Relative Humidity | 0 to 95% | |
| Compliance | Standards | SAA/RCM, IEC 60598-1, IEC 60598-2-2, AS/NZS 2293.3 |
| AS/NZS 2293 Classification | C0 D50, C90 D50 | |
| Accessories | Replaceable Battery | P/N: 1116-01|Bodofor® 18650 LiFePO4 3.2V 1600mA 01 |
Request Your Quote: D50 Emergency Fixtures - Uninterrupted Protection, Built to Last

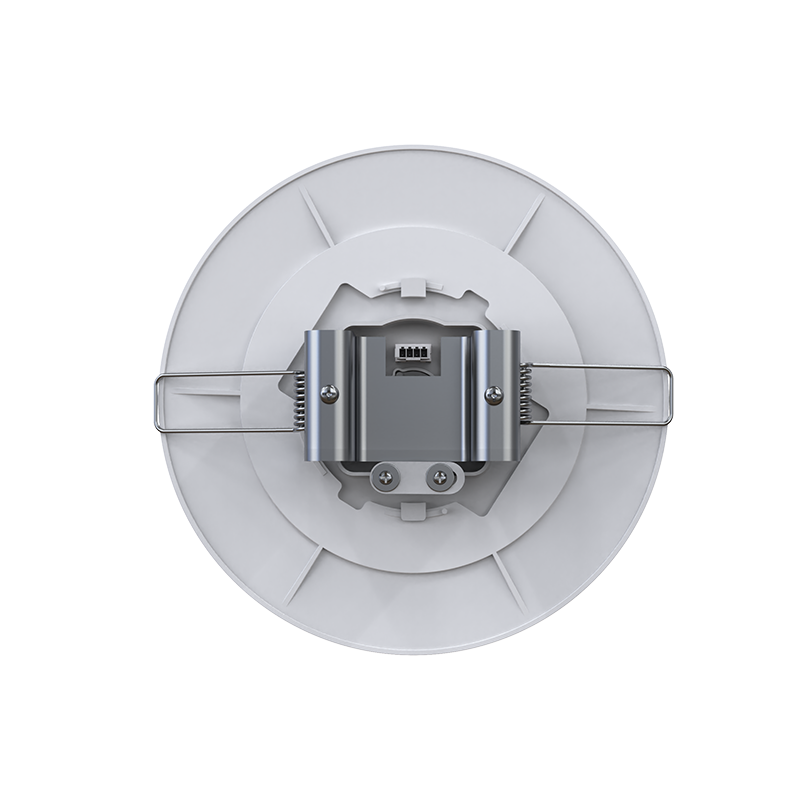

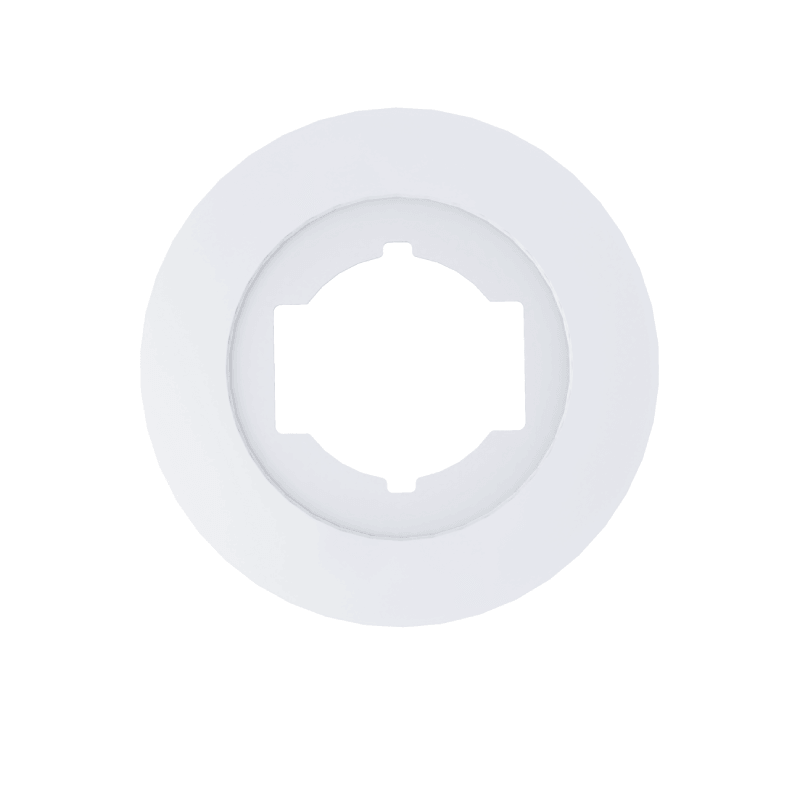

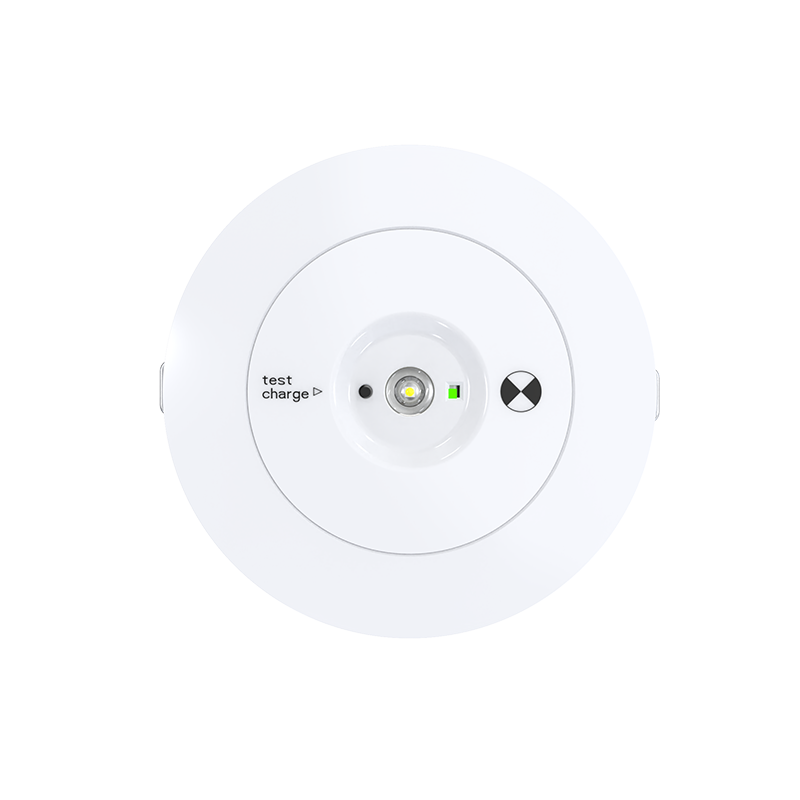

D50 Recessed Best Emergency Light X1 Detail Display

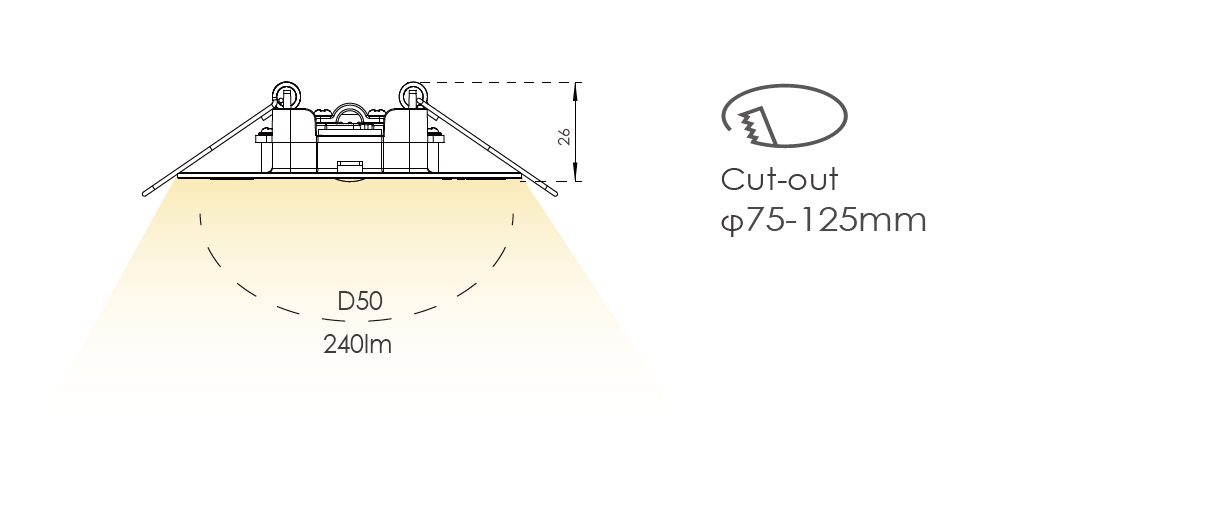

Emergency Escape Light Dimension
LED Emergency Lumianires Packing List
| Single Size (D*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| φ145x34mm | 0.245kg | 250x210x45mm | 520x450x240mm | 20pcs | 10.54kg |
