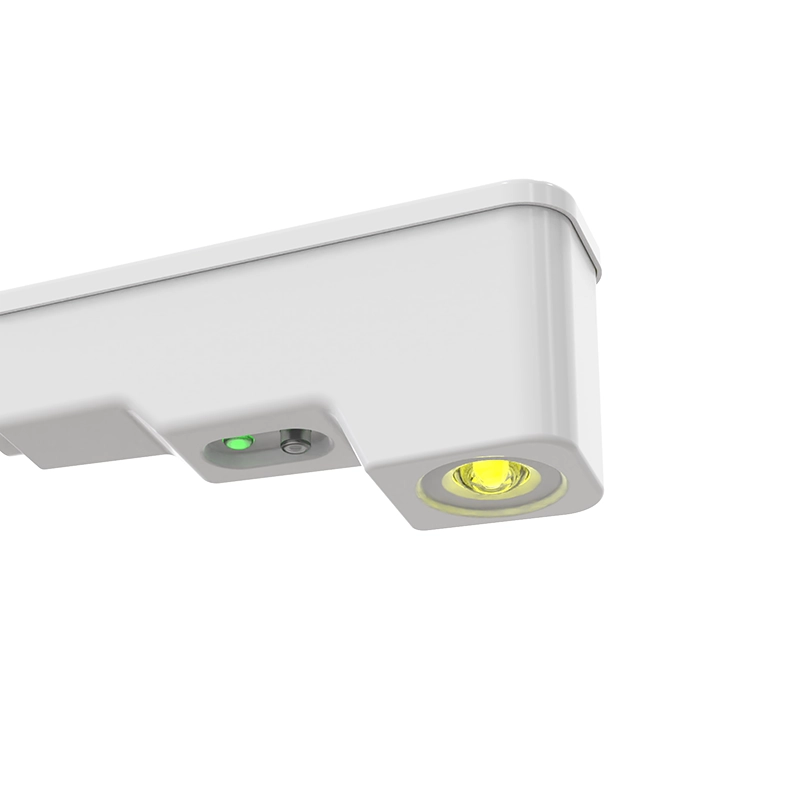

Side-Mounted IP65 LED Emergency Light Module D5W
Side-Mounted IP65 LED Emergency Light Module D5W is crafted from high-impact resistant PC material and engineered for seamless integration into a wide range of linear lighting systems.
Fanxstar ensures your peace of mind by delivering uncompromising safety, ease of installation, and a commitment to certified quality that reduces total cost of ownership
Waterproof Emergency Light Module Key Feautres and Benefits:
- Non-Maintained
- Class ll, IP65

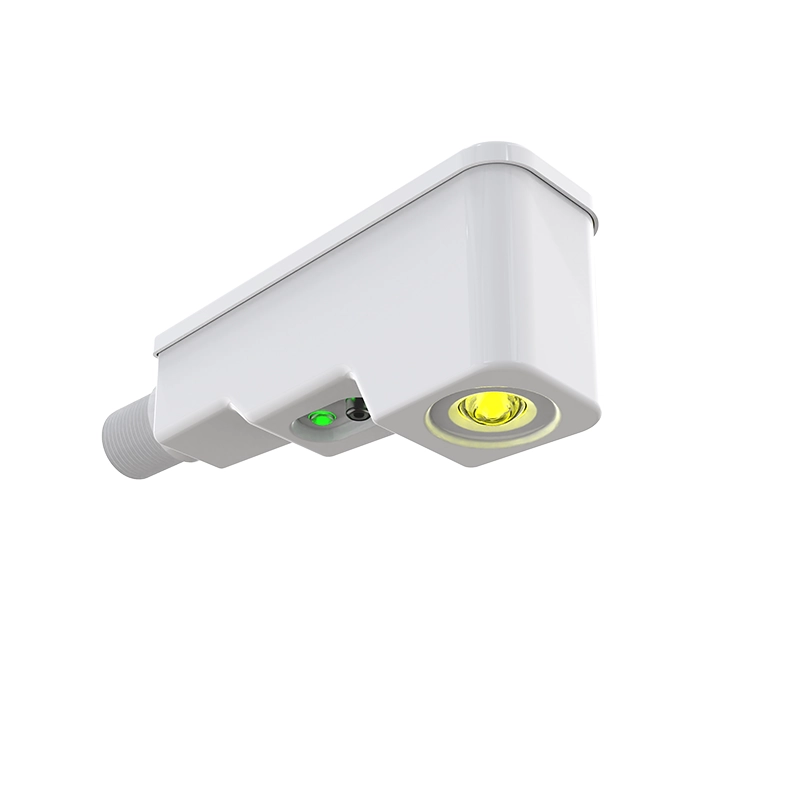

- Easy to install via 20mm conduit / gland entry and supplied extension tube

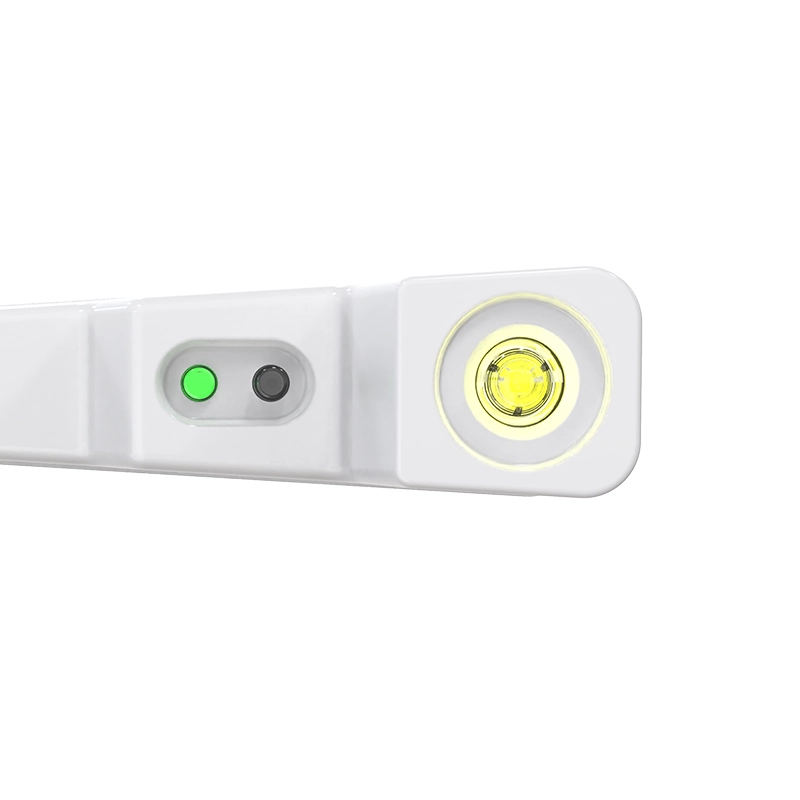

- Built-in green charging indicator
- Available in white or grey
- Compatible with interior batten, anti-corrosive linear luminaires
- Complaint to AS/NZS2293.3
Led Emergency Module Description
The Side-Mounted IP65 LED Emergency Light Module D5W we supply is a robust, non-maintained emergency lighting solution designed for demanding environments. Rated at IP65, it is fully protected against dust and water jets, ensuring reliable operation in humid or outdoor conditions. The module is equipped with a built-in green charging indicator and is available in white or grey to suit various aesthetic requirements. Compliant with AS/NZS 2293.3 and lit by Lumileds, it offers dependable illumination when needed most.
Installation is simplified thanks to its compatibility with 20mm conduit/gland entry and a supplied extension tube, reducing labor time and cost. This module is ideal for use in interior battens and anti-corrosive linear luminaires, making it suitable for a wide range of applications such as industrial facilities, commercial corridors, car parks, and other settings where backup lighting and corrosion resistance are essential.
As a professional manufacturer, Fanxstar designs this module to help electrical distributors, lighting contractors, and facility management companies meet safety standards while minimizing installation and maintenance efforts. Key dimensional and performance details are summarized in the attached datasheet for full technical evaluation.
IP65 LED Emergency Fitting Technical Specifications
| Product Code | D5W |
| Input Power (max) | 5 W |
| Voltage | 20-24 Vac 50/60 Hz |
| Input Current (max) | 800 mA |
| Output Wattage | 2-4 W as Emergency Converter&Battery |
| Protection | Class ll, lP65 |
| Luminous FluX(max) | 500 lm |
| Beam Angle | 150° |
| CCT(MM) | MM=5700K(Default), 2700-6500K as options |
| Lifetime | 54,000 h |
| Warm-up time to 60% | Instant full light |
| LMF at Nominal Lifetime | 0.75 |
| Dimensions | 146 mm x 41mm x 56mm |
| Mounting | Product add-on, Side-mount |
| Ambient Temperature Range | 0 to 50 °C |
Simplify Installation & Ensure Reliable Emergency Lighting with the Eside D5W Module
Plug-in Emergency Light Dimension
Non-Maintained Emergency Light Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 331x187x39mm | 0.8kg | 360x220x85mm | 740x450x240mm | 10pcs | 9.1kg |
