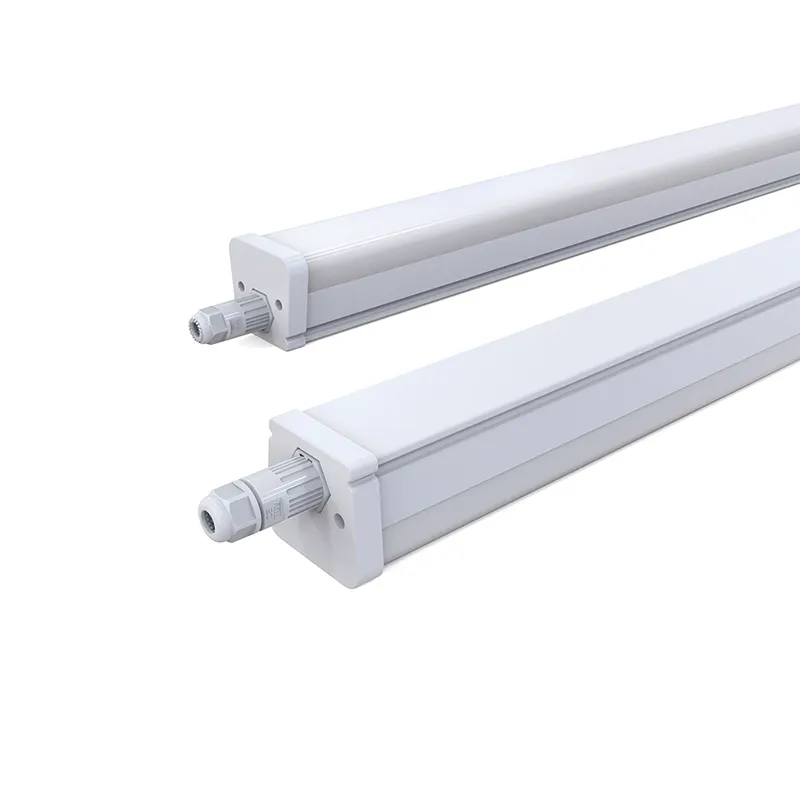

Toolless Wire LED Lamp Waterproof A16
Toolless Wire LED Lamp Waterproof A16 are designed to make inventory reserve, CCT+DIP version can support 12 skus in one. Fanxstar provides the fastest installation on the market, drastic reductions in maintenance costs, and exceptional longevity that outperforms competitors.
LED Tri-proof Luminaires Key Features and Benefits:
- Toolfree Quick Wiring in sceconds
- External CCT+DIP Design for 12-Skus-in one
- Multi-power adjust via external waterproof DIP switch
- Tri-CCT as 3000K-4000K-5700K for redcuce your skus stocks
- Mini body and Maintained a wide light-emitting area
- Anti-UV PC and AL6063 inside
LED Lamp Waterproof Description
As a professional LED lighting manufacturer and factory, Fanxstar supplies the Toolless Wire LED Lamp Waterproof A16—an IP65 waterproof batten series equipped with two-two linkable quick connectors, making it an ideal choice for global projects. This design enables tool-free installation, significantly lowering both installation costs and long-term maintenance costs for clients.
The Trilamp A16 adopts longer-lifespan, higher-efficacy 2835R LEDs and a highly efficient, reliable LED driver (180-264Vac input, flicker-free performance>1%), ensuring stable performance. Its compact 57*62mm mini body features optimized packaging, allowing up to 10K units per 40HQ container—perfect for wholesale bulk supply and large-scale project delivery.
This innovative structure not only reduces manufacturing costs for Fanxstar (as the source factory) but also minimizes on-site wiring costs for clients and boosts installation efficiency.
For quality assurance, every A16 undergoes strict IP65 waterproof testing before leaving the factory; additionally, rubber plugs are provided for non-use ends to accommodate clients’ diverse needs for independent use or multi-unit splicing, further enhancing the series’ adaptability for supply scenarios.
LED Weatherproof Luminaire Datasheet Specification
Ordering Guide
- Weatherproof Linkable Luminaires | Trilamp A16
- Type of Protection: IP65
- Protection Class: II
- Impact Protection: IK08
- Beam Angle: 120°
- 80CRI Standard And 90CRI Optional
- Specifications using 5000K and subject to change. All parameters +/- 5%.
Specifications data with 600mm length
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Extra | A16-2FT18-MMK-X | 2’ LED Weatherproot Batten light, Voltage 220-240V 50/60Hz, Power=18W, 80CRI, MM=27-65K |
2700-6500K | 140 lm/W |
| CCT+DIP | A16-2FTZZ-MMK-CP | 2’ LED Weatherproot Batten light, Voltage 220-240V 50/60Hz, ZZ=DIP Power: 8/14/17/20W, MM=CCT: 3000K-4000K-5700K, 80CRI |
2700-6500K | 140 lm/W @ 4000K |
Specifications data with 1200mm length
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Extra | A16-4FT36-MMK-X | 4’ LED Weatherproot Batten light, Voltage200-240V 50/60Hz, 36W, 80CRI, 27-65K LED Qty 198pcs,varies by driver |
2700-6500K | 140 lm/W |
| CCT+DIP | A16-2FTZZ-MMK-CP | 4’ LED Weatherproot Batten light, Voltage 220-240V 50/60Hz, ZZ=DIP Power 16/28/34/40W, MM=CCT: 3000K-4000K-5700K, 80CRI |
2700-6500K | 140 lm/W @ 4000K |
Specifications data with 1500mm length
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Extra | A16-5FT54-MMK-X | 5’ LED Weatherproot Batten light, Voltage200-240V 50/60Hz, 54W, 80CRI, 27-65K LED Qty 288pcs,varies by driver |
2700-6500K | 140 lm/W |
| CCT+DIP | A16-2FTZZ-MMK-CP | 5’ LED Weatherproot Batten light, Voltage 220-240V 50/60Hz, ZZ=DIP Power 36/48/54/60W, MM=CCT: 3000K-4000K-5700K, 80CRI |
2700-6500K | 140 lm/W @ 4000K |
Slash Labor Costs with Toolless Installation. Get Pricing Now.
Toolless Wire LED Lamp Waterproof A16 Detail Display
LED Tri-proof Fitting Dimensions
Waterproof Tube Fixtures Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 648x62x57mm | 0.45kg | 662x68x63mm | 685x365x272mm | 20pcs | 10.5kg |
| 1248x62x57mm | 0.86kg | 1262x68x63mm | 1285x365x272mm | 20pcs | 18.8kg |
| 1548x62x57mm | 1.05kg | 1562x68x63mm | 1585x365x272mm | 20pcs | 23.2kg |
