Aluminum-Backed Industrial IP65 Luminaire A32
Aluminum-Backed Industrial IP65 Luminaire A32 features an extruded aluminum body with PC diffuser for superior heat dissipation. Ideal for factories, warehouses and outdoor industrial zones, it ensures durability in harsh conditions. Fanxstar offers customizable solutions with a 5-year warranty, tailored power/optics, and global certifications.
Heavy Duty Weatherproof Luminaires Key Features:
- IP65 & IK10 Protection
- Durable Aluminum Construction
- Quick Installation with terminal blocks
- No dark, Non-cracking, Anti-yellowing
- Long-lifespan with 5 years Warranty
- Multi-Functions options: motion sensor/Emergency Kits/0-10V Dimming
Durable Aluminum Sealed Vapor Light Description
As a professional manufacturer, we supply the Aluminum-Backed Industrial IP65 Luminaire A32 – a robust fixture engineered for longevity and reliability in harsh conditions. Constructed with durable aluminum housing and featuring IP65 & IK10 protection, it is completely resistant to dust, water jets, and physical impacts. Designed for quick installation using terminal blocks, its non-cracking, anti-yellowing optical system ensures consistent, high-quality illumination without dark spots over its long lifespan, backed by a 5-year warranty. This luminaire is ideal for factories, warehouses, parking garages, and logistics centers where durability, low maintenance, and consistent light output are critical.
The A32 solves core industrial challenges by providing a maintenance-free lighting solution that withstands moisture, vibration, and accidental impacts. Its versatile design supports multi-functional options including motion sensors for energy savings, emergency battery kits for safety compliance, and 0-10V dimming for adaptive lighting control. It seamlessly integrates into both new installations and retrofit projects, reducing downtime and operational costs.
Targeting industrial facility managers, electrical distributors, and OEM partners, Fanxstar delivers tailored lighting solutions that prioritize performance and value. We support bulk orders with flexible customization, ensuring each product meets specific project requirements while adhering to international certifications. For a detailed quote or technical consultation, contact our team to discuss how the A32 can enhance your lighting infrastructure.
High-Heat-Dissipation Triproof Lights Specification
Ordering Guide
Waterproof Led Batten | Trilamp A32
Type of Protection: IP65
Protection Class: I
Impact Protection: IK10
Beam Angle: 120°
80CRI Standard And 90CRI Optional
Made by Philips/Osram/Trodonic ENEC/TUV/CB certified Driver
Specifications using 5000K and subject to change. All parameters +/- 5%.
| Specifications data with 600mm length | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| A32-2FT20-MMK-X | 2’ LED Alu. Based Waterproof Batten, Voltage220-240Vac 50/60Hz, ZZ=20W, 80CRI, MM=27-65K, Sensor and emergency optional |
2700-6500K | 160 lm/W | |
| Specifications data with 1200mm length | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Pro | A32-4FT40-MMK-X | 4’ LED Alu. Based Waterproof Batten, Voltage220-240Vac 50/60Hz, ZZ=40W, 80CRI, MM=27-65K, Sensor and emergency optional |
2700-6500K | 160 lm/W |
| Specifications data with 1500mm length | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Pro | A32-5FT50-MMK-X | 5’ LED Alu. Based Waterproof Batten, Voltage220-240Vac 50/60Hz, ZZ=50W, 80CRI, MM=27-65K, Sensor and emergency optional |
2700-6500K | 160 lm/W |
| Specifications data with 1800mm length | ||||
| Version | Item No. | Description | MM=Color temp. | Luminous flux |
| Pro | A32-6FT60-MMK-X | 5’ LED Alu. Based Waterproof Batten, Voltage220-240Vac 50/60Hz, ZZ=60W, 80CRI, MM=27-65K, Sensor and emergency optional |
2700-6500K | 160 lm/W |
Inquire About A32 Alumnum Waterproof Light
Get Quotes for A32 Aluminum IP65 Luminaire – Durable, industrial-grade. Fanxstar’s bulk supply & warranty, elevate your project!

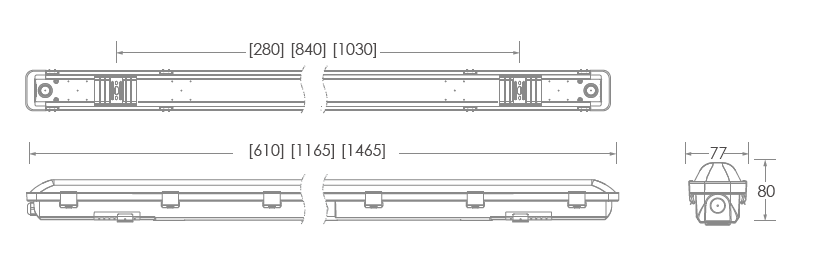

Aluminum Waterproof Batten Light Dimension
Alu Base Vapor Tight Fixture Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 610×75×80mm | 1.2kg | 630x80x85mm | 650x318x202mm | 6pcs | 8.3kg |
| 1165×75×80mm | 1.7kg | 1185x80x85mm | 1210x318x202mm | 6pcs | 11.5kg |
| 1465×75×80mm | 2.4kg | 1485x80x85mm | 1510x318x202mm | 6pcs | 15.9kg |
| 1765×75×80mm | 2.9kg | 1885x80x85mm | 1910x318x202mm | 6pcs | 19.2kg |
