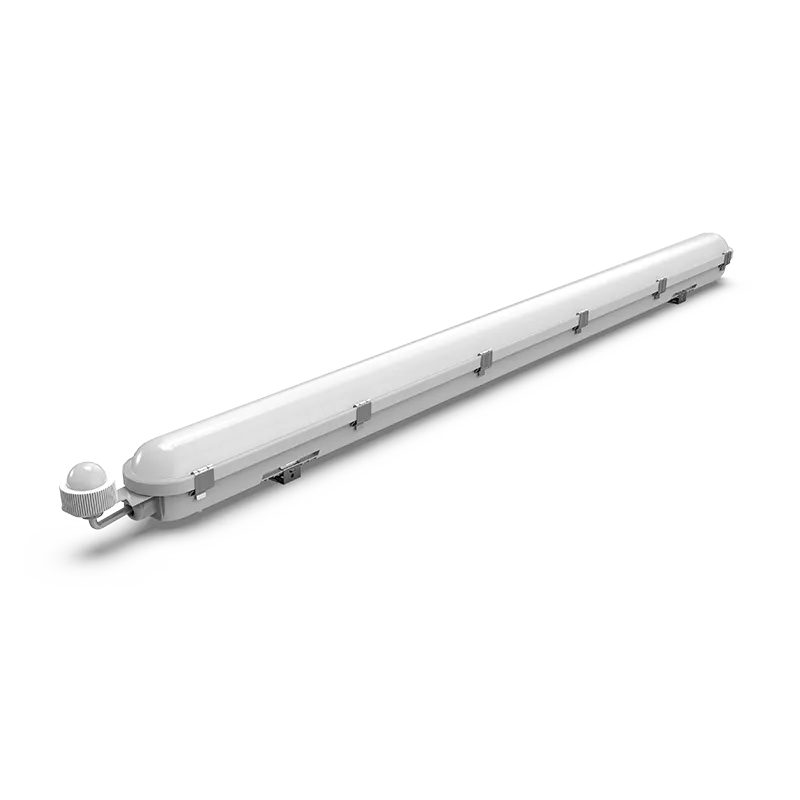

Motion Detector Luminaire A9 PIR
The Motion Detector Luminaire A9 PIR is manufactured with impact-resistant PC material, which boost its durability while maintaining lightweight portability. This robust build makes it ideally suited for applications in industrial factories, commercial parking lots, outdoor stadiums, retail superstores, and public transit hubs—all scenarios requiring reliable motion-sensing lighting in harsh or high-traffic environments.
As a professional supplier, Fanxstar goes beyond standard offerings to emphasize strong customization capabilities for this luminaire. While we ensure core performance with IP66 weatherproof ratings, 4KV surge protection, and a 5-year product warranty, we also tailor key features to match client needs
Motion Sensor PIR Weatherproof Batten Key Features and Benefits:
- External IP66 Waterproof PIR Sensor
- Various Lengths with 600/1200/1500/1800mm
- 140LPW/5 Years Warranty
- Remote Control/ Multiple Current
- 13M Highbay PIR Sensor for Industry 4.0 Factory
PIR Motion Detector Light Description
Fanxstar is a professional manufacturer and supplier of the Motion Detector Luminaire A9 PIR. Our Trilamp A9 Family is an original LED weatherproof luminaire series, exclusively designed to meet the stringent requirements of the UK and Middle East markets. The product is now available globally in multiple sizes ranging from 600mm to 1800mm, making it suitable for diverse application scenarios. We offer stable bulk supply and competitive wholesale prices to our global partners, ensuring efficient support for their market expansion.
The Trilamp A9 Family delivers outstanding durability and performance: upgraded to an IP66 rating for effective resistance against dust and water ingress, it operates reliably in ambient temperatures of up to 50°C. It also features flicker-free lighting and 4KV high-surge protection, ensuring consistent performance even in harsh environments. The A9-PIR variant comes equipped with an external IP66 high-bay PIR sensor (Model MS034-C), offering a 13-meter detection range, remote control capability, and a 5-year warranty for long-term dependability. In addition, the luminaire incorporates practical technological functions such as Manual Testing, Self Testing, and DALI-2 compatibility, delivering flexible management and control solutions for emergency lighting systems.
Waterproof PIR Sensor Luminaire Specification
| Item | Part Number | A9-2FTZZ-MMK-PIR | A9-4FTZZ-MMK-PIR | A9-5FTZZ-MMK-PIR |
| Description | External IP66 waterproof Highbay PIR Sensor Batten | |||
| Working | Mode of Operation | 0-10V/ 10VPWM | ||
| Input | Voltage&Frequency | 220-240Vac, 50/60Hz | ||
| Wiring Connection | 923 terminal blocks, Loop in and Loop out | |||
| Output | Light Source | High lumens SMD2835 | ||
| Color Temperature | MM=27-65 stands for 2700-6500K | |||
| Luminous Flux | 140lm/w±10% | |||
| Power Consumption | 10-20W | 20-40W | 40-60W | |
| Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | ||
| Multimode | Brightness Control, TUYA Bluetooth as options | |||
| Physical | Construction | Diffuser – high transmission opal polycarbonate, chassis – polycarbonate | ||
| Mounting | Surface mounted – ceiling / wall / Suspend | |||
| Colour | Gray RAL7035 | |||
| Dimensions L x W x H(mm) | 600x83x72 | 1200x83x72 | 1500x83x72 | |
| IP/IK Rating | IP66 & IK10 | |||
| Weight | 0.8kg | 1.5kg | 1.8kg | |
| Warranty | 5 years on product | |||
| Environment | Operating Temperature | -30° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CB/CE/UKCA/SAA | ||
| Accessories | Dimming Sensor | P/N: MC034C | ||
| Remote Control | MR001 | |||
Tailor the A9 PIR luminaire to your space, submit an inquiry
Dual Assurance of Customization & Warranty: A9 PIR Luminaire Personalized Service, Submit Inquiry for Your Exclusive Plan
LED PIR Sensor Light A9 Detail Display
PIR Sensor Datasheet
LED Tri-proof Batten Dimensions
Motion Sensor Luminaires Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600×83×72mm | 0.8kg | 700x85x78mm | 720x275x280mm | 9pcs | 8.6kg |
| 1200×83×72mm | 1.5kg | 1300x85x78mm | 1320x275x280mm | 9pcs | 15.8kg |
| 1500×83×72mm | 1.8kg | 1600x85x78mm | 1620x275x280mm | 9pcs | 19.2kg |
