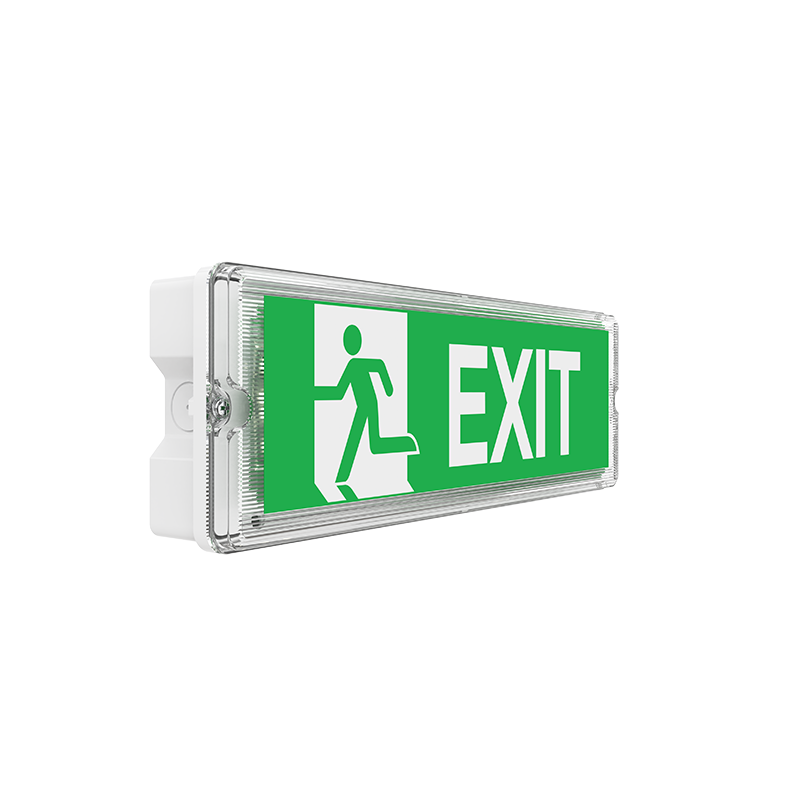

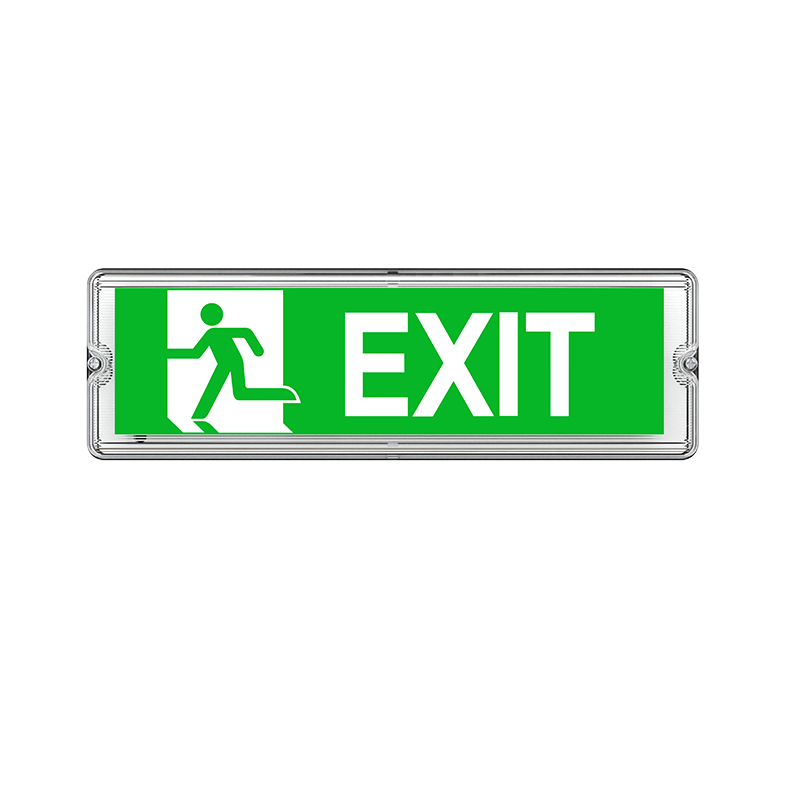

Self-contained Emergency Bulkhead Q1
The Multi-Functional Self-contained Emergency Bulkhead Q1 is a high-performance emergency protection product meticulously crafted by Fanxstar. It is manufactured using high-strength corrosion-resistant alloy steel as the base material, combined with flame-retardant, waterproof, and insulation composite materials. Our commitment ensures a reliable, compliant, and adaptable emergency lighting solution for project contractors, facility managers, and safety system integrators.
Emergency Lighting Bulkhead Key Feautres:
- SGS CB by Finland, CE-LVD&EMC verified
- 20mm Conduit entry
- High protection up to IP65&IK10
- High Lumens Output up to 450/650lm
- Maintained and non-maintained option
- Dual-mode with Manual Test and Self Test
- Repaceable and customizable pictogram

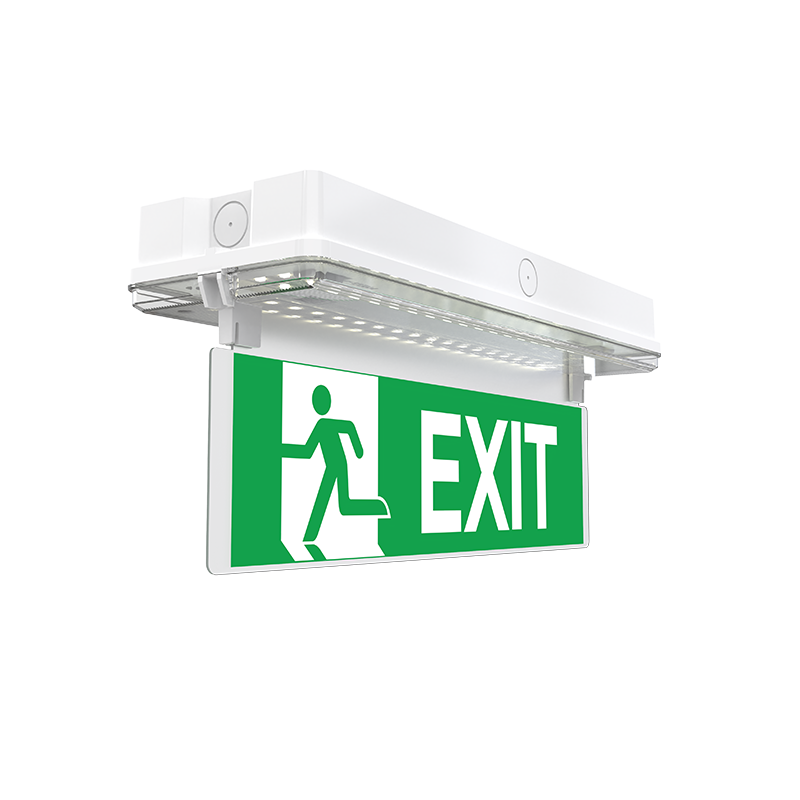

Acrylic signs can be added later as needed
Maintained LED Emergency Bulkhead
Fanxstar’s Self-contained Emergency Bulkhead Q1 is a certification-backed safety lighting solution for commercial/industrial use. With SGS CB (Finland) and CE-LVD&EMC verification, it meets strict international standards, reassuring global projects. Boasting IP65&IK10 protection and 20mm conduit entry for professional installation, it resists dust, water jets, and mechanical impacts. It targets property developers, facility managers, electrical contractors, and engineering firms needing reliable, code-compliant emergency lighting.
Delivering up to 450/650lm high lumens output, it offers maintained/non-maintained modes and dual Manual/ Self-Test functions, simplifying safety maintenance. Its key advantage is replaceable/customizable pictograms and optional later-added acrylic signs, adapting to tenant changes, rebranding, or evolving regulations without fixture replacement.
Widely used in public buildings, industrial plants, parking lots, hotels, and corridors, it integrates high output, flexible testing, and sign customization. This all-in-one solution reduces specification complexity, lowers long-term costs, and ensures continuous compliance for building operators/owners.
IP65 EM Bulkhead Technical Specifications
| Item | Part Number | Q1M33& | Q1S33& | Q1M53& | Q1S53& |
| Description | Self-contained LED Emergency IP65 Bulkhead | ||||
| Working | Mode of Operation | Maintained and non-maintained option | |||
| Input | Voltage&Frequency | 200-240Vac, 30mA|50/60Hz | |||
| Installation | 20mm Conduit entry | ||||
| Output | Light Source | High performance Lumileds 2835R, up to 102,000 hours | |||
| Luminous Flux | 200lm | 180lm | 450lm | 400lm | |
| Power Consumption | 1.5W | 1.3W | 3W | 2.7W | |
| Emergency Duration | 3 Hours | ||||
| Controls | Charger | 16hrs intelligent 3-stage charger with battery management system | |||
| Emergency | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | |||
| Testing Facility | Manual test, Self-test | ||||
| Indicators | Battery charger green LED, Function failure through red LED. | ||||
| Physical | Material | 850℃ Glow wire test Flame-retardant polycarbonate | |||
| Mounting | Surface mounted – wall or ceiling, Pendant mounted | ||||
| Finishing Color | White or Black | ||||
| Dimensions LxWxH | 350mm x 110mm x 48mm | ||||
| IP Rating | IP65 | ||||
| Weight | 0.93kg | ||||
| Warranty | 5 years on product, 4 years on battery | ||||
| Environment | Operating Temperature | 0° to 50°C | |||
| Relative Humidity | 0 to 95% | ||||
| Compliance | Standards | CB, CE | |||
| Electric class (1, 2, 3) | 2 | ||||
| Accessories | Replacement Battery Bodofor® LiFePO4 NTC | P/N: 1120-01|LiFePO4 IFpR19/66, 3.2V 2000mAh | P/N: 1140-01|LiFePO4 IFpR27/66, 3.2V 4000mAh | ||
Request Q1 Emergency Light Pricing
Reduce Emergency Lighting Maintenance Costs? Get Q1 Solution

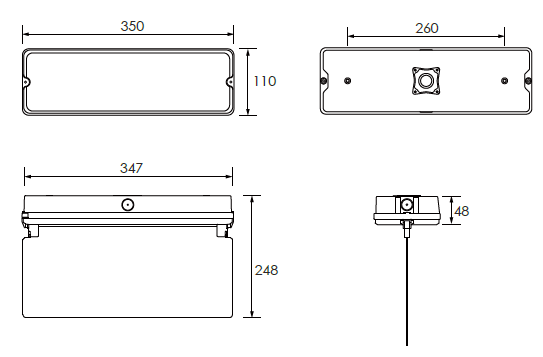

IP65 Emergency Bulkhead Light Dimension
LED Non-maintained Bulkhead packing list
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 350x110x48mm | 0.93kg | 330x110x107mm | 450x370x390mm | 12pcs | 12.7kg |
