Weatherproof Tempromary Lighting A7
Weatherproof Temporary Lighting A7 are produced with heavy-duty polycarbonate and applications are construction sites, event venues, mining and tunneling projects, warehouse temporary setups, and emergency outdoor lighting. Fanxstar provides IP66-rated waterproof and dustproof performance, robust IK10 impact resistance, and high-efficiency LED modules with 50,000-hour lifespan for reduced replacement frequency.
Waterproof Fitting Key Features and Benefits:
- Waterproof (IP66) & Impact-resistant (IK10)
- 20w/30w/40w Switchable Power & Output
- Tri-CCT Optional: 3000K/4000K/5700K
- 24-36-48VAC/DC Solution for Temporary Lighting
- Integrated with the optional microwave dimming motion sensor/Emergency Kits
Weatherproof LED Fittings Description

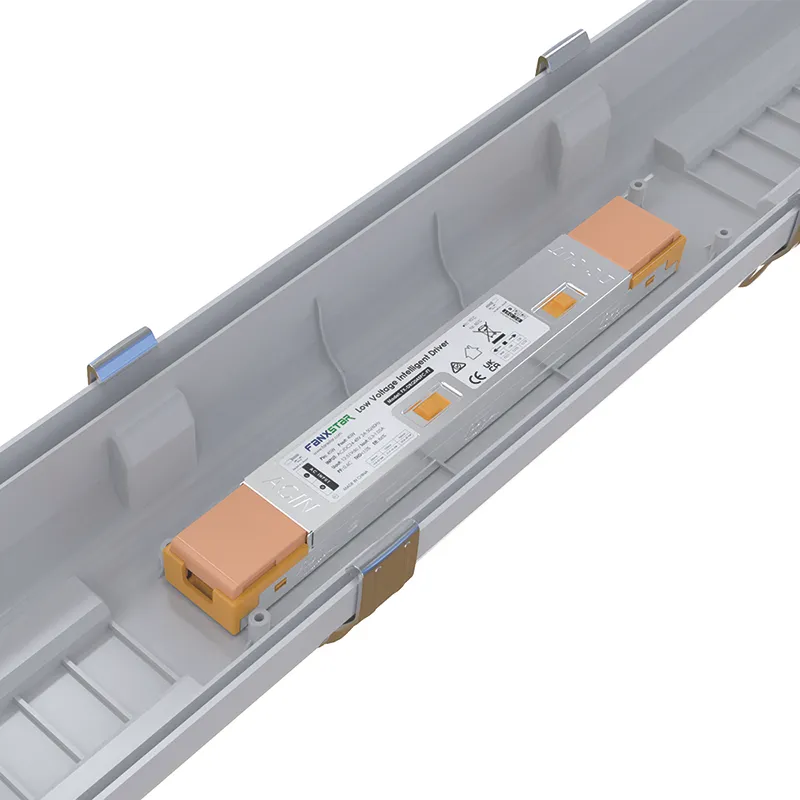

Weatherproof Temporary Lighting A7, a low-voltage waterproof fixture with IP66 and IK10 ratings, is now available for sales through Fanxstar—your trusted supplier of industrial lighting solutions. Its powerful performance stems from a low-voltage intelligent power supply, FX-DRQ045FC-FT, engineered by Fanxstar’s electronics team. This power supply supports an AC/DC24-48V input range, compatible with most industrial and household energy storage systems, boosting energy conversion efficiency, reducing power consumption, and enhancing energy savings.
In addition, Trilamp A7 shares the same dip switch-adjustable power and color temperature functions as the A16 model, addressing inventory management challenges for distributors and simplifying supply chain operations. Optional 5.8G microwave induction modules and emergency batteries enable it to perform like traditional waterproof lamps, with lighting ON/OFF and brightness control—making it ideal for low-voltage lighting applications in large cold storage facilities, explosion-proof environments, and more.
As a professional manufacturer, Fanxstar also offers OEM/ODM services and customized solutions for this model, ensuring it meets specific project requirements while maintaining reliable supply for bulk orders.
Weather-proof Light Specification
| Item | Part Number | A7-2FT20-MMK-LV | A7-4FT30-MMK-LV | A7-5FT40-MMK-LV |
| Description | Low-voltage LED weatherproof Batten Light | |||
| Working | Mode of Operation | Low-voltage, 10VPWM | ||
| Input | Voltage&Frequency | 24-36-48Vac/dc , 60Hz | ||
| Wiring Connection | PA14/16 terminal blocks, Loop in and Loop out | |||
| Output | Light Source | High lumens SMD2835 | ||
| Color Temperature | MM=27-65 stands for 2700-6500K or Tri-CCT(3000K/4000K/5700K) | |||
| Luminous Flux | 140lm/w±10% | |||
| Power Consumption | 20W | 30W | 40W | |
| Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | ||
| Multimode | Brightness Control | |||
| Physical | Construction | Diffuser – high transmission opal polycarbonate, chassis -polycarbonate | ||
| Mounting | Surface mounted – ceiling / wall /suspended | |||
| Colour | Gray RAL7035 | |||
| Dimensions L x W x H(mm) | 600x95x83 | 1200x95x83 | 1500x95x83 | |
| IP/IK Rating | IP66 & IK10 | |||
| Weight | 1.2kg | 2.2kg | 2.8kg | |
| Warranty | 5 years on product | |||
| Environment | Operating Temperature | -30° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CE/UKCA/RCM | ||
| Accessories Optionals | Dimming Sensor | P/N: A7-LS: MS010/MS010R/MS010ER | ||
| Remote Control | MR002 | |||
Withstand Any Job Site: Get Your Quote for IP65 Temporary Lighting

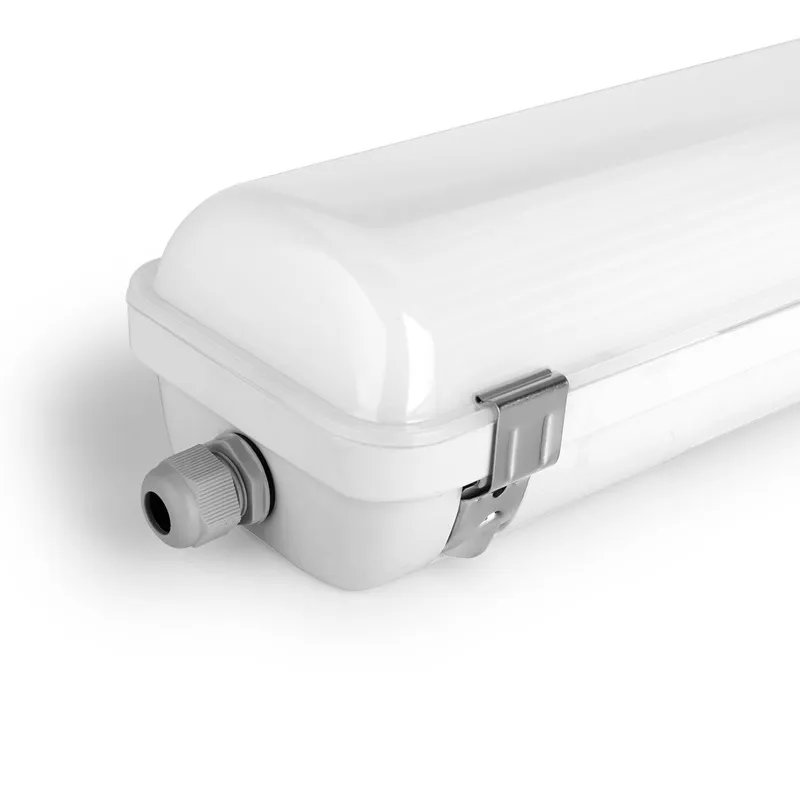

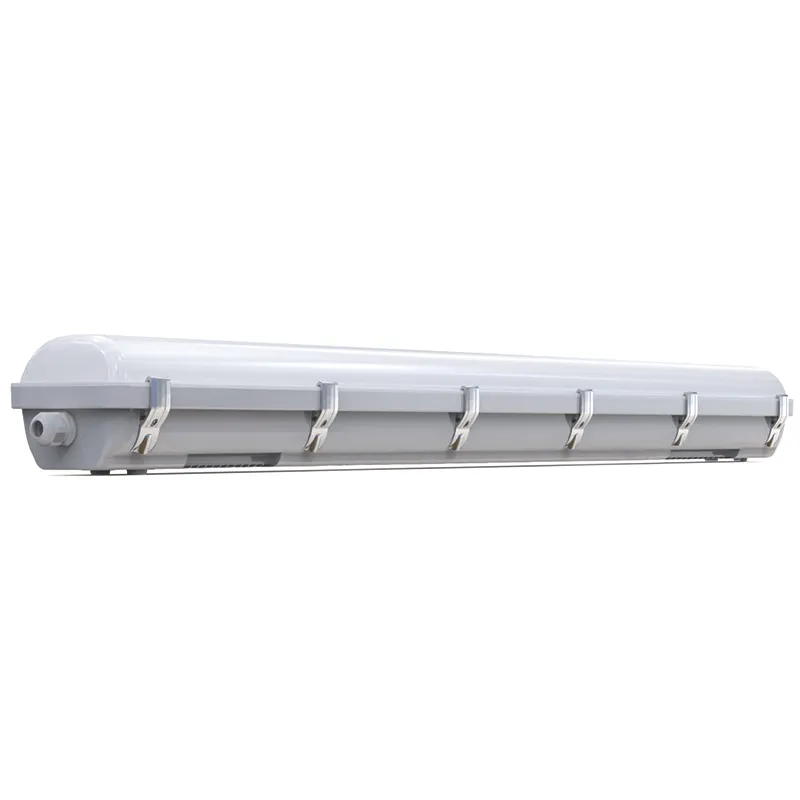

Weatherproof Tempromary Lighting A7 Detail Display

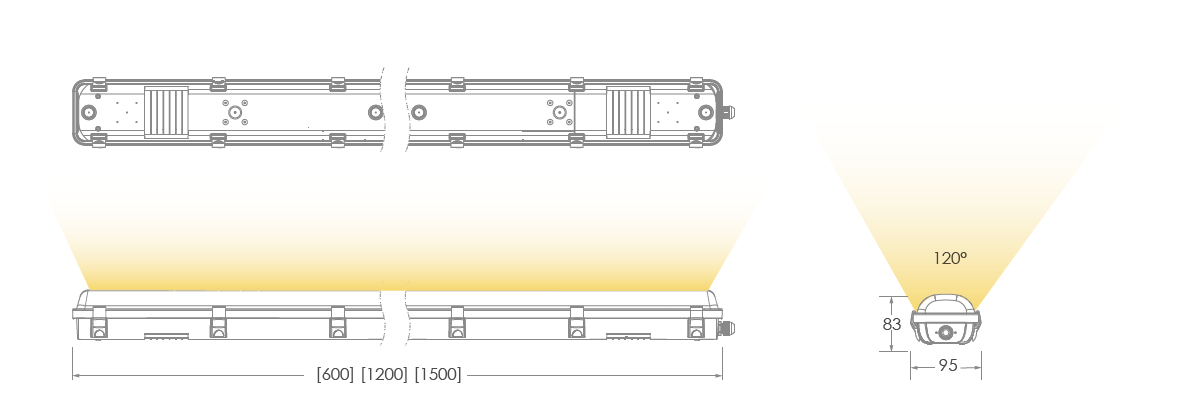

Led Waterproof Batten Light Dimensions
Tri-proof Batten Lights Packing List
| Single Size (L*W*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| 600x95x83mm | 1.2kg | 660x100x90mm | 680x325x290mm | 9pcs | 11.9kg |
| 1200x95x83mm | 2.2kg | 1260x100x90mm | 1280x325x290mm | 9pcs | 18.7kg |
| 1500x95x83mm | 2.8kg | 1560x100x90mm | 1580x325x290mm | 9pcs | 25.6kg |
