Interchangeable Lens LED Emergency Spotlights X9
The Interchangeable Lens LED Emergency Spotlights X9 are manufactured with 850°C glow-wire test certified, flame-retardant polycarbonate, ensuring ultimate safety and durability for demanding applications in industrial plants, commercial complexes, and public facilities. Fanxstar provides a reliable safety solution featuring versatile beam options, robust construction for harsh environments, and compliance with rigorous international standards, delivering exceptional value and peace of mind.
Dual-Mode Emergency DownLights Key Feautres and Benefits:
- Hole cutout size for 50mm Min
- High quality Lumileds HL2X-V LED chips 6W
- Push-wire terminal block for easy installation

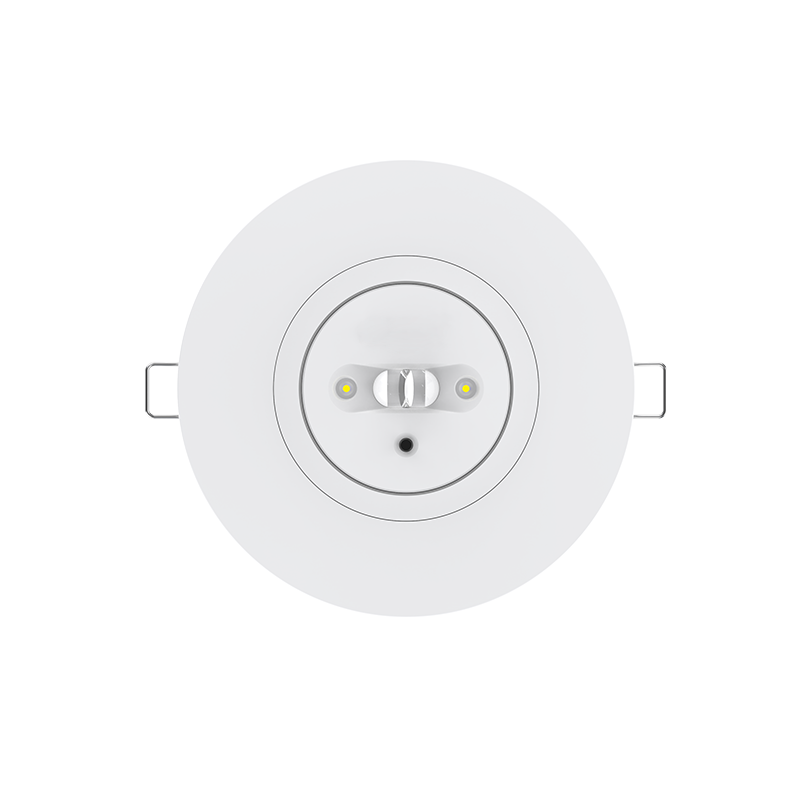

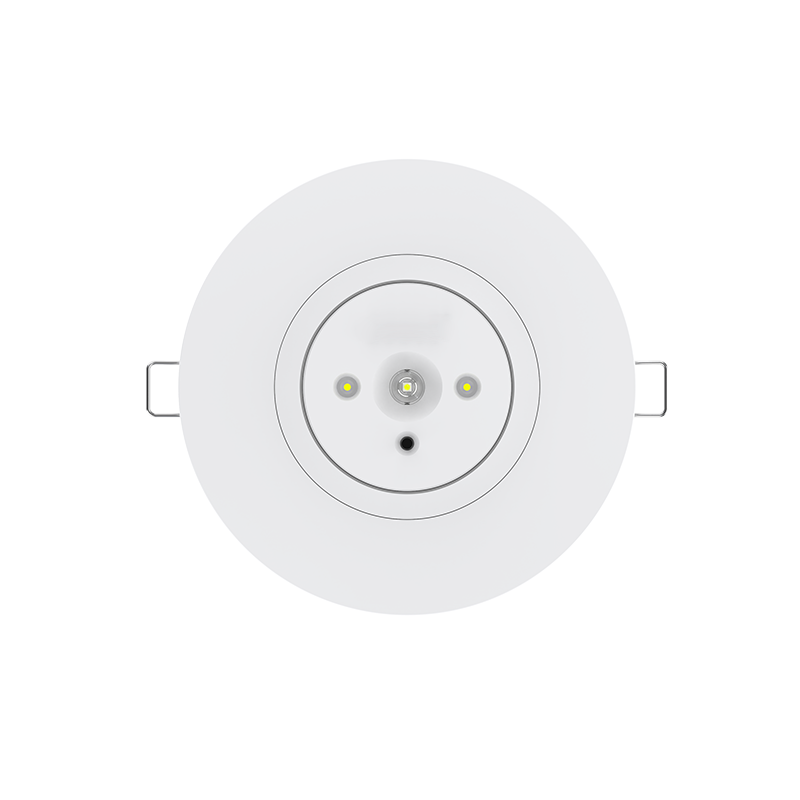

- Interchangeable optical circle & corridor lens
- Self-contained with two options: manual test, self-test
- High quality reliable smart replaceable battery: LiFePO4 3.2V 1600mA
Self-contained Emergency Spotlights Description
Interchangeable Lens LED Emergency Spotlights X9 – Fanxstar, a professional manufacturer and exporter, supplies this premium fixture for bulk sale. Core features include 6W high-quality Lumileds LED chips for stable brightness, push-wire terminal block enabling easy installation, and interchangeable optical circle & corridor lens for versatile lighting. Available in white and black, it caters to diverse aesthetic and functional demands of global clients.
With a self-contained design, it offers two test modes: manual test and self-test. Equipped with a reliable smart replaceable LiFePO4 3.2V 1600mA battery, it ensures long-lasting emergency performance. The minimum hole cutout size is 50mm, fitting standard installation scenarios. Widely applied in commercial buildings, industrial workshops and public facilities, it solves emergency lighting needs during power outages, guaranteeing safe evacuation and operational continuity.
Target customers include distributors, wholesalers, dealers and property management agencies worldwide. As a trusted factory, we provide wholesale supply with strict quality control. This spotlight combines durability and practicality, making it ideal for bulk procurement in construction, facility maintenance and commercial property sectors.
Non-maintained EM Downlight Specifications
| Item | Part Number | X9D23W |
| Description | Xlite 2W LED Emergency Downlight Dual Test | |
| Working | Mode of Operation | Non-Maintained |
| Input | Voltage&Frequency | 220-240Vac, 30mA|50/60Hz |
| Installation | Complete with Push-wire Terminal block | |
| Output | LED Source | Lumileds HL2X-V 1x6W |
| Luminous Flux | 160lm±10% | |
| Power Consumption | 2.0W(Standy), 1.1W(Emergency) | |
| Emergency Duration | ＞ 180minutes | |
| Controls | Charger | 24hrs intelligent 3-stage charger with battery management system |
| Emergency | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit |
| Testing Facility | Self test and Manual test | |
| Indicators | Battery charger green LED, Function failure through red LED. | |
| Physical | Material | 850°C Glow wire test Flame-retardant polycarbonate |
| Mounting | Recessed – ceiling, 50mm cut-out | |
| Finishing Color | White or Black | |
| Dimensions L x W x H | Disc: 75mm diameter, Height: 34mm | |
| IP Rating | IP20 | |
| Weight | 165g | |
| Wanrranty | 5 years on product, 4 years on battery | |
| Environment | Operating Temperature | 0° to 50°C |
| Relative Humidity | 0 to 95% | |
| Compliance | Standards | CE/UKCA, EN 55015, EN 61347, EN 60598-2-2 |
| Electric class (1, 2, 3) | 2 | |
| Accessories | Replacement Battery | P/N: 1116-01|Bodofor® 18650 LiFePO4 3.2V 1600mA 01 |
Get Your Custom Quote for Interchangeable Lens X9 Spotlights
Upgrade to versatile safety. Our X9 spotlights, with 850°C flame-retardant housing and interchangeable lenses, adapt to any emergency. Get your site-specific quote in minutes.
Rechargeable Emergency Downlight Dimension
Emergency Downlights Packing List
| Single Size (D*H) | N.W/PCS | BOX Size (L*W*H) | CTN Size (L*W*H) | PCS/CTN | G.W/CTN |
| φ75x34mm | 0.165 | 250x210x45mm | 520x450x240mm | 20pcs | 5.54kg |
